33
EN

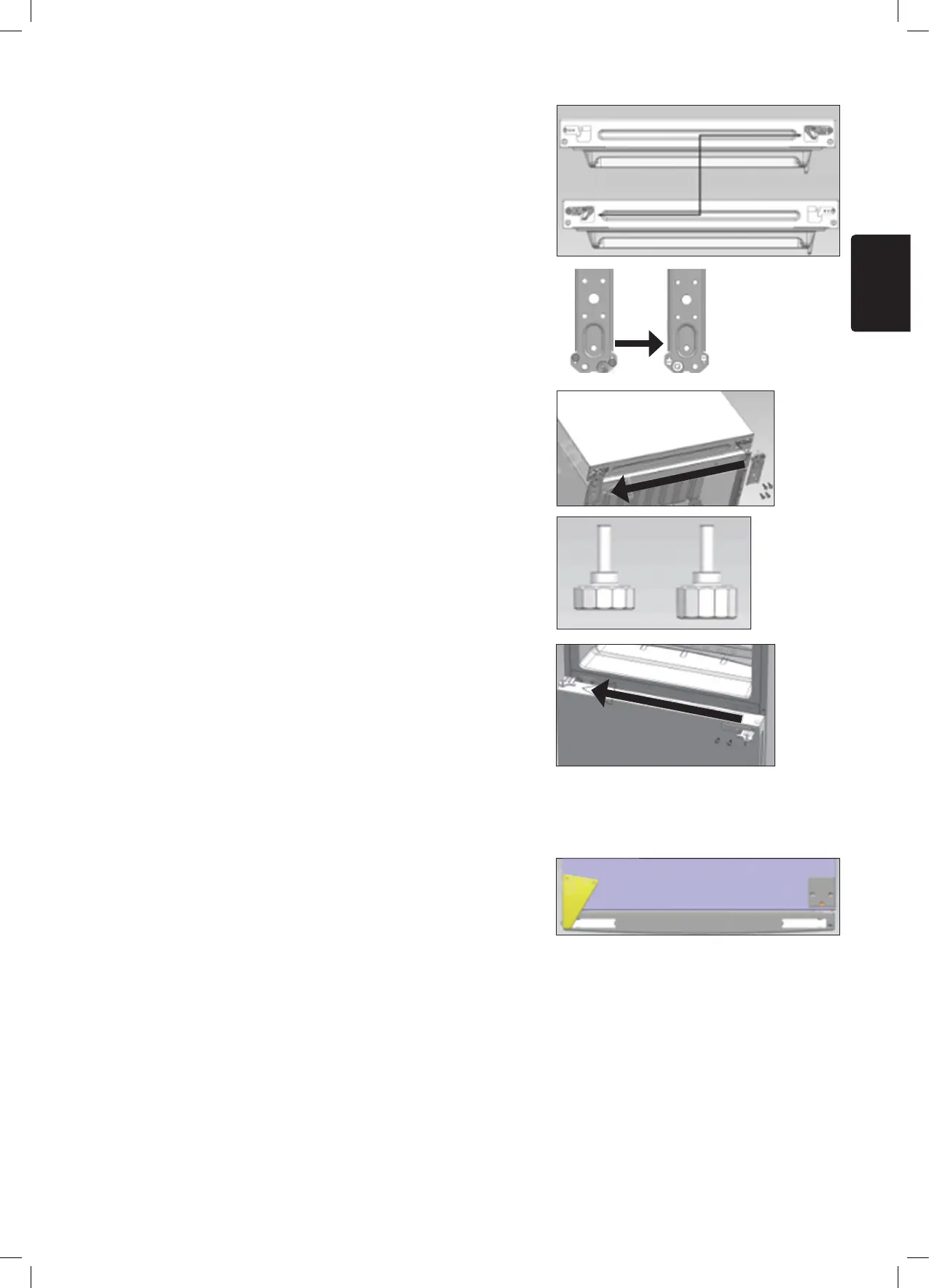

11. Remove the screws of the stopper, as shown in the gure
below, and install it on the other side of the door.
12. Remove the shaft and the two stoppers from the lower hinge
and install it in the position shown in the gure below.
13. Install the fridge door and freezer door on the other side.
14. Remove the adjustable front stand, as shown below. Then
install the lower hinge on the other side of the appliance and
tighten the screws.
15. Install the shorter adjustable stand at the front on the side
where the lower hinge is located. By turning the stand, you
can adjust the height on this side of the appliance until it is
even.
16. Attach the freezer door, rotate the centre hinge 180 degrees
and then install it on the other side of the appliance. Attach
the centre hinge with the 3 corresponding screws.
17. Attach the fridge door and install the top hinge on the
other side of the appliance. Attach the top hinge with the 4
corresponding screws. Also attach the loop of the earthing
cable with one of the 4 screws. Then connect the cable
connection. Attach the cover of the top hinge with a screw.
3.3 REPLACING THE LED LIGHTING
This product contains a LED light source of energy efciency class G. Replacement or maintenance of the LED
lighting must be carried out by the manufacturer, its maintenance representative or an equivalent qualied person.
18. Install the gap cover on the other side of the appliance and
tighten the screw.
Finally, check that the doors are correctly aligned and that they close properly on all sides. If necessary, adjust the
front stands for perfectly horizontal positioning of the appliance.
