INSTALL OR REPLACE GOBOS
WARNING: Remove power from luminaires before performing maintenance. Gobos may be HOT after opetion.
Allow to cool before handling.
To replace a rotating gobo:
Step 1. Remove power from luminaire.
Step 2. Remove top and bottom head cover by loosening four crossed Slot screws to access the gobo wheel.
Step 3. If removing gobos via bottom of head assembly, undo fan tray assembly with thumb screw to access.
Step 4. Rotate desired gobo wheel until required gobo position is accessible.
CAUTION: Do not push on gobo glass. Press on gobo carrier only.
CAUTION: Do not touch gobos with bare fingers. Wear cotton gloves or other covering while replacing. To
clean, refer to CARE AND MAINTENANCE on page 34.
Step 5. Remove current gobo by carefully pressing on edges of gobo carrier with fingers, pressing gobo to-
ward front end of luminaire (toward lens), and out of wheel.
Step 6. Install new gobo as follows:
a. Place the gobo holder on a clean, flat work surface with the teeth facing upwards. The gobo is
held in place in the gobo holder by a spring. Taking care to avoid scratching or applying pressure
to the gobo, lever the end of the spring out, remove the spring and then lift the gobo out of the
gobo holder.
b. Hold the gobo with the dark side facing upwards towards the teeth in the gobo holder. Match up
the alignment marks (arrowed) in the gobo and gobo holder. Lay the new gobo flat in the gobo
holder.
c. Insert gobo carrier into wheel, ensuring that carrier snaps into place.
Step 7. Rotate desired gobo wheel until required gobo position is accessible

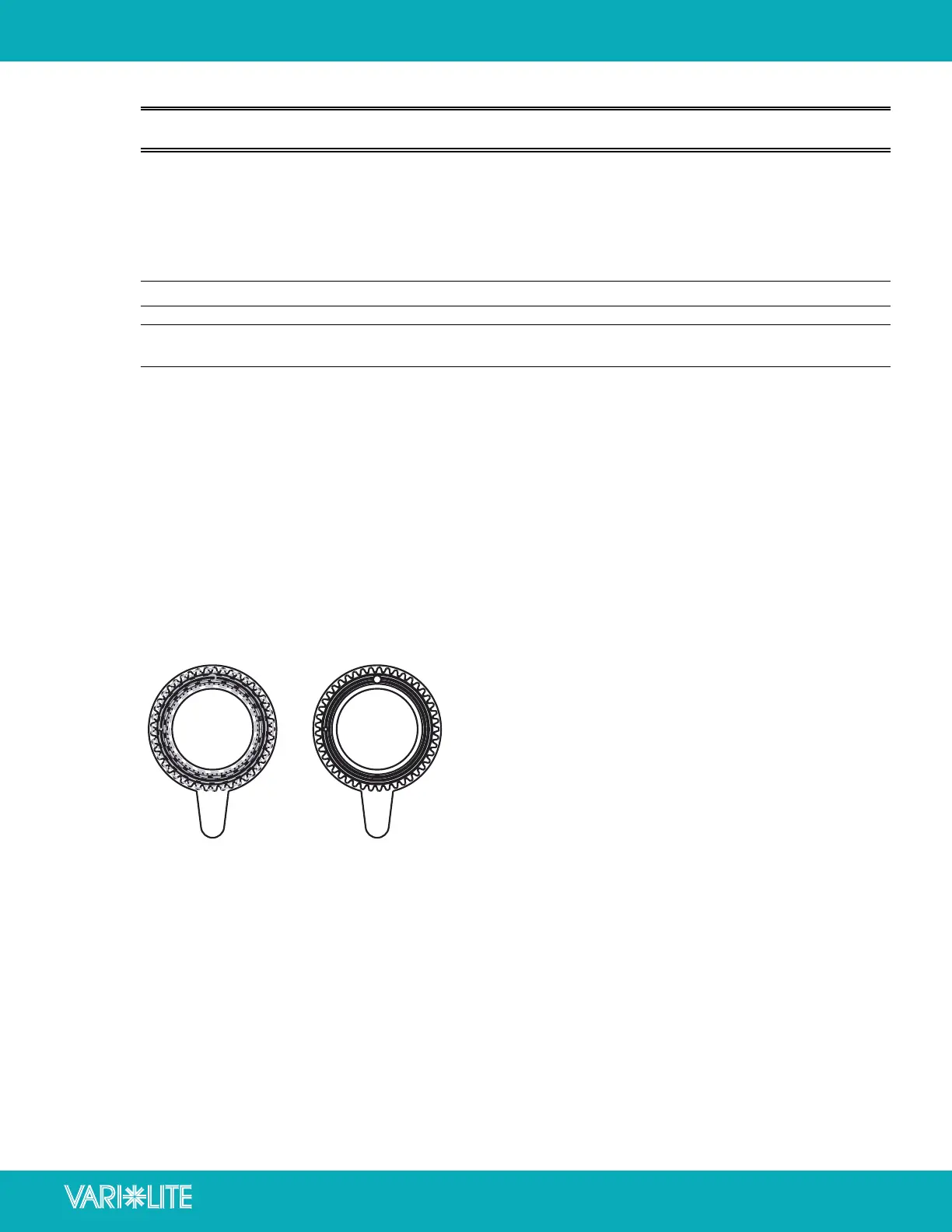

Carriers
Gobo Carrier
63581988
Gobo Carrier with Magnet
63581984
