user manual
www.vari-lite.com
VL800 EVENTPAR RGBA
9
DATA CABLE - DMX512/RDM
The luminaire is equipped with two, 5-pin XLR connectors for DATA IN and DATA THRU (out) applications.
DATA IN requires a 5-pin, female XLR connector and DATA THRU requires a 5-pin, male XLR connector. When
purchasing or constructing data cable, it is important that not only the correct cable type be used, but also
quality cable to ensure a reliable DMX512 system. All cable must be IP65 rated or higher. Your cabling should
meet the following USITT DMX specification requirements:
• Suitable for use with EIA485 (RS485) operation at 250k baud
• MUST BE IP65 RATED OR HIGHER - see below
• Characteristic impedance 85-150 ohms, nominally 120 ohms
• Low capacitance
• Two twisted pairs
• Foil and braid shielded
• 24 AWG min. gauge for runs up to 1000 feet (300m)
• 22 AWG min. gauge for runs up to 1640 feet (500m)
NOTE: Microphone type cable and other general purpose, two-core audio or signal cable are not suitable for
use with DMX512.
Refer to the USITT Recommended Practice for DMX512 guide for additional information regarding DMX512
systems.
The XLR 5-pin connectors should be wired as follows:
reCOmmenDeD CaBle TYPes/manuFaCTurers
These are only a few of the suitable cable types. Any quality EIA485, twisted pair, 120 ohm, shielded cable will
also work. Refer to TABLE 2.

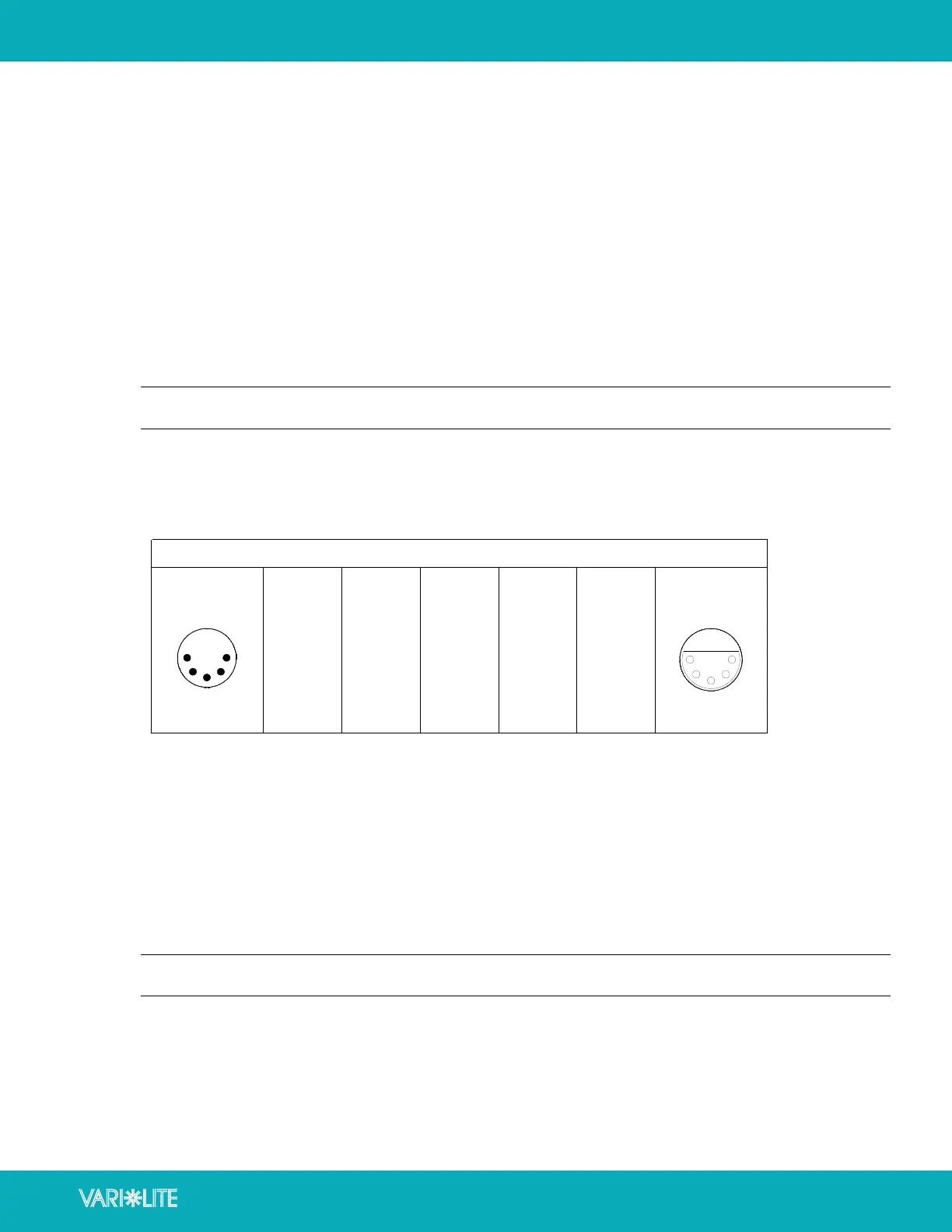

Pin/Wire Code to XLR Connectors
Data Thru
Cable Pinout
Male Conn.
Pin 1
Foil &
Braided
Shield
Pin 2
1st
conductor
of 1st
twisted
pair
Data (-)
Pin 3
2nd
conductor
of 1st
twisted
pair
Data (+)
Pin 4
1st
conductor
of 2nd
twisted
pair
Data (-)
Pin 5
2nd
conductor
of 2nd
twisted
pair
Data (+)
Data In
Cable Pinout
Female Conn.
1
2
3
4
5
1
2
3
4
5
IP65 CONNECTORS
IP65 rated connectors can include, but are not limited to
• NEUTRIK TOP Series
• Seetronic W Series
NOTE: Check cable o-ring and rubber seals prior to use. If damaged or missing required lubricant then the cable
should not be used.
