VL800 EVENTPAR RGBA
18
MENU FUNCTIONS
To access the menu, touch the MENU button. Then use the ARROW buttons to navigate through the menu
items in the list. Touch ENTER to select. Repeat as needed to move through the menu lists. Once you have
reached your desired selection, use the ARROW buttons to choose or set desired setting and then touch ENTER
to store. Touching the MENU button will return to the previous menu level.
The VL800 EVENTPAR RGBA Display and Menu System provides local control for accessing the
following fixture’s settings:
• Address – to set the DMX address
• Configure – various parameter settings, set luminaire ID
• DMX – change the map, view incoming DMX, invert pan/tilt
• Fixture – fixture status, recalibrate, reboot, software version, view fixtures hours, service, etc.
• Test - test functions of parameters
• Manual Preset – edit and set the manual presets within the fixture
The menu system is controlled at the Menu Display available at the enclosure input panel. If there are multiple
luminaires in a system, any settings or changes would need to be made at each Menu as desired

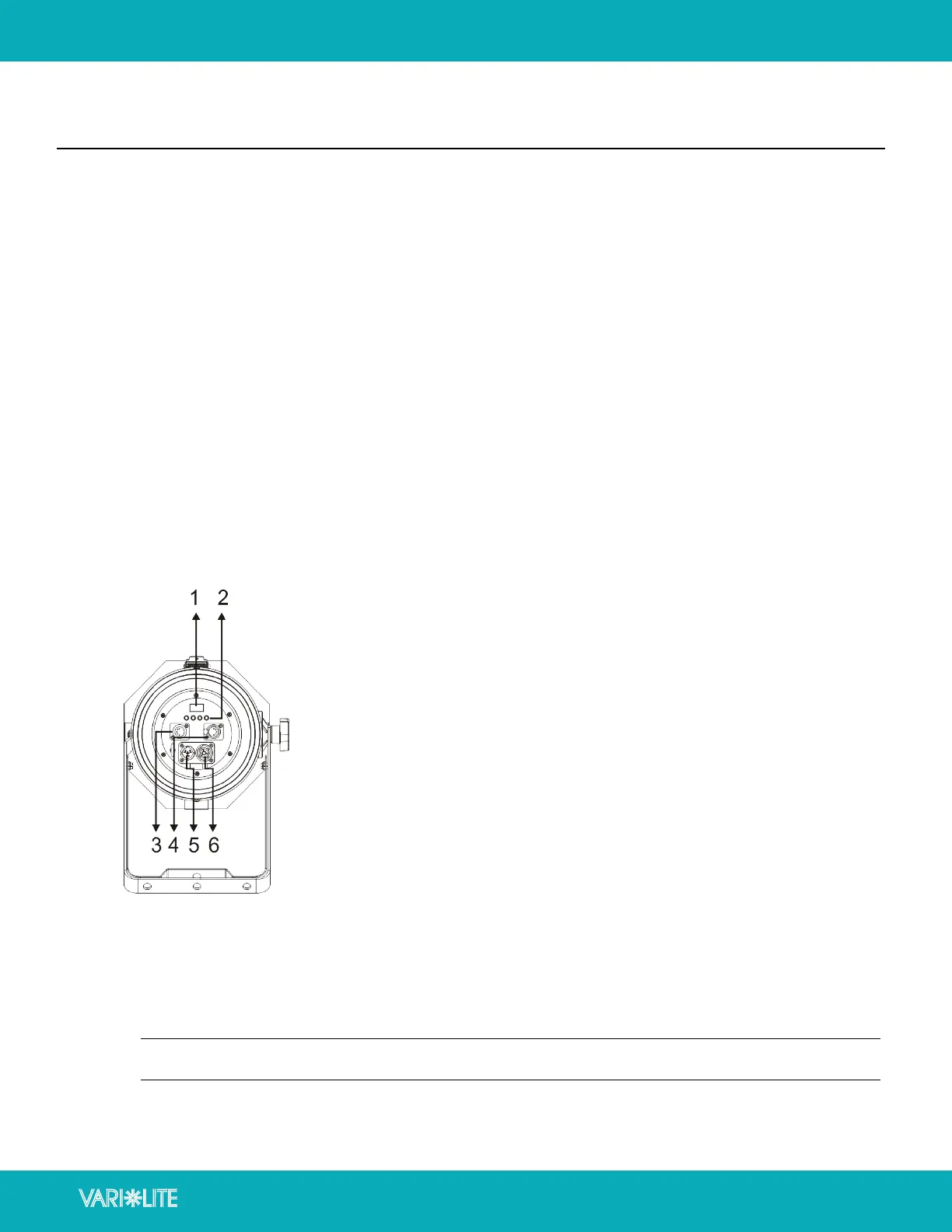

1 Display. Shows menu and selected functions
2 Buttons.
MENU To select the programming functions
UP To go backward in the selected functions
DOWN To go forward in the selected functions
ENTER To confirm the selected functions
3 DMX/RDM input.
Connectors for DMX 512 operation, 5-pin XLR cable to link the DMX console
4 DMX/RDM thru. Connectors for DMX 512 operation, 5-pin XLR cable to link the next unit
5 Power Input. Connects to supply power.
6 Power Thru. Connects to the next fixture.
CONTROL PANEL
NOTE: Menu functions are subject to activation in subsequent software releases. Please check software
release notes for details
