user manual
www.vari-lite.com
VL3600 PROFILE IP
41
5 OPeraTIOn
MENU FUNCTIONS

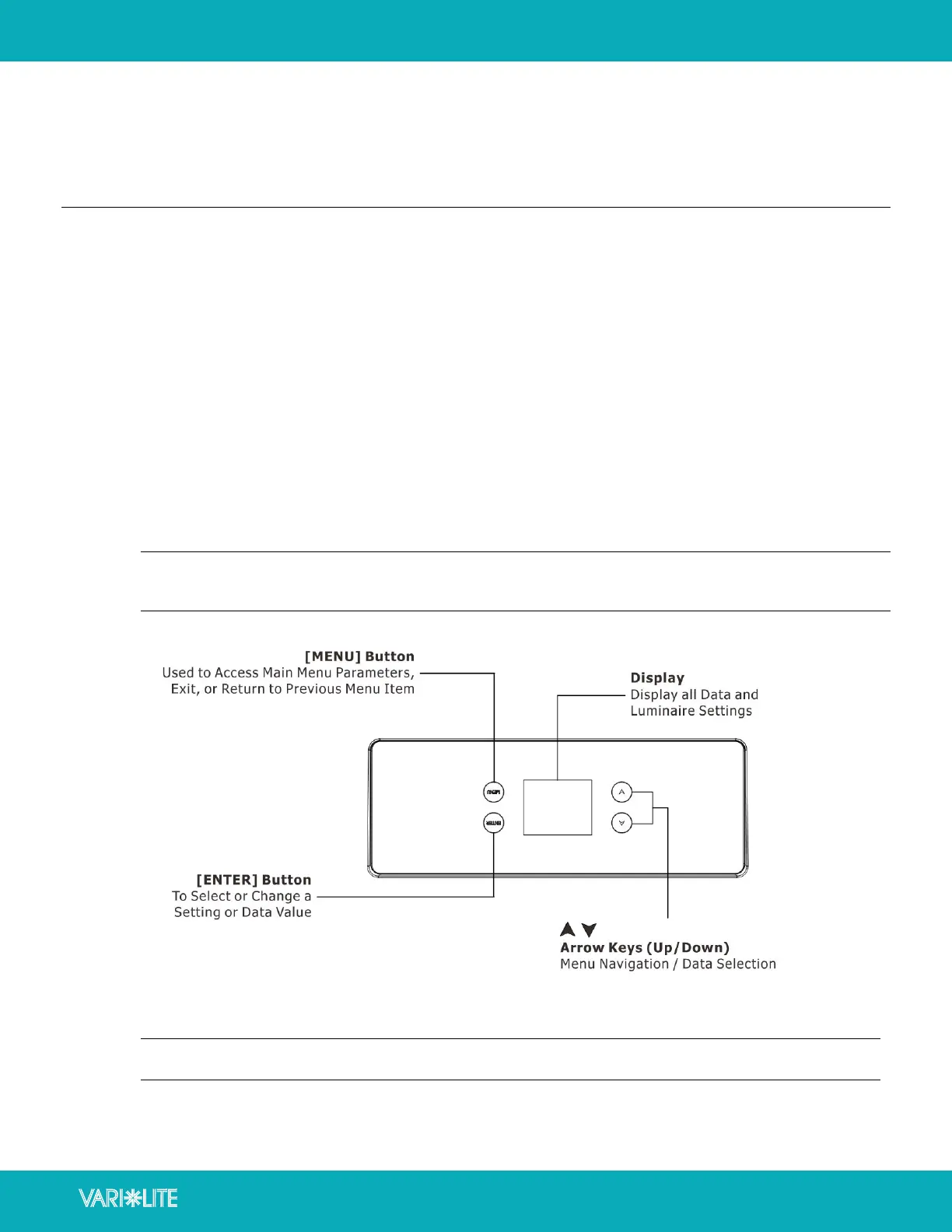

To access the menu, touch the MENU button. Then use the ARROW buttons to navigate through the menu
items in the list. Touch ENTER to select. Repeat as needed to move through the menu lists. Once you have
reached your desired selection, use the ARROW buttons to choose or set desired setting and then touch ENTER
to store. Touching the MENU button will return to the previous menu level.
The VL3600 Profile IP Display and Menu System provides local control for accessing the
following fixture’s settings:
• Address – to set the DMX address
• Configure – various parameter settings, set luminaire ID
• DMX – change the map, view incoming DMX, invert pan/tilt
• Fixture – fixture status, recalibrate, reboot, software version, view fixtures hours, service, etc.
• Test - test functions of parameters
• Manual Preset – edit and set the manual presets within the fixture
The menu system is controlled at the Menu Display available at the enclosure input panel. If there are multiple
luminaires in a system, any settings or changes would need to be made at each Menu as desired
NOTE: The luminaire has an auto lock function on the Menu Display. To unlock, while touching the ENTER but-
ton, touch UP -> DOWN -> UP -> DOWN if unit is sitting. If hanging, while touching the ENTER button, touch
DOWN -> UP -> DOWN -> UP.
NOTE: Menu functions are subject to activation in subsequent software releases. Please check software
release notes for details
