uSer manuaL
www.Vari-Lite.com
VL2600 SerieS
9

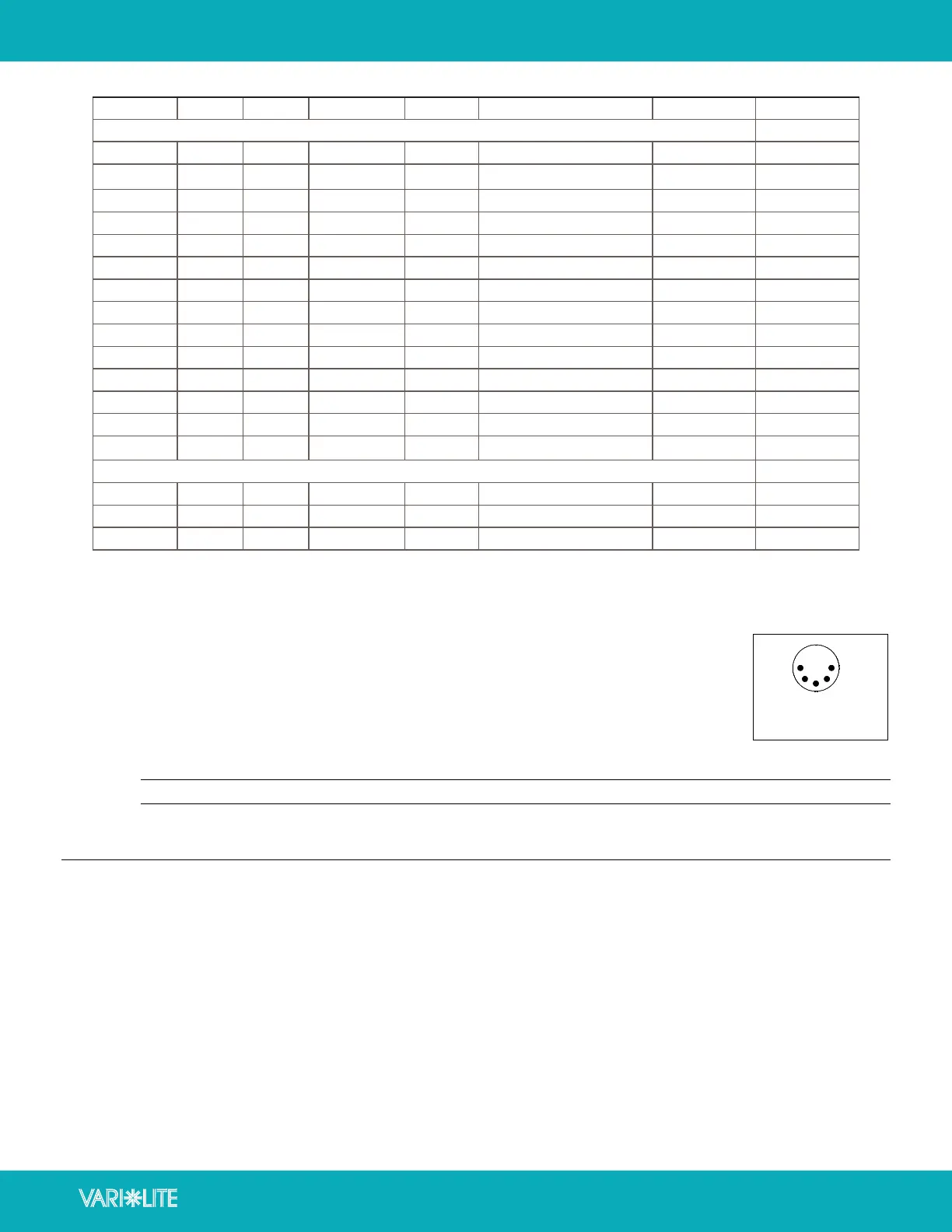

TAbLE 2. RECOMMENDED CAbLES
tYPe PairS ZΩ* JaCKet aWG USe teMP (°f) teMP (°C)
BeLDeN CaBLeS
1215A 2 150 PVC 26 IBM Type 6 Oce cable 75 24
1269A 2 100 PTFE 22 (solid) High Temp, Plenum cable 200 93
8102 2 100 PVC 24 UL2919 80 27
8132 2 120 PVC 28 UL2919 80 27
8162 2 100 PVC 24 UL2493 60 16
82729 2 100 PTFE 24 High Temp, Plenum cable 200 93
88102 2 100 PTFE 24 High Temp, Plenum cable 200 93
89696 2 100 PTFE 22 High Temp, Plenum cable 200 93
89729 2 100 PTFE 24 High Temp, Plenum cable 200 93
89855 2 100 PTFE 22 High Temp, Plenum cable 200 93
9729 2 100 PVC 24 UL2493 60 16
9804 2 100 PVC 28 UL2960 60 16
9829 2 100 PVC 24 UL2919 80 27
9842 2 120 PVC 24 UL2919 80 27
ProPeX CaBLeS
PC224P 2 110 Polyurethane 22 Heavy Duty and Portable 105 41
PC224T 2 110 PVC 22 UL2464 105 41
PC226T 3 110 PVC 22 UL2464
* Characteristic impedance
TERMINATION CONNECTOR
A XLR termination connector is required at the last luminaire (or “far end of the line”)
to prevent signal reflections. Signal reflections may cancel out the signal at certain line
lengths, resulting in errors. The terminator is also necessary for software downloads and
running tests on multiple luminaires. To construct your own connector, you will need the
following components:
• 5-pin, male XLR connector.
• Two 1/4W 5% 120 ohm resistors.
NOTE: A male termination connector is available as an accessory from Vari-Lite.
haNGiNG the fiXtUre
The VL2600 can be hung horizontally or vertically from any structure designed to work with the type of load
created by this moving luminaire. Two mounting truss hooks or other mounting hardware are required. Many
compatible truss hooks are available from dierent manufacturers for your particular needs.
A minimum of two hooks per luminaire is required. If mounting method does not use truss hooks, two attach-
ment points, per luminaire, are required.
Solder resistors across
pins 2 & 3, and 4 & 5
1
2
3
4
5
