uSer manuaL
www.Vari-Lite.com
VL2600 SerieS
7
CUrreNt VerSUS VoLtaGe
taBle 1 provides the luminaire’s current draw at specific voltages. Total luminaire current is calculated with the
lamp on and all motors sequencing.
1

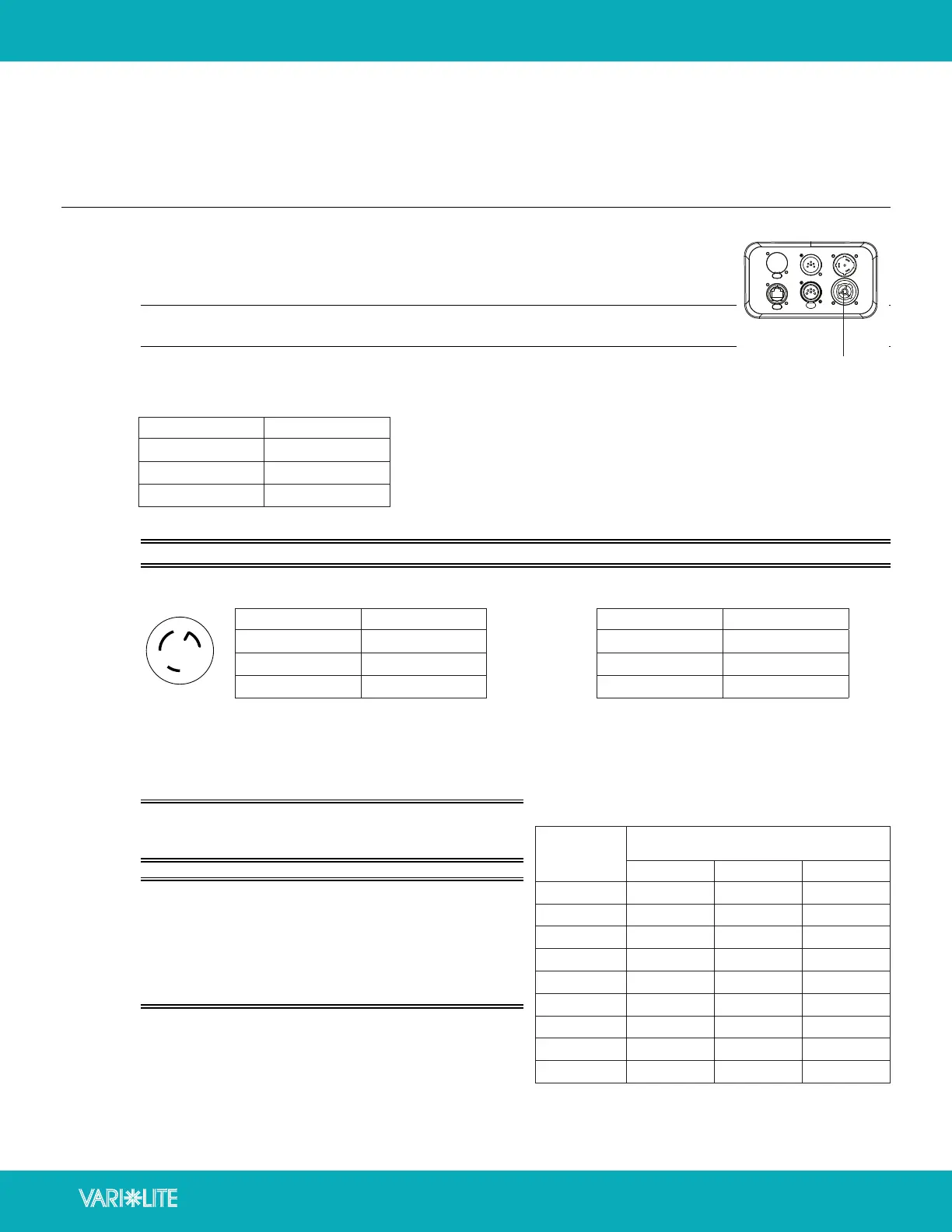

INSTALLATION & SETUP
PoWer aND Data CaBLiNG reQUireMeNtS
CoNNeCtiNG PoWer
This fixture requires standard AC power distribution from 100VAC-240 VAC, 50/60 Hz.
Current required depends on the AC supply voltage and product model.
NOTE: The mating Neutrik® powerCON® True1 connector is supplied; however, you will
need to purchase or construct a cable appropriate for your application.
Depending on the application, the luminaire’s AC input cable may require a dierent
connector. If required, install a new connector meeting your requirements using the
following wire color code reference:
WARNING: DO NOT connect to three-phase service in countries with 240V power.
AC power input
WIRE* CONNECTION
Green/yellow AC ground
Blue AC neutral
Brown AC line
* International (Harmonized) Standard
AC VOLTAGE
AT 60HZ
TOTAL LUMINAIRE CURRENT
(MOTOR + LAMP CURRENT)
PROFILE SPOT WASH
100V 7.8A 7.5A 7.1A
110V 7.0A 6.7A 6.3A
120V 6.4A 6.1A 5.8A
130V 5.9A 5.6A 5.3A
200V 3.8A 3.6A 3.4A
210V 3.6A 3.5A 3.3A
220V 3.4A 3.3A 3.1A
230V 3.3A 3.2A 3.0A
240V 3.2A 3.1A 2.9A
TAbLE 1. CURRENT VS. VOLTAGE (550W LAMP)
CONNECTION PIN
AC neutral X
AC line Y
Ground (earth) G
X
Y
G
CONNECTION PIN
Phase 1 X
Phase 2 Y
Ground (earth) G
For single-phase power at 240 volts RMS: For three-phase power at 200 volts RMS:
WARNING! It is the responsibility of the user to ad-
equately protect supply source with a correct size and
type circuit breaker and not overload circuits.
WARNING! It is not recommended to power any
Vari-Lite luminaire from a dimmer - even in ‘NONDIM’
mode. Dimmer and non-dim modules are not suitable
sources of power because their output modifies the AC
wave form. This may work for a short time, but will even-
tually result in power problems, luminaire misoperation
and/or failure and may void the luminaire’s warranty.
