RGBW 8-Bit Mode 39
SL NITRO 510C LED STROBE Luminaire
Installation & User’s Manual
Sh wline

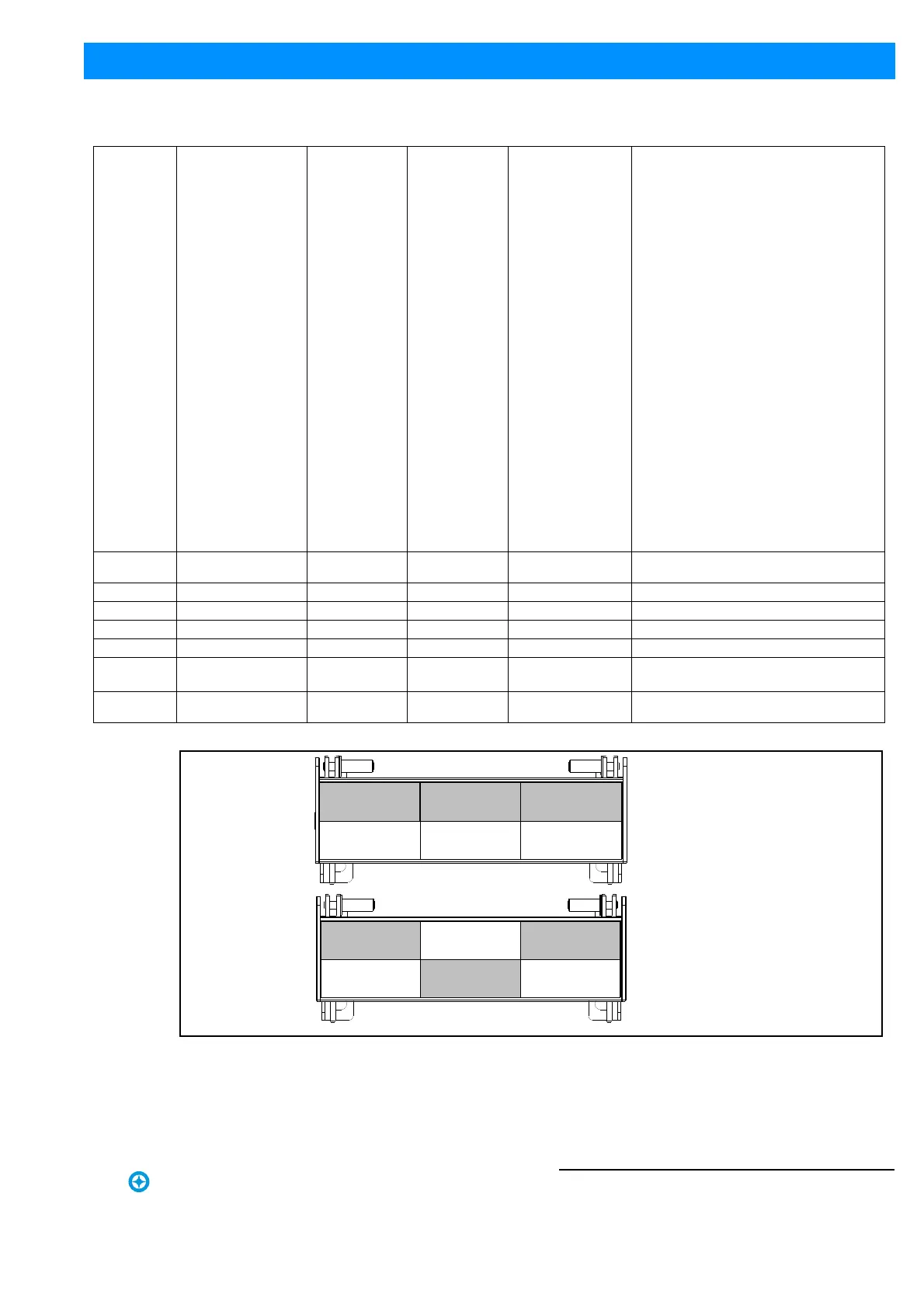

Figure 19: Linear & Checker Pattern
5 Control Channel 0 - 255 0 - 100% 0
Control channel operation. Set control channel
value to desired action, hold value for at least 5
seconds, then turn to 0. Set control channel
value to 0 without any scaling.
Default Setting on Console = DMX 0-4
Dimming Curve_linear = DMX 30 - 34
Dimming Curve_Square = DMX 35- 39
Dimming Curve_S-Curve = DMX 40 - 44
Dimming Curve_PL-Curve = DMX 45 - 49
Calibration_OFF = DMX 70 - 74
Calibration_ON = DMX 75 - 79
Fan_Auto = DMX 80 - 84
Fan_Off = DMX 85 - 89
The following is only available for "Zones
Mapping" protocol. The following is instantly
applied and DOES NOT require the 5 second
hold.
Combined zone control - (all zones follow zone 1
setting) = DMX 100 - 104
The following is only available for "2 Zones
Modes". The following is instantly applied and
does not require the 5 second hold:
Linear Pattern = DMX 105 - 108*
Checker Pattern = 109 - 112*
*See
Figure 19.
Not Used = DMX 113 - 250 (Reserved for future
use)
6 Zone 1 - 6 Intensity 0 - 255 0 - 100% 0
8-bit control for the intensity of the Zones - 0 to
255 (full)
7 Red 1 - 6 0 - 255 0 - 100% 0 8-bit control of Red LEDs from 0 to full
8 Green 1 - 6 0 - 255 0 - 100% 0 8-bit control of Green LEDs from 0 to full
9 Blue 1 - 6 0 - 255 0 - 100% 0 8-bit control of Blue LEDs from 0 to full
10 White 1 - 6 0 - 255 0 - 100% 0 8-bit control of White LEDs from 0 to full
11
Zone 1 - 6
Strobe Duration
0 - 255 0 - 100% 0
Controls strobe duration. Refer to "Strobe
Duration DMX Timing Detail" on page 47.
12
Zone 1 - 6
Strobe Rate
0 - 255 0 - 100% 0
Controls strobe rate operation. Refer to "Strobe
Rate DMX Timing Detail" on page 46.
Table 17: DMX Channel Mapping (RGBW 8-Bit Mode)
Zone 1 Zone 2 Zone 3
Zone 4 Zone 5 Zone 6
Top of Luminaire
Bottom of Luminaire
Front of Luminaire
Note, this is a graphical representation
Linear Pattern
Zone 1 Zone 2 Zone 3
Zone 4 Zone 5 Zone 6
Top of Luminaire
Bottom of Luminaire
Front of Luminaire
Checker Pattern
for reference purposes only.
