SL NITRO 510C LED STROBE Luminaire Main Menu Options 17
SL NITRO 510C LED STROBE Luminaire
Installation & User’s Manual
Sh wline
.

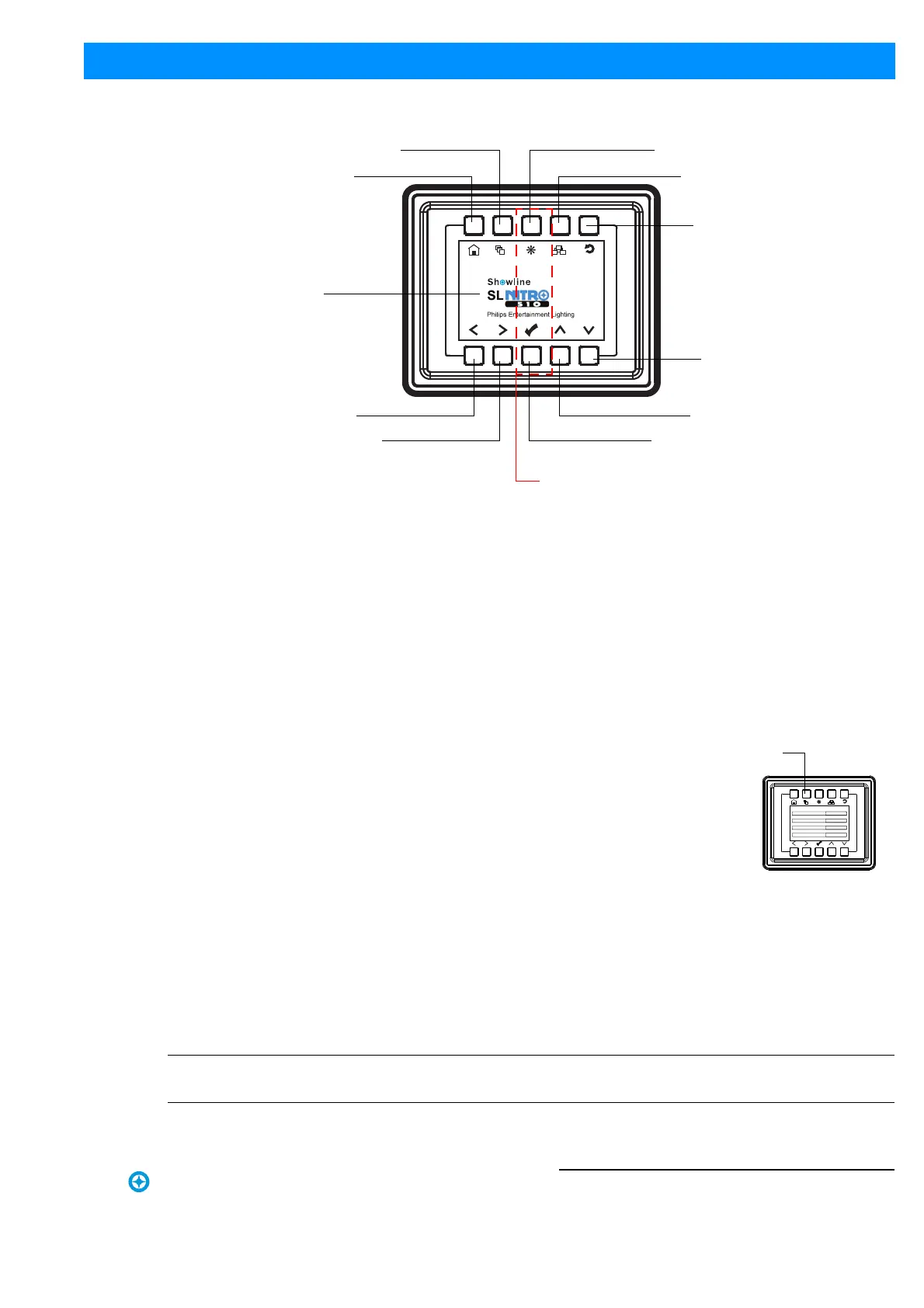

Figure 13: LCD Display and Menu System
3. SL NITRO 510C LED STROBE Luminaire Main Menu Options
Presets
Presets are stored values of the luminaire's LED settings that can be recalled via the menu system or DMX. You can
customize up to 31 presets via the menu system.
Recalling or Editing Presets
To recall or edit a preset:
Step 1. Select Preset from the main menu or from the Preset shortcut key.
Step 2. The top left field indicates the current preset or Off, when this field is
selected (highlighted in blue), use the left and right buttons to scroll
through all presets
Step 3. If you wish to edit the preset, use the Up and Down keys to scroll through
the parameters. Once a parameter is selected, use the left and right arrow
buttons to make adjustments.
Notes:
• If security features are enabled, the Up and Down arrows will have no effect. See "Settings/Security" on page 18.
• Depending on the DMX map set assigned the DMX menu, different parameters will be available. See "DMX
CONTROL" on page 24 for additional information.
Step 4. Once all values are adjusted as desired, press the Check Mark button to save the preset.
Step 5. The Save Preset Menu option will appear. Use the left and right arrow buttons to select the preset number to
save to.
Note: This function allows you to save your current edits to a different preset number than you began editing. This is
helpful to create copies of existing presets.
Step 6. Press the Check Mark button to save the preset. You will be asked to confirm your saving operation.
Home (menu settings)
Edit a Preset
Edit a Chase
DMX512 Addressing
Return to Main Screen /
LEFT Arrow Button
UP Arrow Button
OK (Check Mark) Button
DOWN Arrow Button
RIGHT Arrow Button
LCD Display
NOTE: Menu rotates with orientation of Luminaire and
menu buttons are always in the same position (with
rotation of menu)
To rotate menu 180 degrees manually from current
orientation, press and hold the two center buttons for 2
seconds.
Return Up One Level
Edit a Preset
MAST ER IN TENS ITY 100 %
STROBE RATE Single
STROBE DURATION 0mS
EFFECTS No E ffe ct
Edit a Preset
