Installation & User’s Manual SL NITRO 510C LED STROBE Luminaire
14 INSTALLATION AND SET UP
Sh wline
vent the spacing between the two SL NITRO 510C LED STROBE Luminaires from spreading apart at the center.

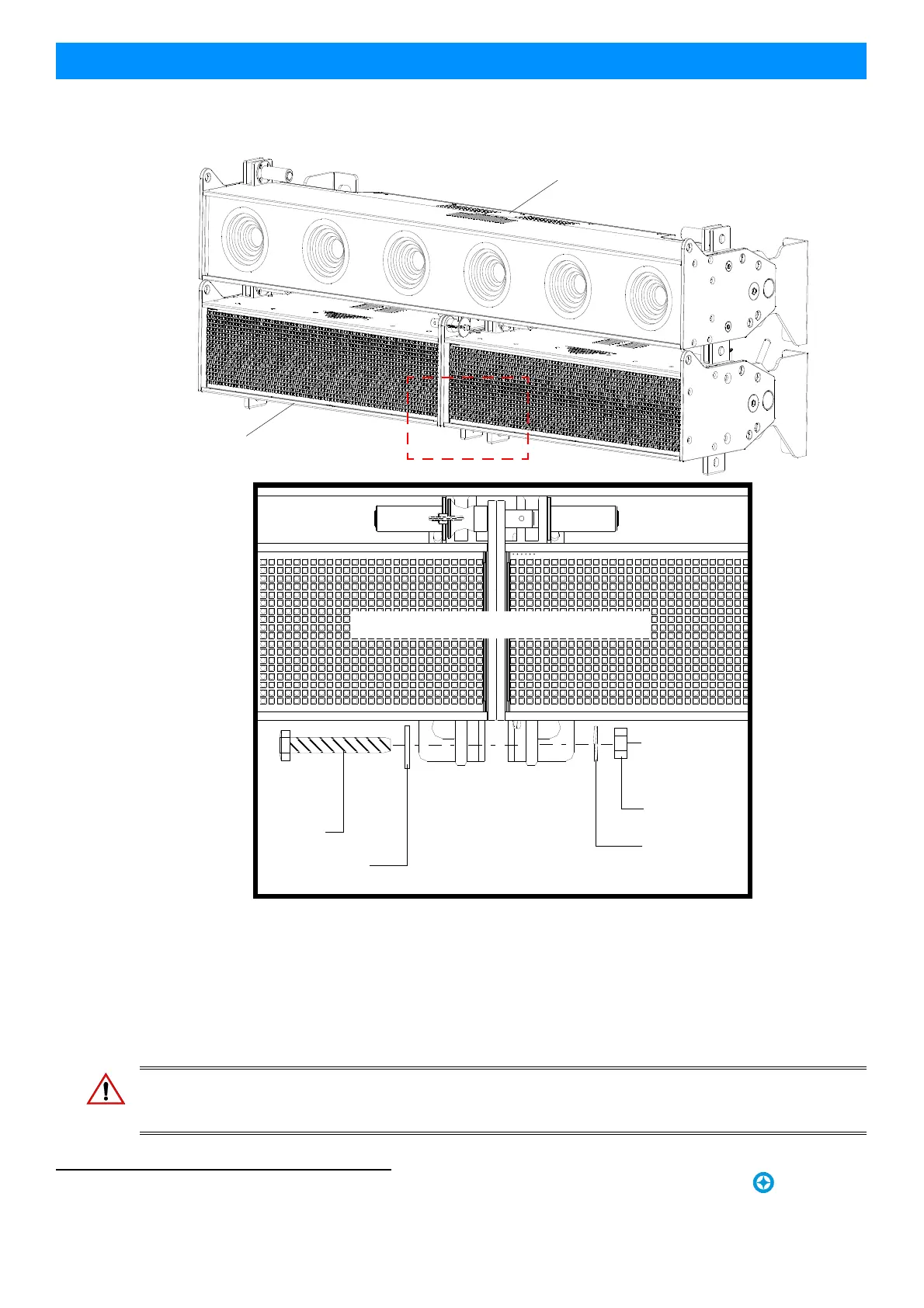

Obtain and install:
1) One M10-1.5 x 25 mm Long, Hex Head Cap Bolt
2) One 10 mm Flat Washer
3) One 10 mm Split-Lock Washer
4) One M10-1.5 (8 mm high) Hex Nut
• Installation is Flat Washer under Bolt Head, Bolt through both SL NITRO 510C LED STROBE Luminaire brack-
ets, Lock Washer, and then Hex Nut. Hand tighten.
WARNING! Your structure must be capable of properly supporting the weight of multiple connected fixtures. Each
fixture must use an approved safety cable attached to a fixed object. Up to ten luminaire rows may be supported when
connected using the Quick Connect system.
Bolt
Flat Washer
Lock Washer
Nut
Note, hardware shown available from others.
SL NITRO 510C LED STROBE Luminaires
See detail below
SL BAR 520 LED Luminaire
SL NITRO 510C LED
STROBE Luminaires
