Mounting SL NITRO 510C LED STROBE Luminaire with Other Luminaires 13
SL NITRO 510C LED STROBE Luminaire
Installation & User’s Manual
Sh wline

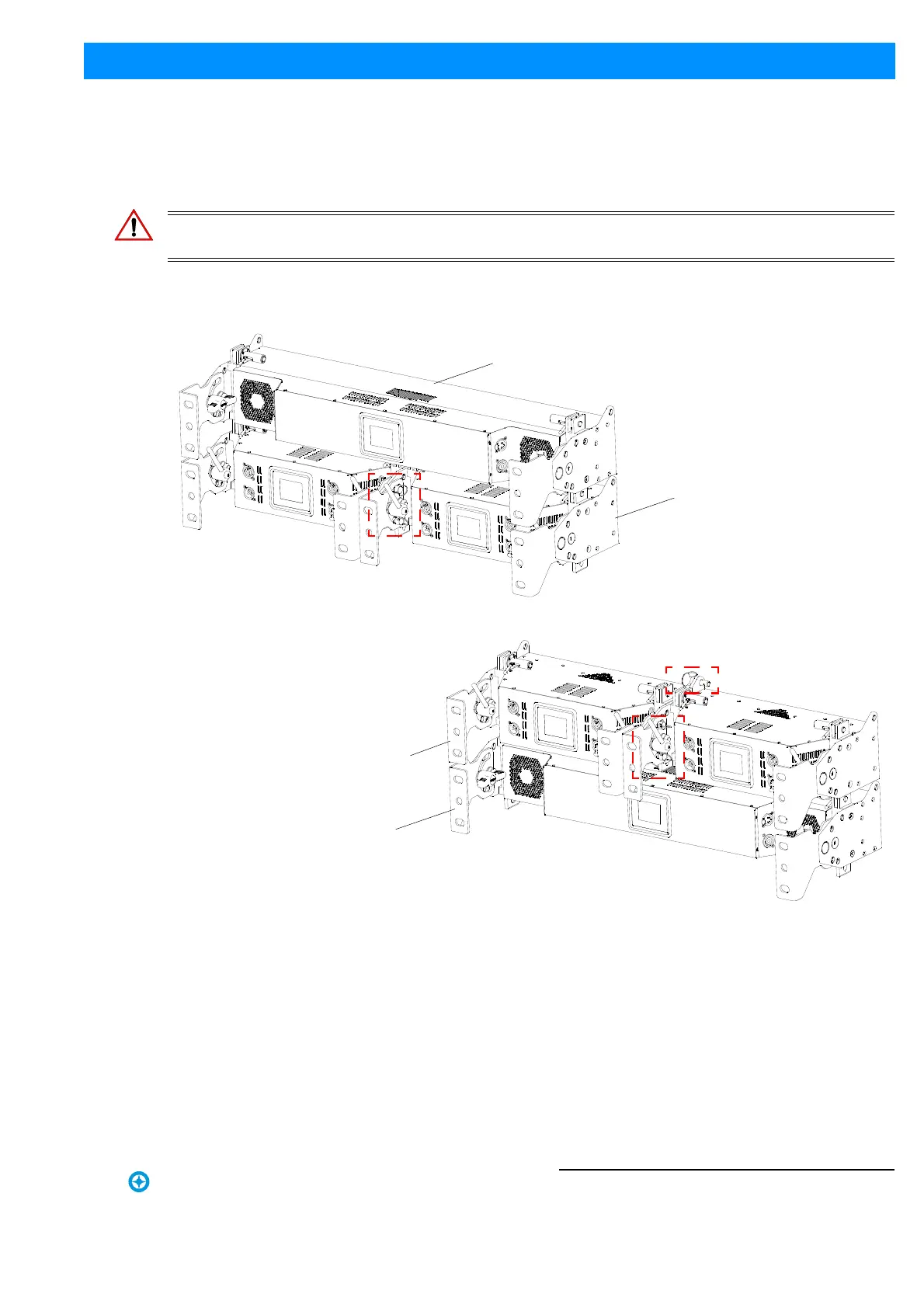

Connecting Combined Luminaires Top-to-Bottom
When combining units connected top-to-bottom, two SL NITRO 510C LED STROBE Luminaires are first connected
end-to-end and then connected top-to-bottom with a single SL BAR 520 luminaire.
Connecting Notes:
WARNING! Do not exceed 10 rows of combined luminaires connected together top-to-bottom with a single hanging
point. If more than 10 rows are required, each ten rows must use its own connection to a fixed object.
• The two SL NITRO 510 units must have all three side-to-side pins installed (refer to Figure 11 and "Connecting
Luminaires Side-to-Side" on page 12).
Figure 11: SL NITRO 510C LED STROBE Luminaires - Connections
• When two SL NITRO 510C LED STROBE Luminaires are combined with a SL BAR 520, there is no top-to-bot-
tom connection available in the center.
• When a SL BAR 520 unit is mounted below the two SL NITRO 510C LED STROBE Luminaires, the top-to-bot-
tom connections will rest on the center of the SL BAR 520, preventing the units from spreading apart in the center.
• If the bottom of a configuration has two SL NITRO 510C LED STROBE Luminaires below a single SL BAR 520,
connect the bottom center top-to-bottom connections with the following hardware (available from others) to pre-
OR
SL BAR 520 LED Luminaire
SL NITRO 510C LED
SL NITRO 510C LED
SL BAR 520 LED Luminaire
STROBE Luminaires
STROBE Luminaires
