Installation & User’s Manual SL NITRO 510C LED STROBE Luminaire
12 INSTALLATION AND SET UP
Sh wline
Connecting Luminaires Side-to-Side

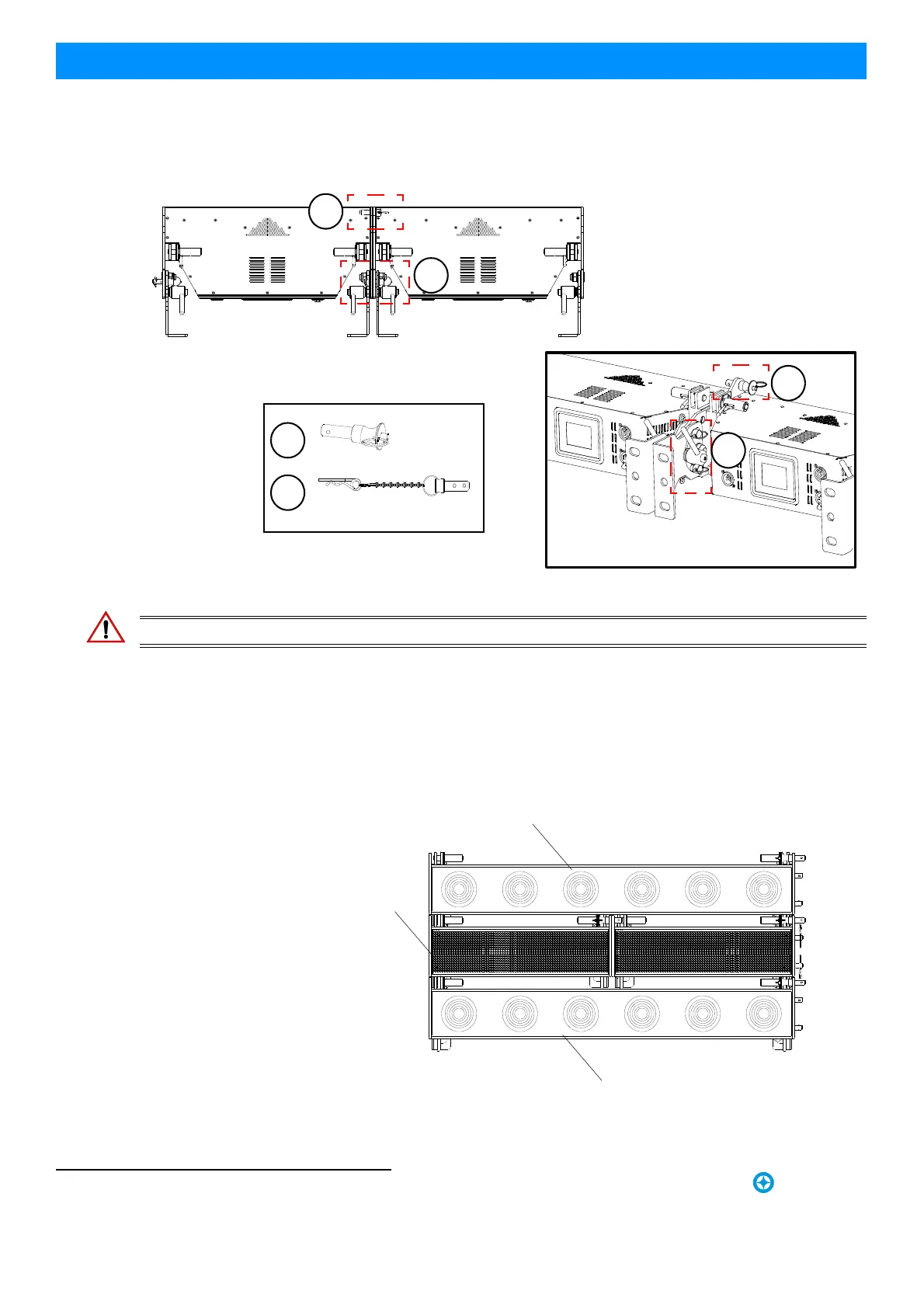

Each SL NITRO 510C LED STROBE Luminaire ships with three Luminaire Connecting Pins as indicated in Figure
9. All three pins are used to connect two luminaires together linearly. Each fixture must be mounted using its own
mounting hardware. The side-to-side pins are only to align the luminaires and do not provide hanging support.
Figure 9: Connecting Luminaires Side-to-Side
WARNING! Each fixture must use an approved safety cable attached to a fixed object.
6. Mounting SL NITRO 510C LED STROBE Luminaire with Other
Luminaires
The SL NITRO 510C LED STROBE Luminaire and SL BAR 520 LED Luminaire are designed to be connected
together top-to-bottom and/or end-to-end using the same connecting hardware. The pixels of the SL BAR 520 LED
Luminaire and the zones of the SL NITRO 510C LED STROBE Luminaire will be perfectly aligned when connected
via the built-in connecting hardware.
Figure 10: Combining SL NITRO 510C and SL BAR 520 luminaires
Front Pin (x1)
Back Pin (x2)
A
B
A
B
A
B
SL NITRO 510C LED
SL BAR 520 LED Luminaire
SL BAR 520 LED Luminaire
STROBE Luminaire (x2)
Note, all luminaires are sold separately.
