12
3. CONNECTIONS (CONT’D)
3.2 elecTricAl connecTion To opTionAl AuxiliArY wAll conTrol

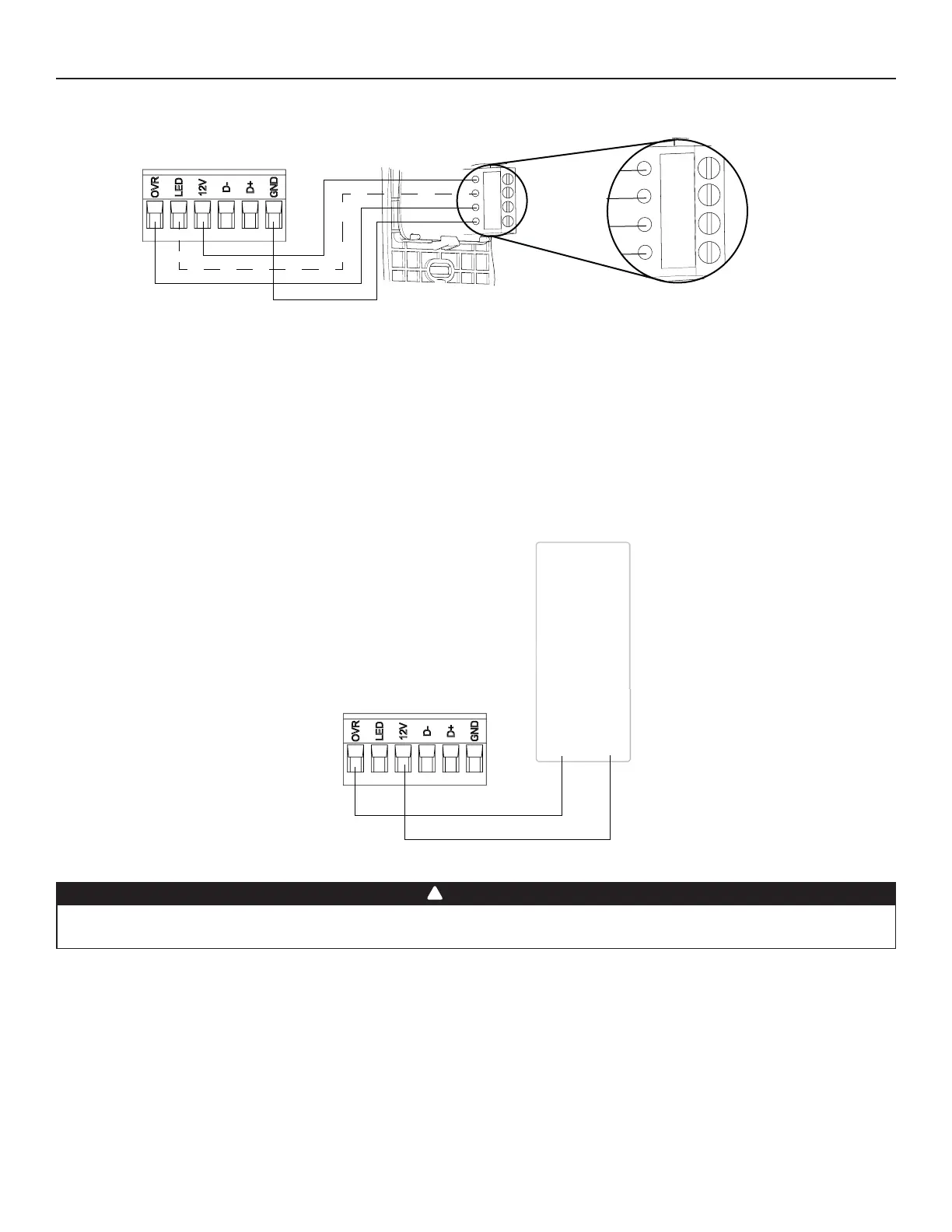

3.2.1 elecTricAl connecTion To 20-40-60 opTionAl AuxiliArY wAll conTrol
Gnd
OVR
12V
LED
V
C0243
Gnd
OVR
12V
LED
When congurating OVR option on the LCD screen, choose among these 3 congurations: BAL (the unit remains balanced
while providing maximum airow), PER (the unit is slightly unbalanced since the distribution motor is in MAX speed while
allowing maximum exhaust ventilation) and DIS (the unit is unbalanced since air distribution is constant despite a higher
need in exhaust ventilation).
NOTE : The auxiliary wall control can be used with a 3-wire connection by removing the LED signals. This optional wiring
will not allow an installation with more than 1 auxiliary wall control to properly synchronize their LEDs on an event
requested from a peer. Only the auxiliary wall control having requested the timer event will have the LEDs updated
accordingly.
3.2.2 elecTricAl connecTion To drY conTAcT opTionAl AuxiliArY wAll conTrol (e.G. crAnk Timer)
Crank Timer
or
Any Dry Contact
12VOVR
VC0256A
A miswiring that sends a 24 VAC signal to the 6-position terminal block (OVR, LED, 12V, D-, D+, GND) could
permanently damage the control circuit. Verify carefully wire connections before powering-up the unit.
WARNING
!
