For the Installer

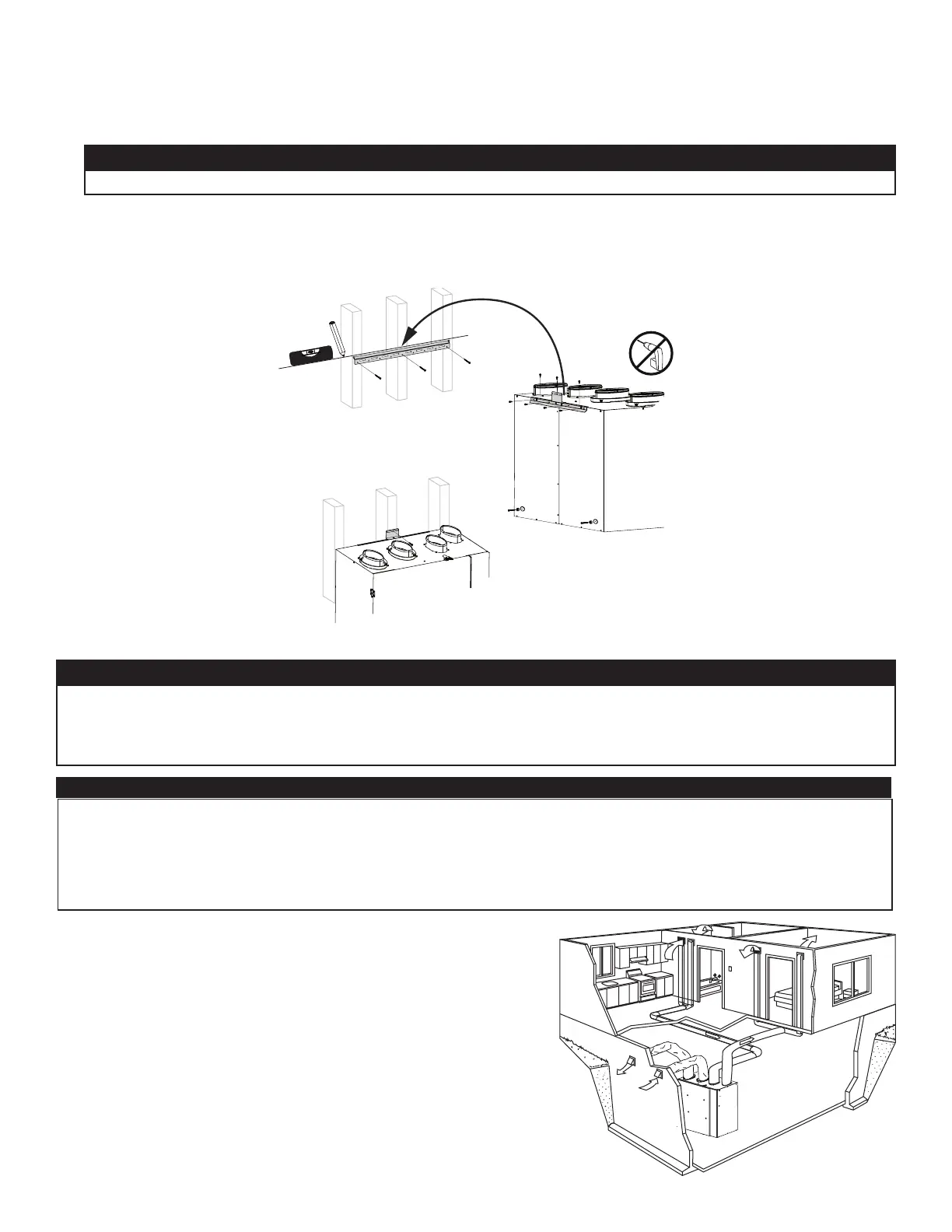

5.2.2 uSing tHe Wall BRacketS
1. Trace a level line on the wall, approximately where the top of the unit will be.
2. Using the provided 1.5-in. screws and washers, install the longest of both brackets to the wall making sure to secure it to all of the
available studs.
⚠WARNING
The bracket must not be secured to the drywall only.
4. Using the provided 1.5-in. screws, assemble both spacers to the lower corners of the back of the unit.
5. Using the provided 3/8-in. screws, mount the two other brackets to the top back of the unit, as illustrated below. Do not use an elec-
tric screw driver.
6. Hang the unit to the bracket on the wall, and secure the smallest bracket to the wall, into a stud if possible.
5.3 inStalling tHe DuctWoRk anD tHe RegiSteRS
⚠WARNING
• Never install a stale air exhaust register in a closed room where a combustion device operates, such as a gas
furnace, a gas water heater or a fireplace.
• When performing duct connections, always use approved tools and materials. Respect all corresponding laws
and safety regulations. Please refer to your local building code.
If ducts have to go through an unconditioned space (e.g.: attic), always use insulated ducts to prevent condensation
formation inside and outside ducts, which could cause material damage and/or mold growth. Moreover, if fresh
air to building duct and/or stale air from building duct goes/go through an unconditioned space, the unit must
be set to operate continuously in cold conditions (below 10°C/50°F). Continuous air movement inside ducts will
prevent condensation formation. The unit can be stopped temporarily for maintenance and/or repair purposes in
such conditions.
CAUTION
5.3.1 Fully DucteD SyStem
Stale air from building ductwork:
• Install registers in areas where contaminants are produced: Kitchen,
bathrooms, laundry room, etc.
• Install registers on an interior wall, 6 to 12 inches (152 to 305 mm) away
from the ceiling OR install them in the ceiling.
• Install the kitchen register at least 4 feet (1.2 m) away from the range.
Fresh air to building ductwork:
• Install registers in bedrooms, dining room, living room and basement.
• Install registers either in the ceiling or high on the walls with the airflow
directed towards the ceiling.
• If a register must be installed in the floor, direct the air flow up the wall.
VO0288
1
2
3
VH0156
