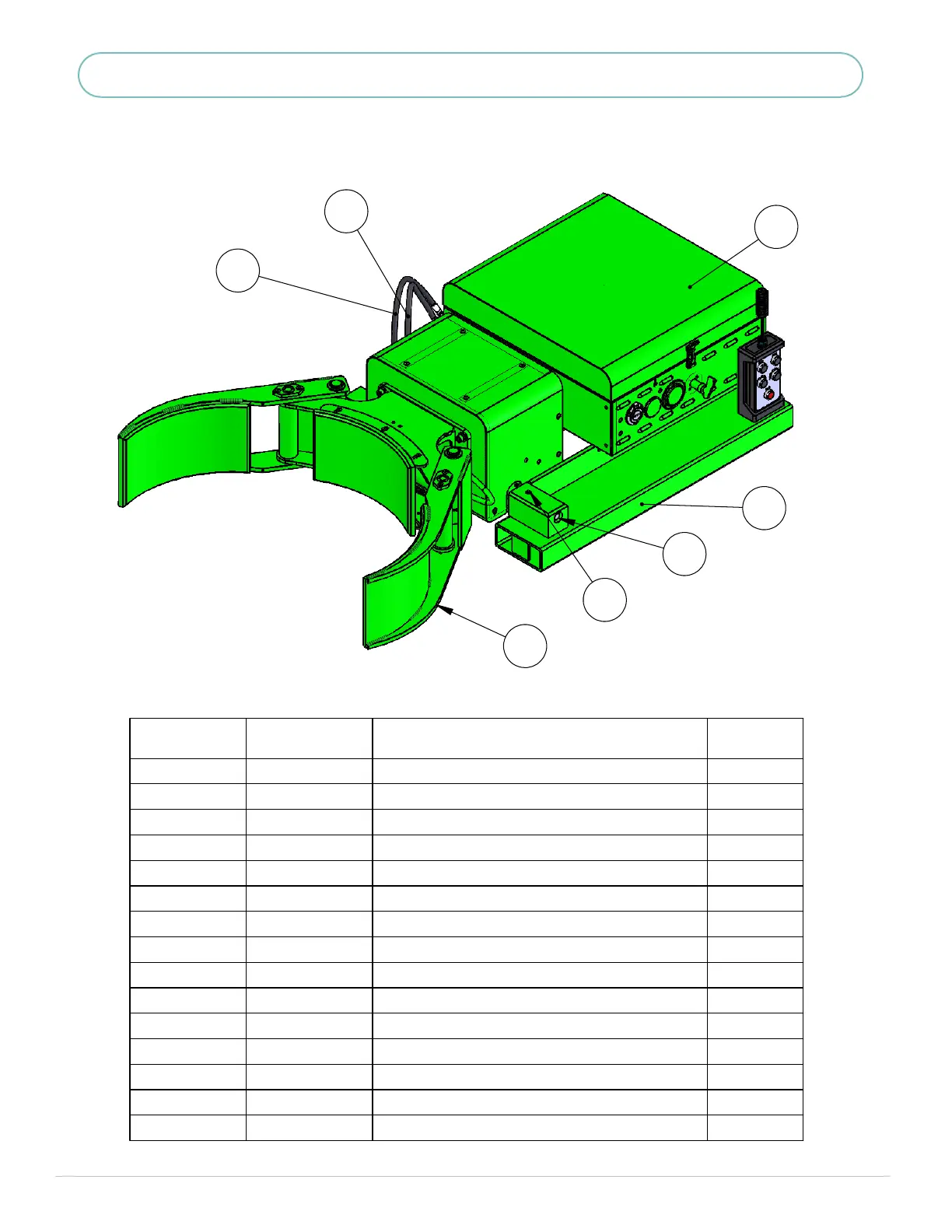

F89701 VERSA II-2K# STD SP
ISO View and Bill of Materials
THE HOSE HAS BEEN MANUALLY ENTERED INTO THIS BOM
BECAUSE THE HOSES ARE EXCLUDED FROM THE BOM IN
THE MODEL TO MAKE THE BILL WORK EASIER TO DO.
ITEM NO.
PART
NUMBER
DESCRIPTION
QTY.
1
F50383
UG-RTB-AXLE (KANBAN)
1
2
F50447
PIN-CLEVIS/TILT CASE (KANBAN)
1
3
F51731
PIN-CLEVIS/TILT CASE (KANBAN)
1
4
F69007A7
VERSA-CLAMP/TILT ASSY
1
5
F60580A1
VERSA-CNRLBOX-ASSY
1
6
F69005A5
VERSA-FRAME-WELDMENT
1
7
Z10013A3
BUSH-MACH 1x10GAx1-1/2 OD
10
8
Z10045A5
NUT-NYL NE 5/16-18
4
9
Z10223A9
RING-RTNG 1
4
10
Z10392A4
S-SHS 1/2-20X1/2
2
11
Z84912A8
CYL 3.5 X 1-1/4 X 8.25 (319394)
1
12
Z10125A8
S-HHC 5/16-18X1-1/2
4
13
Z20585A7
FTG 90 6801-4-6 NWO
2
14
F61011A4
HOSE-26.50/613/649
1
15
F61321A8
HOSE-24.00/613/649
1
17
VERSA II-2K# SP, CLAMP & TILT
