PHT-800#
19
Z41322A7

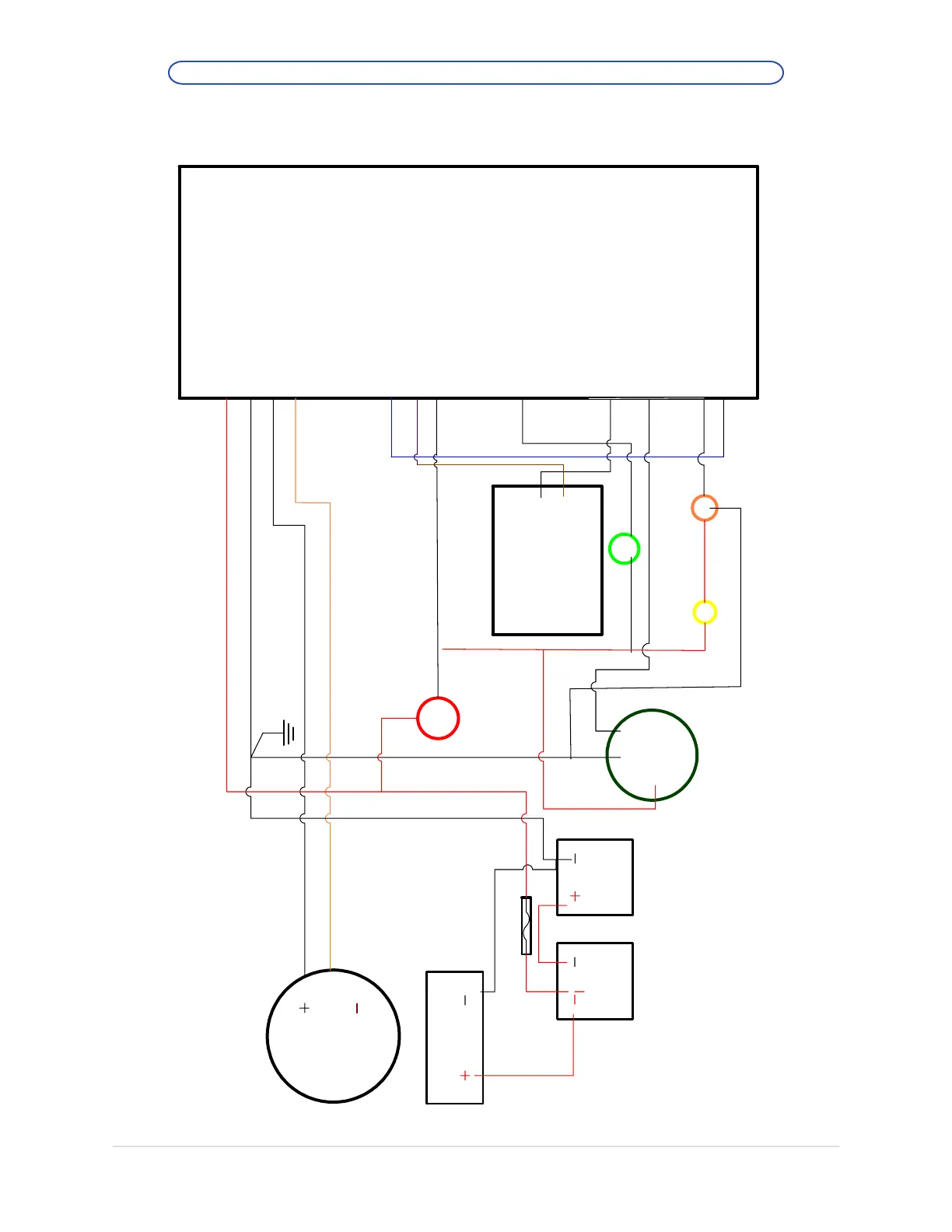

ELECTRICAL SCHEMATIC
-
+
Z20817A6
LIGHT-INDICATOR LED GRN 24V
BDI OUTPUT
Z00584A0
BATTERY DISCHARGE GAUGE
+24V
-
Z00592A8
SWITCH-REVERSE
Z11613A8
BUZZER-24VDC FLANGE MNT
+
-
+
-
Z00561A7
SWITCH-KEY
ON/OFF 24VDC
PT
Z20912A7
TRANSAXLE-0.3HP/125LB-IN
B+ +24V (RED LEAD)
B- -24V (BLACK LEA
M1
M2
J1P1 B- (BATTERY CHARGER)
J1P2 B- (BATTERY CHARGER)
J1P3 POT HIGH OUTPUT
J1P4 POT WIPER INPUT
J1P5 KEYSWITCH INPUT (KSI)
J1P6 BRAKE INPUT (BRAKE -)
J1P7 PUSH SWITCH INPUT
J1P8 MODE SWITCH INPUT
J1P9 STATUS LED OUTPUT
J1P10 B+ (BATTERY CHARGER)
J1P11 B+ (BATTERY CHARGER)
J1P12 INHIBIT INPUT
J1P13 POT LOW INPUT
J1P14 BRAKE OUTPUT (BRAKE +)
J1P15 BDI OUTPUT
J1P16 HORN INPUT
J1P17 REVERSE SWITCH INPUT
J1P18 SPEED LIMIT POT WIPER INPUT
Z11663A8
CNTRLR ASSY CURTIS 1210-2401
POT LO (BLACK) 0
POT WIPER (BROWN) 0
POT HI (BLUE) 0
Z00591A7
THROTTLE TWIST MAGURA 0-5K
Z20057A9
BATTERY CHARGER, DELTRAN 24V
Z00558A4
BATTERY-12V 18AH
Z00558A4
BATTERY-12V 18AH
Z00530A0
FUSE HOLDER PANEL MNT
