3
Panel Introduction
When playing or overdubbing
:
Press and hold this footswitch for 2 seconds or more
to perform undo (cancel recording or the last overdub recording).Press and hold the
Footswitch again to perform the redo function (cancel the undo operation).
10. [LOOP 2] Footswitch
Control the recording, playback, stop, overdub recording, undo and redo functions of
LOOP 2, the operation logic is consistent with [LOOP 1] Footswitch.

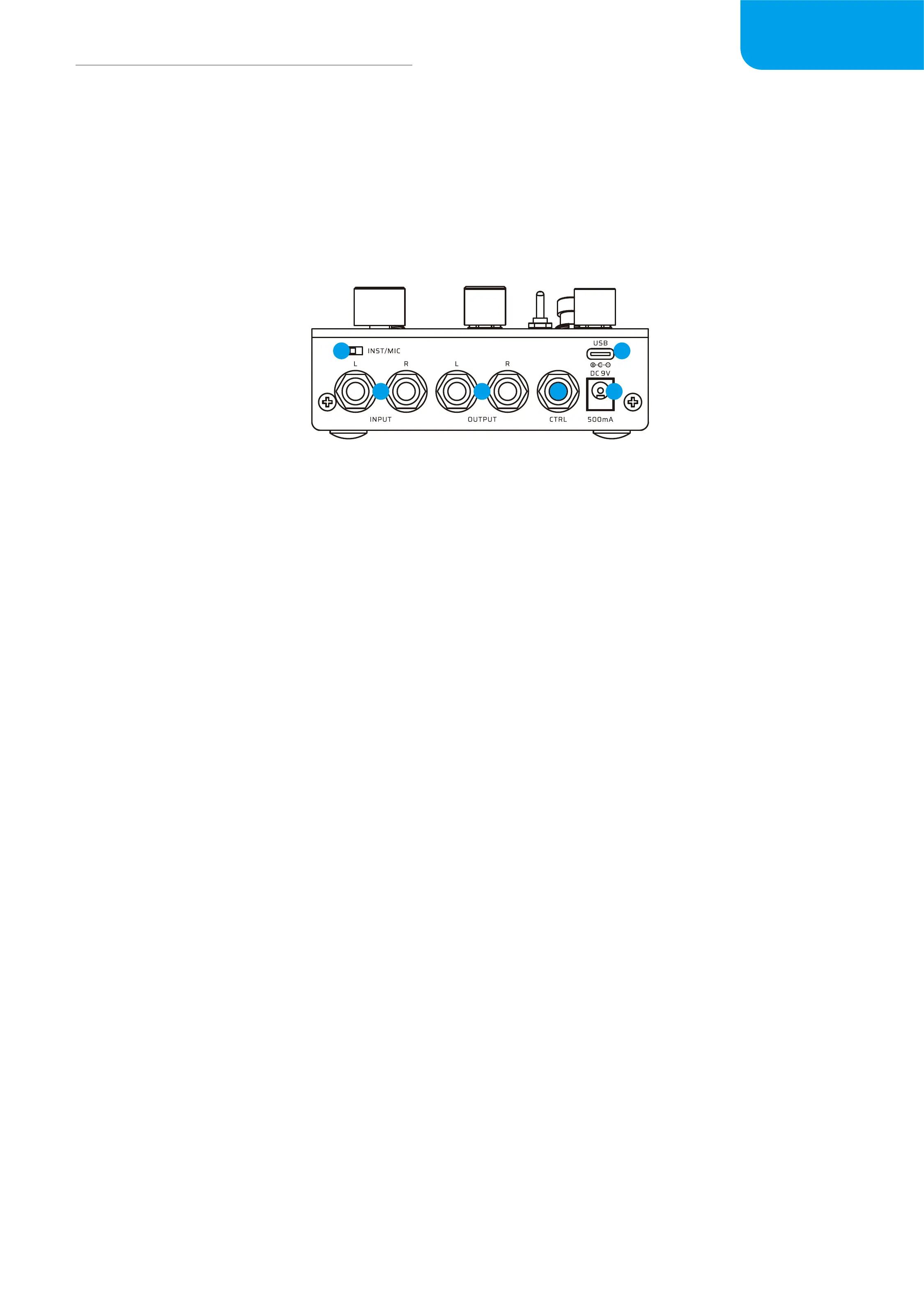

12
13 14
11
15
16
11. INST/MIC Toggle switch
Toggle the switch to match the connected device:
- INST
:
Suitable for guitars, basses and other instruments.
- MIC
:
Suitable for connecting dynamic microphones.
12. INPUT (L/R) Jack
1/4” Mono input connection for guitar, bass , microphone or other instruments. When
connecting a stereo output device, please use both L and R jacks; when connecting a
mono device, use either the L or R jack.
13. OUTPUT (L/R) Jack
1/4” unbalanced output interface, connect to speaker, mixer or recording equipment.
Mono input
:
Only L or R channel input, OUTPUT L and R output the same LOOP signal (dual mono
output).
Stereo input
:
When INPUT L and R are input at the same time, OUTPUT L and R output the LOOP
signal of the corresponding input channel.
*Note: When INPUT L and R are inserted at the same time, if only one channel of L or
R has signal input, only the corresponding output channel has LOOP signal output.
14. CTRL Jack
The 1/4” TRS input, for connecting an external single footswitch controller. A single
press on the external pedal can be used to turn the drum machine on or o, and a
long press can enter tap tempo mode, which is used to adjust the BPM of the drum
machine.
15. USB Jack
By connecting to a Mac or PC through the USB 2.0 Type-C port, import and export
projects and update rmware with supporting software.
16. DC 9V Jack
Power Requirements: DC 9V, 500mA, center negative.
