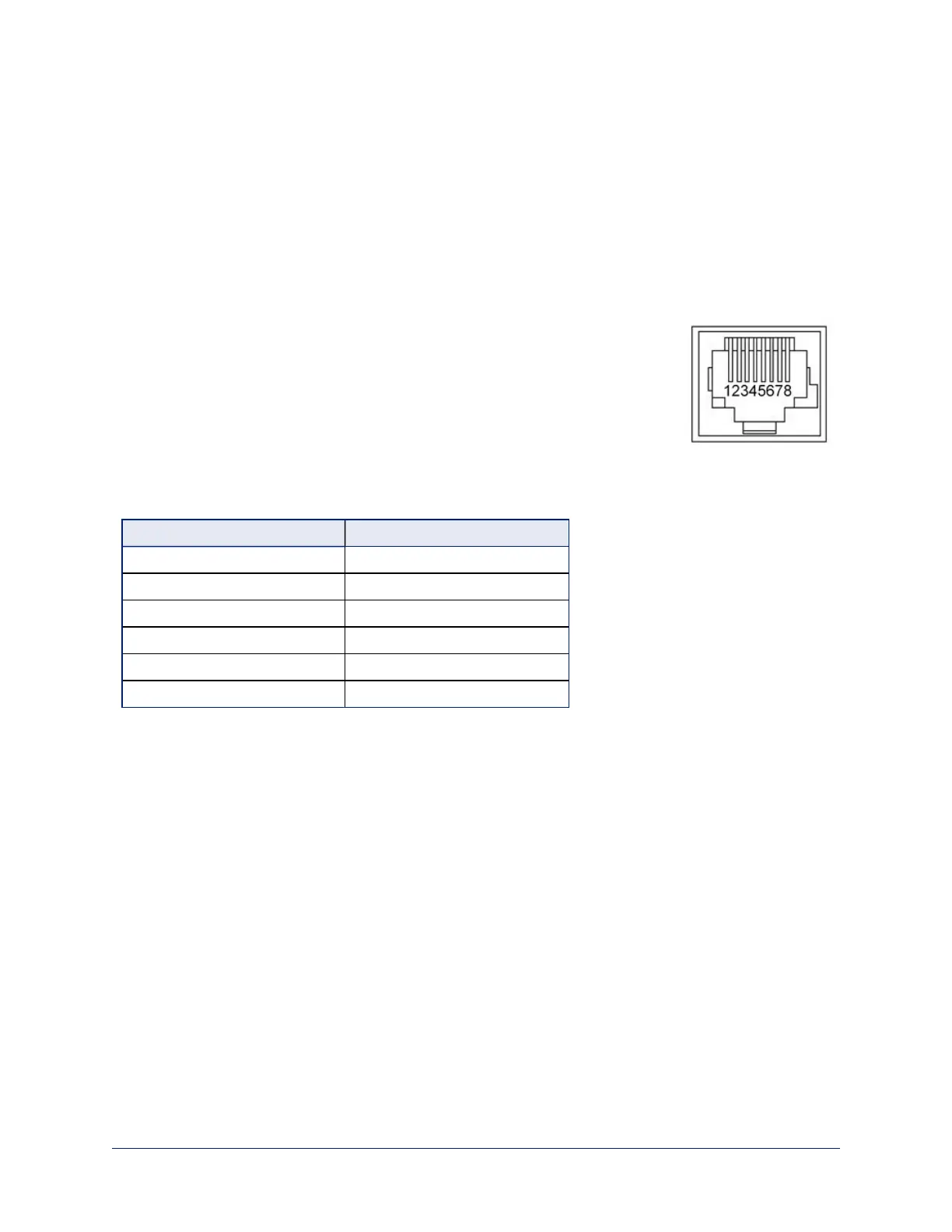

RS-232 Serial Communication Settings and Port Pin-outs
The EasyIP Mixer and EasyIP 20 camera have RS-232 serial ports (color-coded blue) to connect to a third-
party controller.
Depending on the equipment connected to the RS-232 port, you may need a null-modem (crossover) cable.
Caution
Check your cables. Connecting a cable to the wrong port or using the wrong pin-out can result in equipment
damage and will void the warranty.
EasyIP Mixer
RS-232 connector pin-out:
n Pin 1: Not used
n Pin 2: Not used
n Pin 3: Not used
n Pin 4: Not used
n Pin 5: Not used
n Pin 6: GND
n Pin 7: TXD (to RXD of connected device)
n Pin 8: RXD (from TXD of connected device)
Communication parameters:
Parameter Value
Communication Speed 38400 baud
Start bits 1
Stop bits 1
Data bits 8
Parity None
Flow control None
14
Installation Guide for EasyIP Systems
