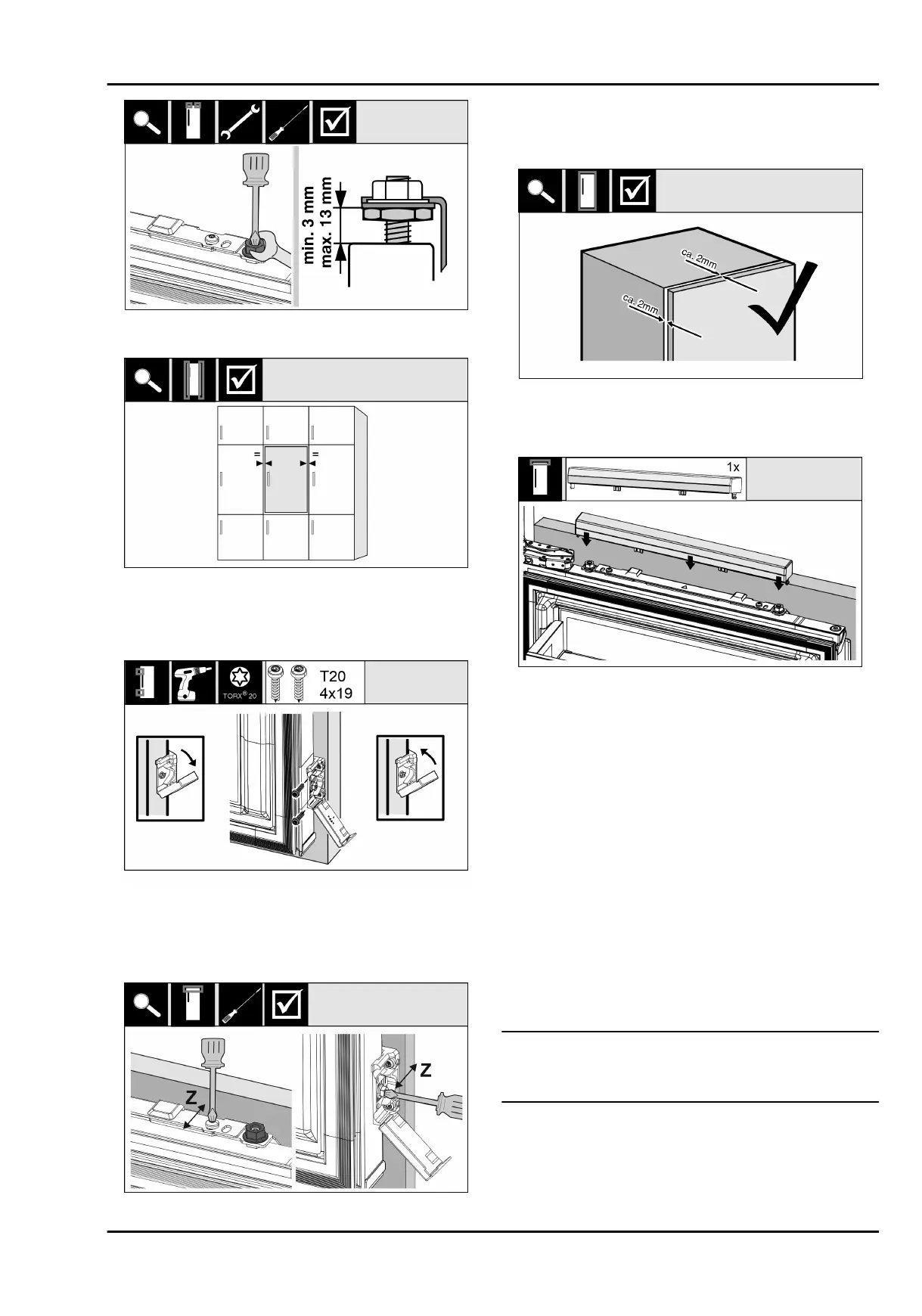

Fig. 60
u
Screw on the lock nuts and check the height.
Fig. 61
u
Check the gap between the door and the surrounding
custom door panels. For unit fronts thicker than 19 mm,
take account of the dimensions and advice in the chapter
Unit fronts.
Fig. 62
u
Open the cover to fit the mounting bracket on the custom
door panel. Align the front edge of the mounting bracket
parallel with the custom door panel edge and screw the
bracket down tightly. Fold up the cover.
Fig. 63
Align the custom panel in the Z direction:
u
Loosen the adjusting screw on the crosspiece and the
screw on the mounting bracket.
u
Move the door.
Fig. 64
u
Check the gap between the custom door panel and the
unit body.
u
Check all screws and retighten them if necessary.
Fig. 65
u
Clip the top cover on.
14.5 Checking the installation
u
Check the following points to ensure the appliance is
correctly installed. Otherwise, ice and condensation may
form, and malfunctions may occur.
w
The door must close properly.
w
The custom door panel must not touch the body of the
unit.
w
The seal on the upper corner on the handle side must be
fitted securely.
15 Cabinet fronts
15.1 Dimensions
Depending on your model, you will need one or two cabinet
doors. The size of the cabinet door(s) depends on the overall
recess size and cabinet unit thickness.
Note
Observe the appliance and recess dimensions and follow
the installation diagrams . See the relevant catalogue for
the installation diagrams.
General requirements:
-
Please refer to our catalogues for appliance-specific
recommendations on size and weight for fixed door
installations.
Cabinet fronts
64 * Depending on model and options
