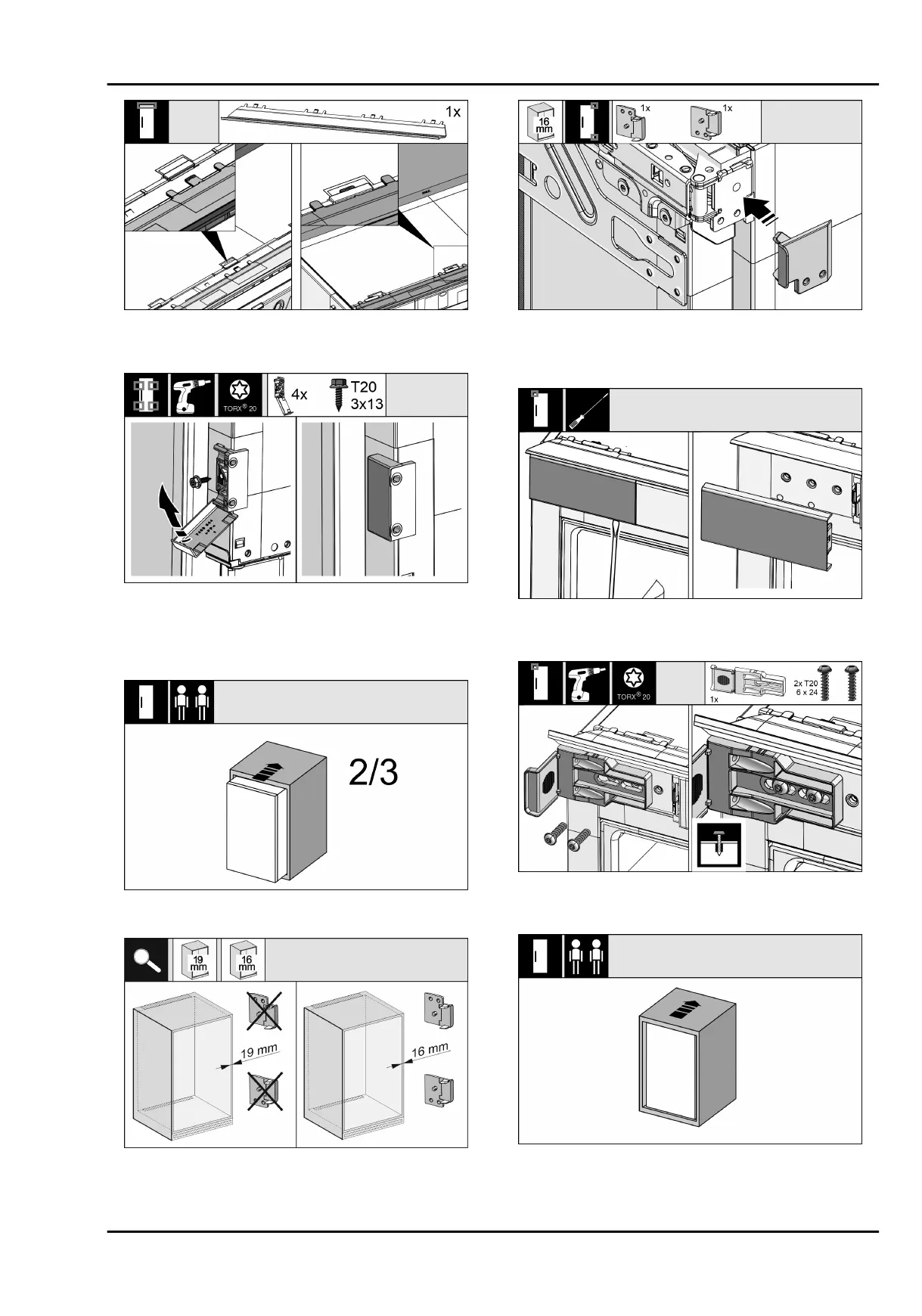

Fig. 30
u
Insert the levelling panel on the top of the appliance. The
panel can be moved to both sides.
Fig. 31
14.2 Aligning the appliance in the
recess
Fig. 32
u
Push the appliance 2/3 of the way into the recess.
Fig. 33
u
Check whether the unit side wall is 16 mm or 19 mm
thick.
Fig. 34
u
For unit walls which are 16 mm thick: Clip a spacer on
all hinges. No spacer is required if unit walls are 19 mm
thick.
Fig. 35
u
Use a screwdriver to loosen the cover at the top left and
remove it.
Fig. 36
u
Loosely screw on the mounting bracket. The bracket
should still be able to move slightly.
Fig. 37
Installing the appliance in the recess
60 * Depending on model and options
