12 **** freezer compartment
door*

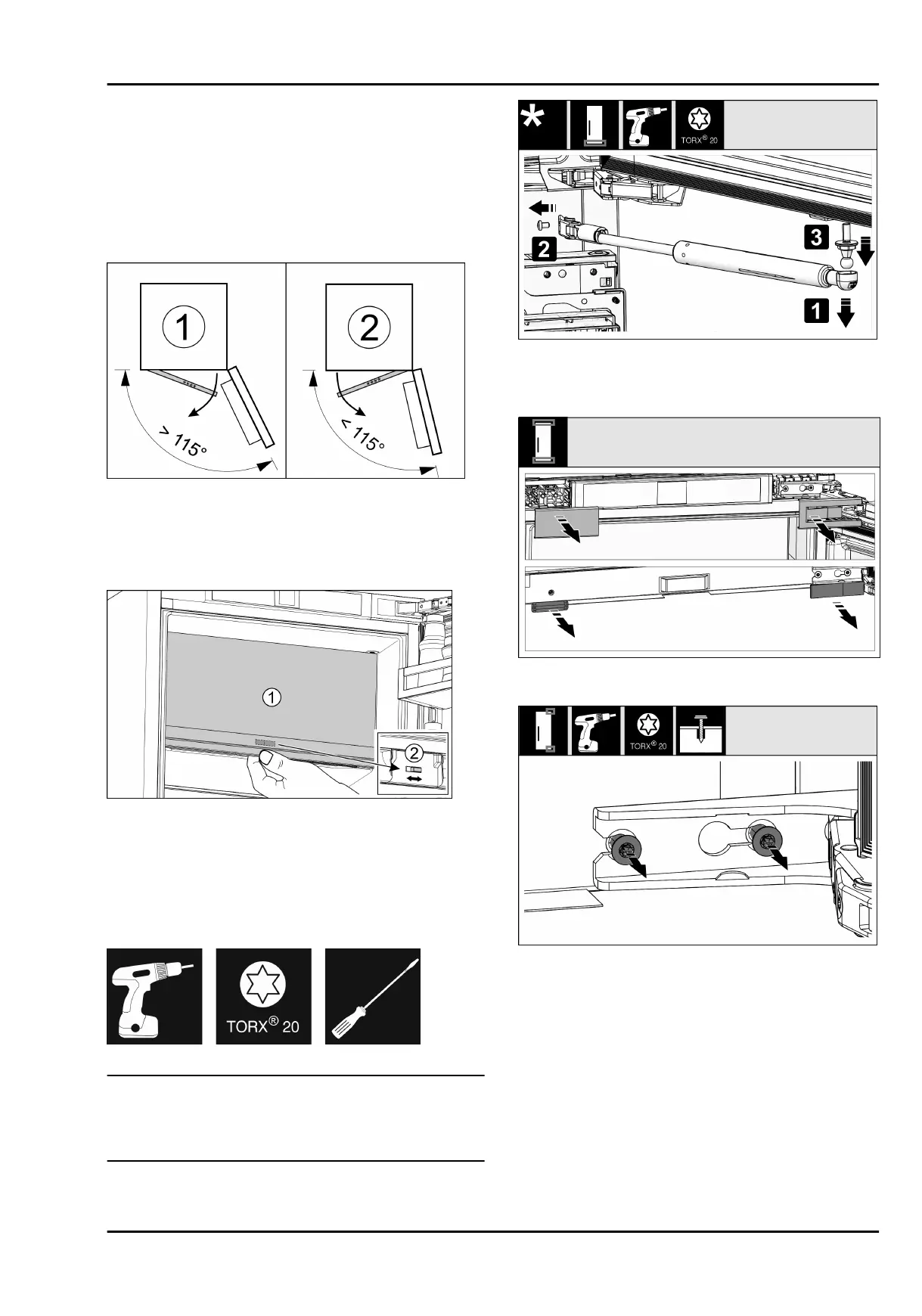

It is very easy to reposition the hinge of the **** freezer
compartment door if the main door hinge is swapped. If the
main door of the appliance can be opened to more than 115°
(1), you can open the freezer compartment without reposi‐
tioning the hinge. If the opening angle (2) of the appliance
door is less than this, the hinge must be repositioned.
Fig. 5
12.1 Moving the door hinge
The slider for moving the door hinge is located on the back
of the **** freezer compartment door at the bottom.
Fig. 6
u
Close the **** freezer compartment door (1).
u
Grab the **** freezer compartment door from below.
u
Move the slider (2) either to the right or to the left.
13 Reversing the door
Tools
Fig. 7
NOTICE
Live parts
Damage to electrical parts
u
Before changing the door hinge, disconnect the plug at
the mains.
Fig. 8
u
Taking off the soft stop mechanism: Remove the soft
stop mechanism from the ball stud (1). Unscrew the
bracket (2). Remove the ball stud with a screwdriver (3).
Fig. 9
u
Take off the lids.
Fig. 10
u
Undo the screws on all the hinges but do not remove
them.
**** freezer compartment door*
56 * Depending on model and options
