Installation instructions
Washing machine
One-family household
1014123-R03
31/10/2017
1014123-R03
4

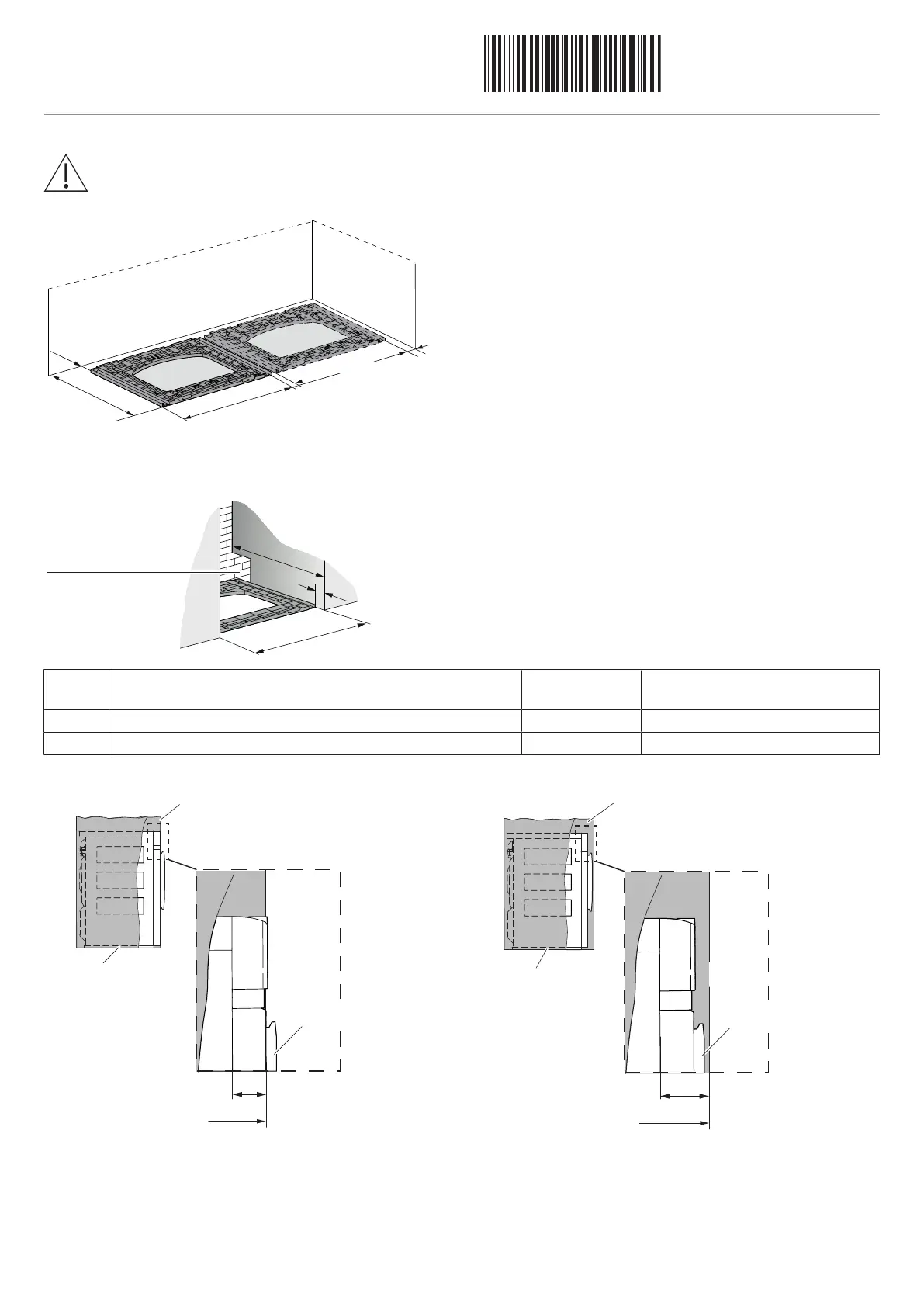

Free-standing position
If a tumble dryer and a washing machine are positioned side by side, keep a distance of min. 5mm between the in-
stallation plates and to the walls at the side and min. 45mm to the back wall. The installation plates for the washing
machine and tumble dryer are the same.
≥5
≥45
555
595
≥5
▸ In order to keep the distance to the wall, fold out the spacers D
on the installation plate.
If an appliance with the V-ZUG-Home option is to be installed:
▸ Connect network cable to the appliance.
Dimensions 45 and 555 only apply if no plumbing fittings are to be
installed behind the appliance.
Positioning in a niche
A
≥
600
B
Cut-out for lateral
connection,
to the left or right
≥100 × 100 mm
Niche height
≥860 mm!
▸ Centre the installation plate in the niche.
If a device is installed with the V-ZUG Home option:
▸ Connect the network cable to the device.
Variant Positioning Niche depth A Installation offset
for installation plateB
1 Appliance door projecting from niche front ≥605 mm 50mm
2 Appliance door recessed behind niche front ≥645 mm 90mm
Variant 1 Variant 2
B
A
Appliance door
Installation plate
Niche
B
A
Appliance door
Installation plate
Niche
