Je bekijkt pagina 26 van 51
Inverter
- 24 -
L wireCAN N wire PE wire

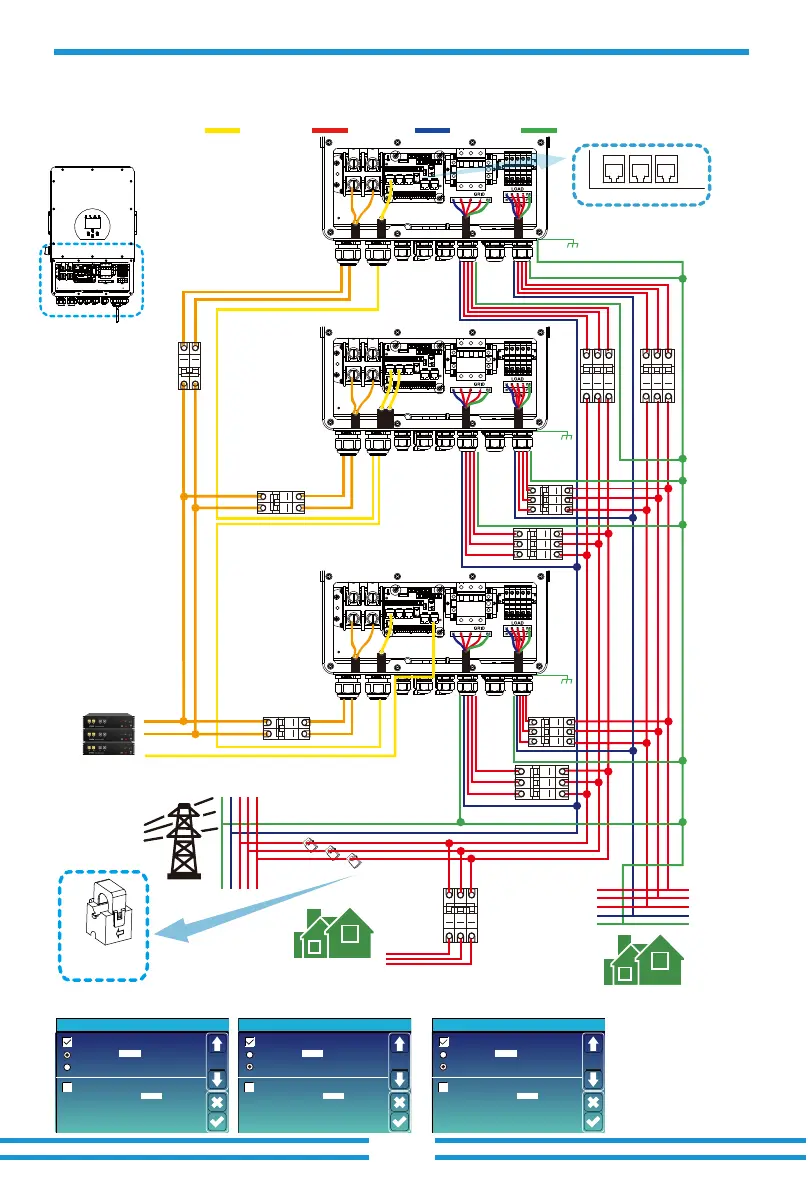

3.12 Three phase parallel connec�on diagram
Parallel
Master
Slave
Modbus SN
Advanced Function
Paral.
Set3
Parallel
Master
Slave
Modbus SN
02
Advanced Function
Paral.
Set3
EX_Meter For CT Meter Select
0/3
No Meter
Parallel
Master
Slave
Modbus SN
03
Advanced Function
Paral.
Set3
EX_Meter For CT Meter Select
0/3
No Meter
Master inverter Slave Inverter Slave Inverter
EX_Meter For CT Meter Select
0/3
No Meter
01
Parallel_A Parallel_B Meter-485
Grid
CT1 CT2
CT3
Backup Load
Inverter
No.3
(slave)
Inverter
No.2
(slave)
Inverter
No.1
(master)
Ground
Ground
Ground
①
④
⑥
⑦
⑧
⑨
⑩
⑤
②
③
Battery pack
Home Load
R S TNPE
R
S
T
N
PE
CT
Arrow pointing
to
inverter
①②③ DC Breaker for battery
SUN 5K-SG-EU: 150A DC breaker
SUN 6K-SG-EU: 200A DC breaker
SUN 8K-SG-EU: 250A DC breaker
SUN 10K-SG-EU: 300A DC breaker
SUN 12K-SG-EU: 300A DC breaker
④⑥⑧ AC Breaker for grid port
SUN 5K-SG-EU: 63A AC breaker
SUN 6K-SG-EU: 63A AC breaker
SUN 8K-SG-EU: 63A AC breaker
SUN 10K-SG-EU: 63A AC breaker
SUN 12K-SG-EU: 63A AC breaker
⑤⑦⑨ AC Breaker for backup load
SUN 5K-SG-EU: 63A AC breaker
SUN 6K-SG-EU: 63A AC breaker
SUN 8K-SG-EU: 63A AC breaker
SUN 10K-SG-EU: 63A AC breaker
SUN 12K-SG-EU: 63A AC breaker
⑩ AC Breaker for home load
Depends on household loads
Max. 10pcs parallel for on-grid and off-grid opera�on.
