12
TD-001538-01-A1

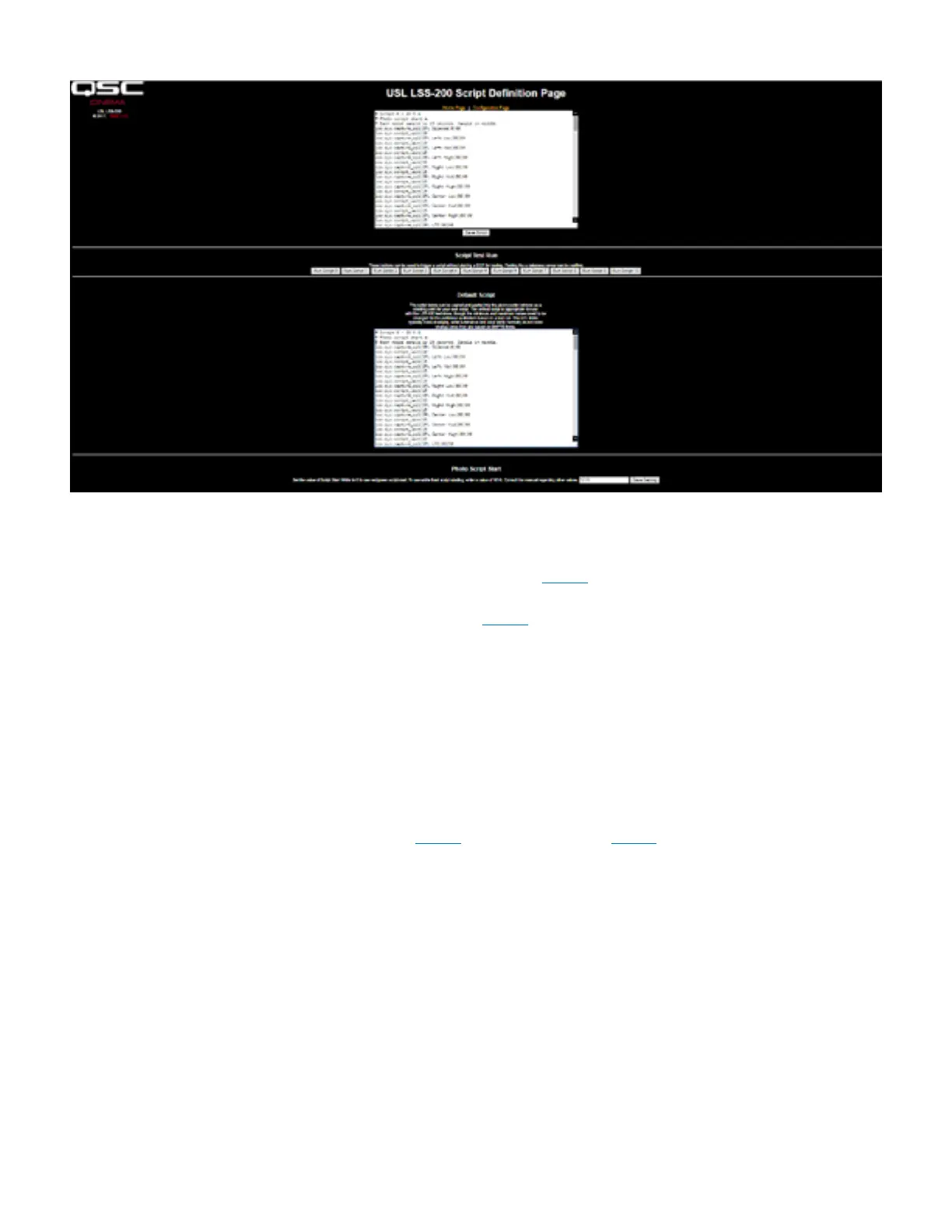

— Figure 12 — LSS-200 Command Script Page
9. Click the “Save Script” button to save the revised script(s).
10. Run the test show a couple times and review the log. It should appear similar to Figure 2 but with the latest values not in red. Measured
values that are not between the specified minimum and maximum are shown in red.
11. Click on a value in the log. A graph of the measured values (similar to Figure 3 but with fewer values) should appear. If the test script has only
run once, no graph will appear. At least two measurements are required to draw the graph.
Script Test Run
The script test run buttons located on the Command Script Definition page allow the user to manually trigger LSS-200 Command Scripts without
having to run the corresponding DCP show normally used. This may be useful when testing the “post to server” commands. Note that the LSS-200
home page shows the number of the currently running script (or “none” if one is not running).
Data Analysis
The LSS-200 presents the captured data in a log (as shown in Figure 2) and a graph (as shown in Figure 3). Out of limit operation is easily
identified in the log by a value being printed in red. The graphs show the measured values along with limit lines allowing easy detection of trends
and out of limit operation. Ethernet Device Discoverer (http://ftp.uslinc.com/?dir=ftp/Products/EthernetDeviceDiscoverer ) can also be used to show
out of tolerance operation within a theater.
Log data is also available as a Comma Separated Value file for analysis in a spreadsheet. Click the CSV link at the bottom of a log page to get the CSV log.
Log data can also be posted to a web server as XML for further analysis and consolidation with data from other sites.
