LSS−100P Installation & Operation Manual
v160318 19
devices. The LSS-100P status messages shows any out of tolerance measurements in the previous
number of days where the number of days is set in the Web Display Configuration Page (figure 5).

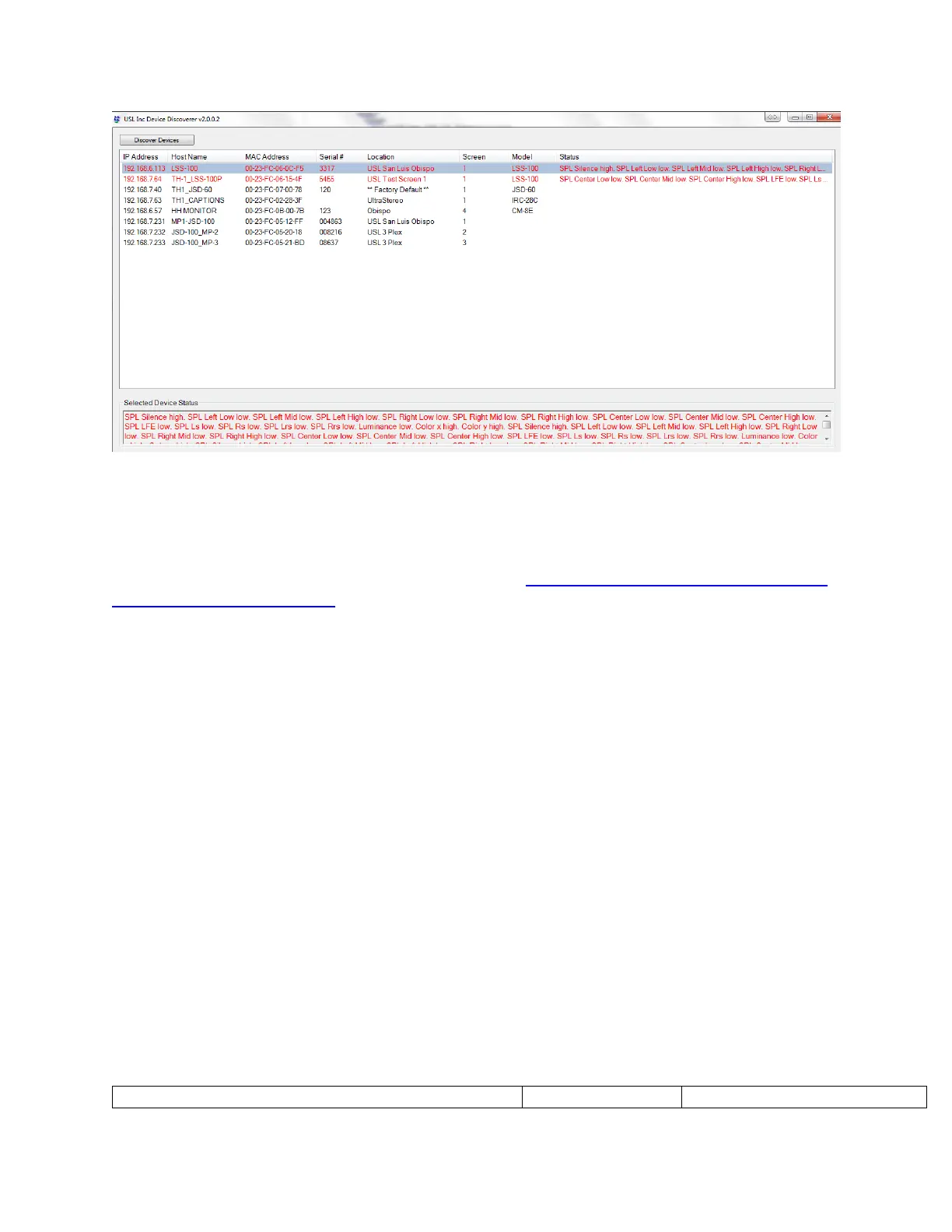

Figure 16 - Windows version of Ethernet Device Discoverer showing LSS-100P status in red.
Ethernet Device Discoverer iOS version
An iOS version of Ethernet Device Discoverer is available at https://itunes.apple.com/us/app/ethernet-
discoverer/id1086192624?mt=8 . This application offers the same set of features as the Windows
version but operates on iOS devices (iPhone, iPad, etc.). Figure 17 shows the opening of the iOS version
of Ethernet Device Discoverer.
Ethernet Device TCP Based Operations
The LSS-100P uses TCP port 10001. It can accept 5 simultaneous TCP connections. Commands are lower
case and terminated with a carriage return (0x0d). Parameters, if any, are separated by tab characters
(0x09) or a pipe character (|). Responses are in ASCII and terminated with a carriage return. If multiple
values are returned, they are separated with tab characters. In some cases, there may be a tab character
after the last response and before the carriage return. The command is not echoed by the LSS-100P.
LSS-100P commands can be tested using Tera Term, RealTerm (both listed below), or telnet on
operating systems that include it (Windows XP, Linux, Mac OS). Since the LSS-100P does not echo
commands or append line feed characters, Tera Term and similar programs should be set for local echo
and CR+LF on receiving a carriage return. These options are in the Setup – Terminal menu on Tera Term.
The LSS-100P commands and typical responses are shown in Figure
17. Note that many of these commands are commonly used in
scripts (described previously), and the lss100.sys.script_run
command can be used to start script execution.
Command
Response
Description
Figure 17 - Etherent Device Discoverer iOS
version
