Appendix D – JSD-60 Accessories
AES/EBU RJ45 Adapters for various servers
The JSD-60 can use CAT5 cable with RJ45 connectors to carry AES/EBU audio from the digital
cinema server to the JSD-60. Use of CAT5 cabling reduces cost and simplifies the installation.
EBU Tech. 3250-E, third edition, states that AES/EBU may be carried over CAT5 cable for 400
meters.
To simplify the use of CAT5 cable for AES wiring, USL makes the following adapters available.
These plug into the DB25 connector on the server. CAT5 cables can then be run to the JSD-60.
Doremi DCP2000 , GDC IMB (25 pin D)
USL JSD-RJMI
Adapter has DB25M wired as per SMPTE EG DC28.307-3103B DRAFT (2004, never adopted) and
RJ-45 jack.
Sony SRXR320P
USL JSD-RJM8
Adapter has DB25M wired with DMA8 pin out and RJ-45 jacks.
JSDV-80 Remote Volume Control
The JSDV-80 remote volume control is connected to the JSD-60 using the automation interface.
The JSDV-80 is typically located in the auditorium.

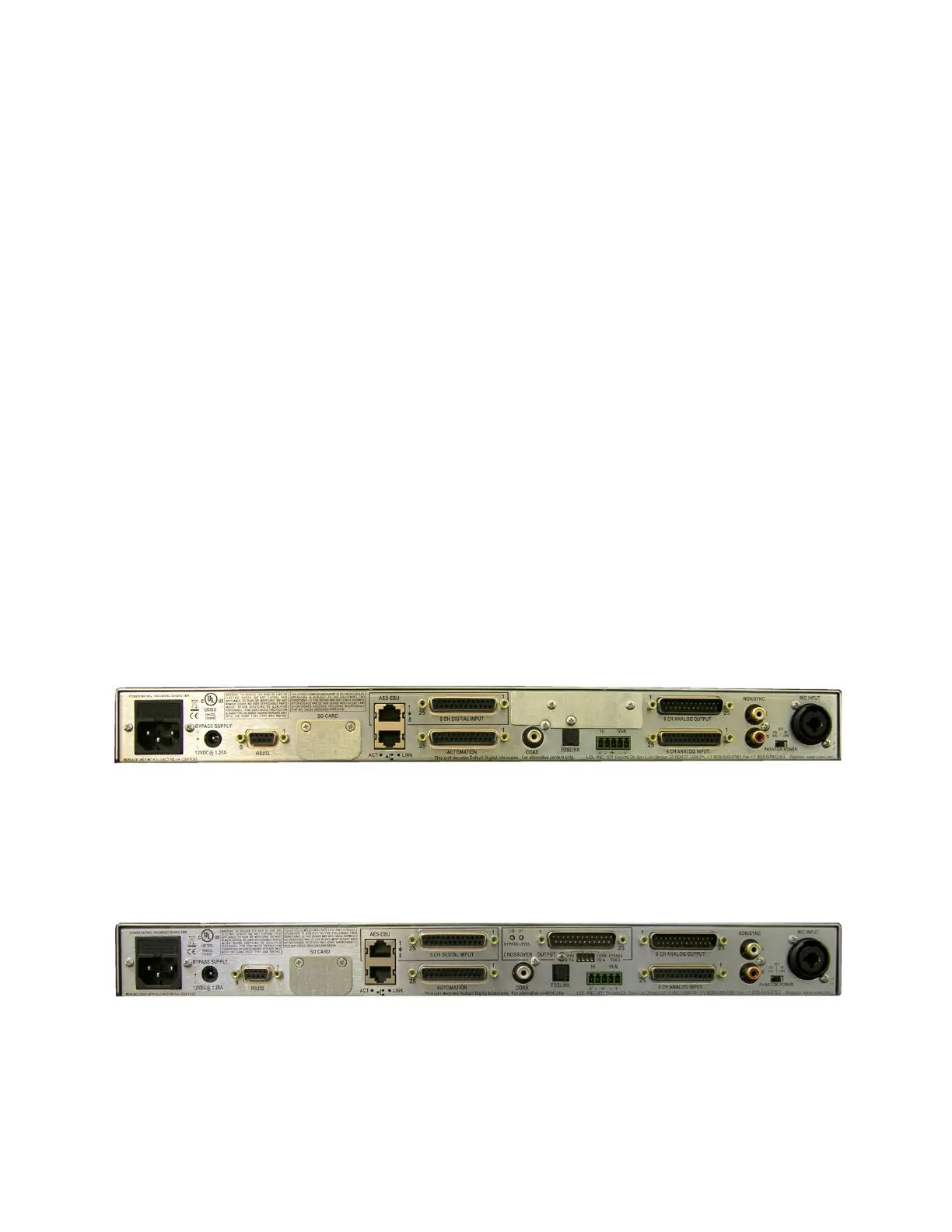

JSD-60L and JSD-60D rear view
JSD-60LX and JSD-60DX rear view
