Package Contents
1
CMS-5000
With selected Storage Option
and Front Panel Option
2
LABEL,
ANTI-TAMPER
LB-004118
1
CMS-5000 Security Guide
TD-001589
1
CMS-5000 Quick Start Guide
TD-001577
1
QSC Warranty TD-000453
Introduction
The innovative CMS-5000 Cinema Media Server supports JPEG-2000 decoding of high frame rate 4K and 2K images with advanced
solid state storage. In addition to an eSATA port and 1G Ethernet ports, the CMS-5000 includes two USB 3.0 ports and a 10G Ethernet
port to enable accelerated content ingest. The CMS-5000 supports immersive audio formats with rendering of up to 64 channels
(DTS:X™) and can be directly interfaced with Q-SYS™, the QSC network platform for integrated sound, picture, and control.

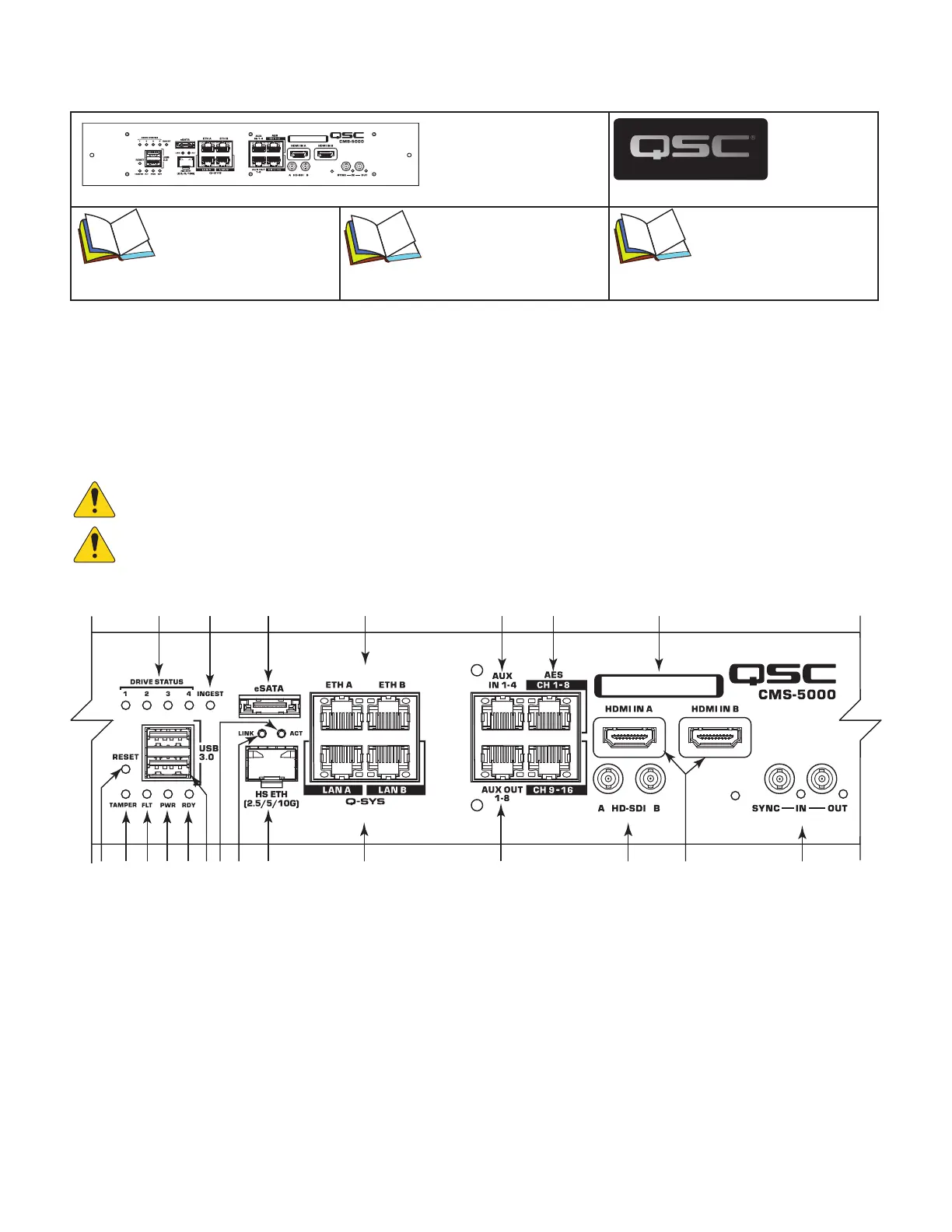

Front Panel Features
NOTE: NOTE: Figure 1 does not show the mounting hole options in order to emphasize the connectors section
NOTE: NOTE: At power up, the POWER LED is on and the READY LED is off. During CMS initialization, all the LEDs except POWER will
blink. Once the READY light is on and no longer blinking, LEDs function as described below. Additional information about LED
status during bootup and test is available in the Troubleshooting Guide.
1. DRIVE STATUS 1-4 LEDs – Blue indicates activity on the installed SSD drives.
2. INGEST LED – Blue indicates DCP scan or ingest active from an eSATA drive.
3. eSATA – Used for ingest of DCP to onboard storage directly from a hard drive.
4. ETH A and ETH B
(CONTROL/DATA) – Use these RJ45s to connect to a 10/100 or 1G Ethernet network to enable control and
monitoring functions. Use the Ethernet network to connect the
CMS-5000
to the following:
• TMS
• Library server
• Closed-captioning transmitter
• Cinema processor (automation control)
• Other Ethernet-controlled devices
— Figure 1 —
1 2 3 4 5 6 7
19 20 2111 12 13 14 15 17 189 108 16
{
{
{
{
