Red braking

element 37,5

Ω 100W

DRY.Maxi

black pipe

dia. 42 mm

90 VA

transformer

with 12Vac

and 21Vac

outputs

Powerboard

Capacitors for

every motor

6,3 μF

230V cooling

fan

230V Selonoid

Actuator for Dry.Maxi

230V Double

Body Steam

Selonoid Valve

Motor revolu-

tion sensor kit

DRY.Maxi metal

pipe dia. 16 mm

Washing Circuit

Group

Yellow braking

element 75Ω,

147W

EU 6.77 KW Heating

Element US

Contactors

EU 20A 230V 4 Poles

US GE 25A 230V 50/60H

Power terminal Safety thermostat

Asynchronous single phase motor

US 208-240 VAC 60Hz

Asynchronous single

phase motor

US 208-240 VAC 60Hz

230V cooling fan

Capacitors for every

motor 6,3 μF

90 VA transformer

with 12Vac and

21Vac outputs,

Powerboard

Internet

connection board

Safety thermostat

230V Solonoid

Actuator for

Dry.Maxi

230V Double Body Steam

Selonoid Valve

Motor revolution

sensor kit

DRY.Maxi metal pipe

dia. 16 mm

Washing Circuit Group

Gas igniter Kit

Gas valve

EU 210 VDC

USUS, Japan, Korean and

Australian ovens 120 VDC

Blower

EU 230V 35KW Venturi Prmx

US, Japan, Korean and Australian

ovens 120V 35KW Venturi Prmx

EU 240V 50/60HZ Ignition Box

US, Japan, Korean and Austra-

lian ovens 120V/60HZ Ignition

Box

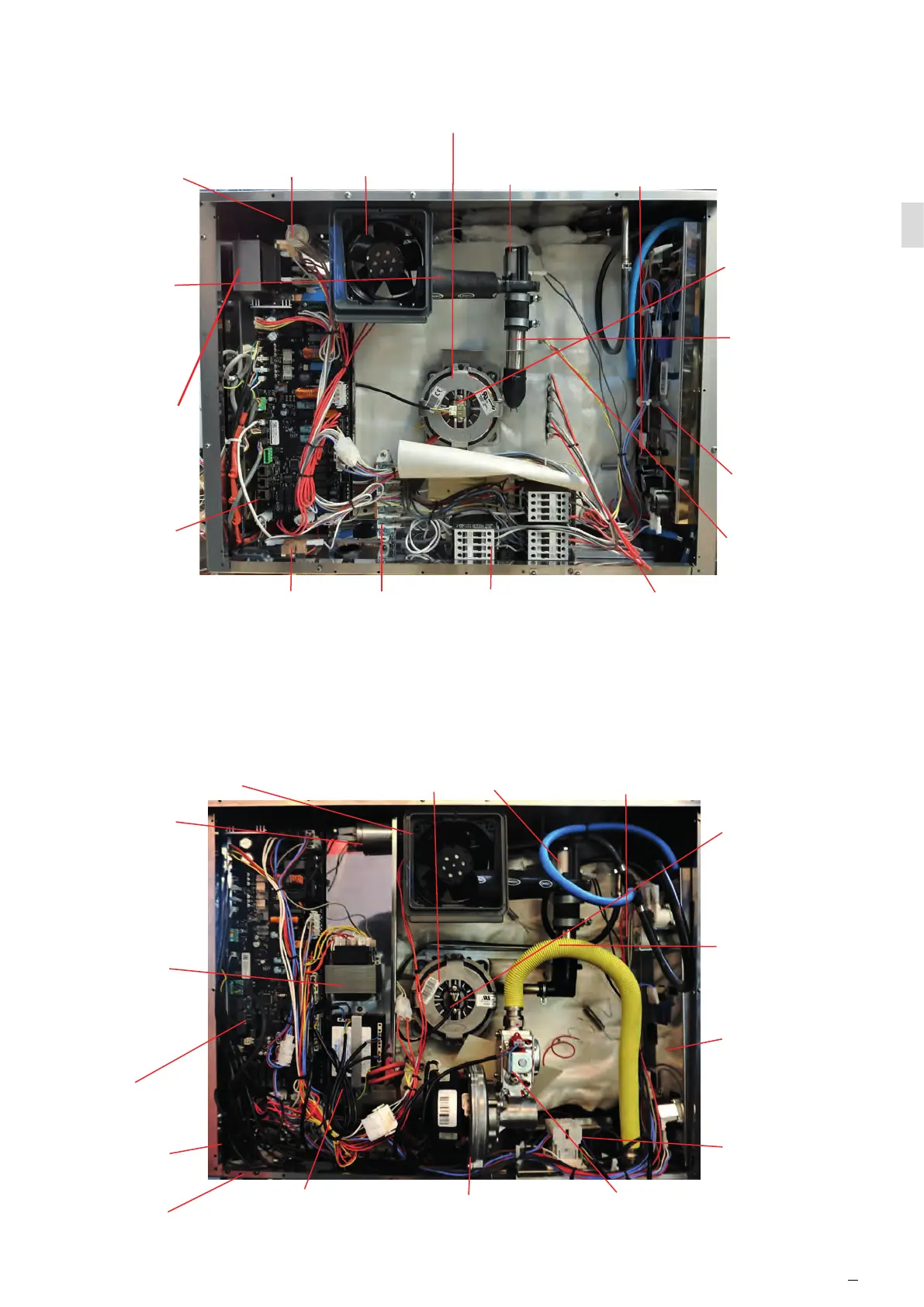

COMpONENTS ON THE BACK Of THE ELECTrIC OvEN

COMpONENTS ON THE BACK Of THE gAS OvEN
