98
15.11.2023
EN
1. Place the blade in the handle as shown on the
picture.
2. Put the knob securing the knife blade in the right
place (as shown on the picture) and adjust it.
3. Put the position locator in the designated place.
4. The knife blade is replaceable. To replace it, break
o a piece of the blade from the technical knife
(with a broken blade).
5. Remove the screw and replace the blade.
3.3. DEVICE USE
3.3.1. PREPARING THE PATTERN
WITH A CUTTING DEVICE
1. Place the position locator on the printed (or
drawn) pattern/design. With one hand, grab the
position locator and press it against the paper,
and with the other hand, rotate the handle until
the pattern disc is cut out.
3.3.2. PREPARING BUTTONS
1. Place the metal cap in the „A” mold. Then place
the previously prepared pattern on it (cut out in
the correct size). Put a transparent foil at the end.
2. Place the metal clasp in the „B” mold.
CAUTION! Remember that the clasp (safety pin) is
pointing downwards.
3. Move the „A” mold under the lever and press
down. All items will be in the upper mold.
4. Move the „B” mold under the lever and press down.
5. The button is ready.
4
5
6
4
2
1
3
5
EN
1. Prepare the base of the device.
2. The upper mold should be inserted into the hole
under the lever.
3. In the rotating base of the machine are places
described „A” and „B”, in which you should
respectively insert molds „A” and „B”.
3.2.3. CUTTING TOOL ASSEMBLY
1. Position locator
2. Knife
3. Knob (adjustable)
4. Handle (adjustable)
3

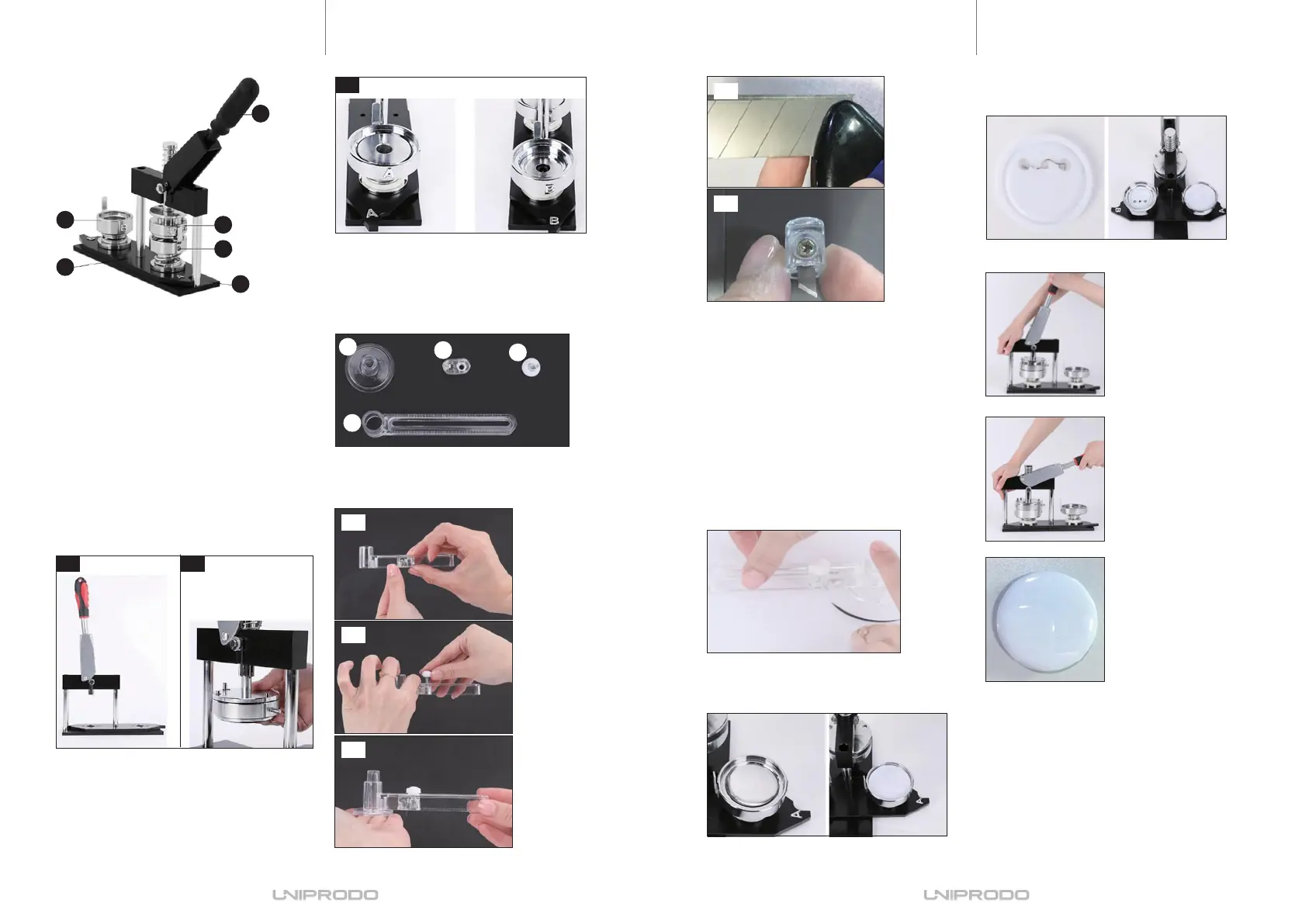

1. Lever handle
2. Upper mold
3. „A” mold
4. „B” mold
5. Rotary mold base
6. Base of the machine
ACCESSORIES:
1. Cutting device
2. Metal cover
3. Transparent foil
4. Metal clasp
3.2. PREPARING FOR USE
3.2.1. APPLIANCE LOCATION
The device should always be used when positioned on
an even, stable, clean, fireproof and dry surface, and be
out of the reach of children and persons with limited
mental and sensory functions.
3.2.2. ASSEMBLING THE DEVICE
1 2
1
2
3
4
1
2
3
3.1. DEVICE DESCRIPTION
IMPORTANT:
• The transparent foil must be suciently larger than
the badge. For example, a badge with a diameter
of 25 mm should be covered with a transparent foil
with a minimum diameter of 35 mm.
• Only badges and transparent foil covers are
delivered with the device in sizes depending on the
device model.
• Here is a drawing showing the dimensions of the
badges and the corresponding dimensions of the
transparent foil coatings:
