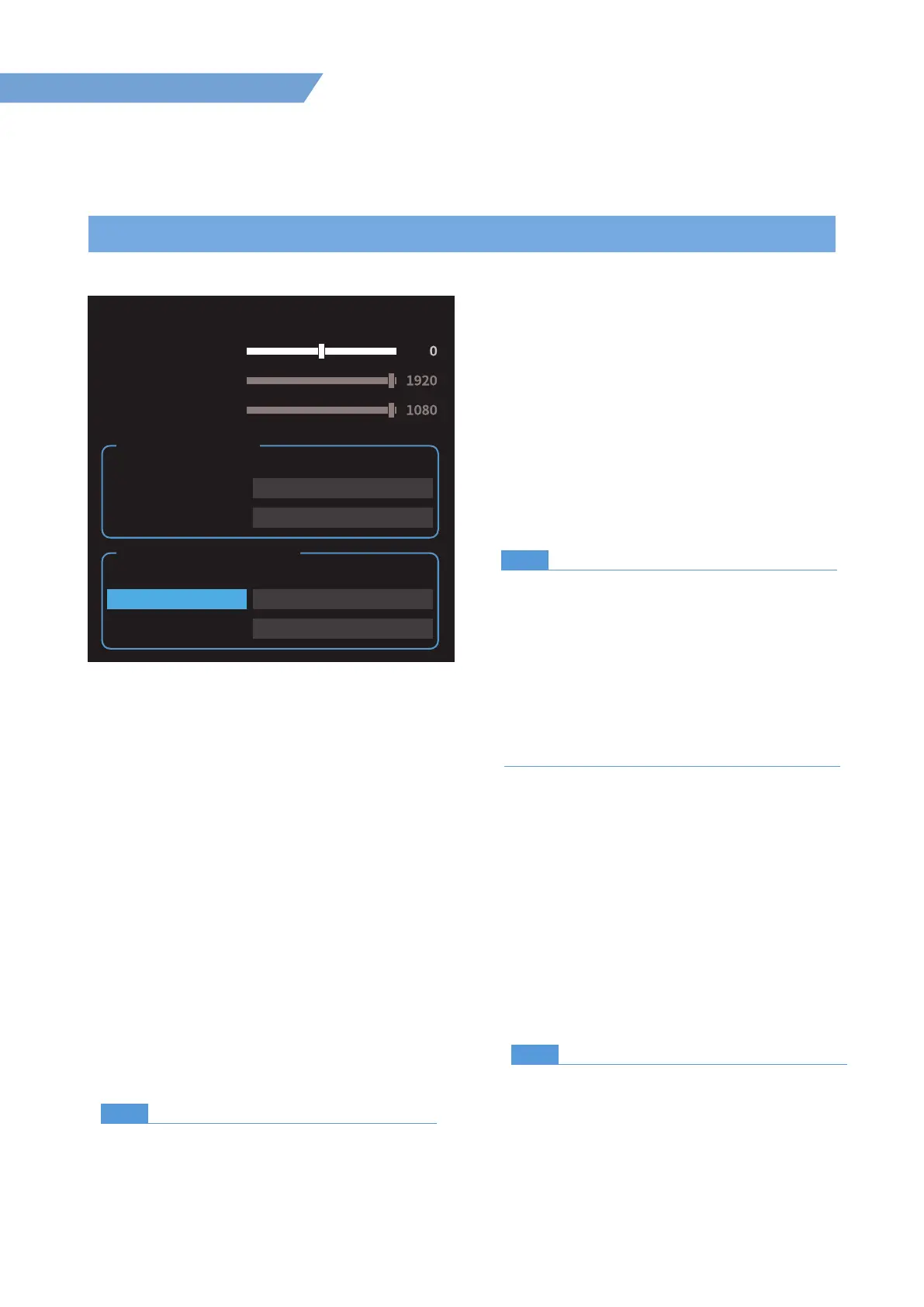

05 MENU OPERATIONS
24
4K/UHD 12G-Quad Multi View Monitor
[1] PICTURE
● Camera LUT
- Apply the preloaded camera LUT for the
input signal.
CAMERA LUT
- Select the desired camera LUT to apply to
the input signal.
- Selectable mode:
[OFF], [LOG-C], [C-LOG], [S-LOG1],
[S-LOG2], [S-LOG3], [RED GAMMA3],
[RED GAMMA4]
SHARPNESS
USER ASPECT H
USER ASPECT H
LXM-180P
Camera LUT
CAMERA LUT
CAMERA LUT OUT
OFF
OFF
Custom 3D LUT
3D LUT SETTING
SETTING
3D LUT ENABLE
OFF
● SHARPNESS
- Adjust the sharpness level of the image.
- Adjustable range:
● USER ASPECT H (To be supported)
- Adjust the aspect ratio of the displayed
image by setting the horizontal size of the
screen.
- Adjustable range: [0] to [1920]
- Activated only when the [SCAN] mode is
set to [USER ASPECT].
● USER ASPECT V (To be supported)
- Adjust the aspect ratio of the displayed
image by setting the horizontal size of the
screen.
- Adjustable range: [0] to [1080]
- Activated only when the [SCAN] mode is
set to [USER ASPECT].
Note
- USER ASPECT function supports the
1920 x 1080 HD signals only.
CAMERA LUT OUT
- [OFF]: The original input video is output
by the SDI Output ports.
- [ON]: The camera LUT applied image is
output by Processed Output port
● CUSTOM 3D LUT
- Allow users to import the 3D LUT les
which are created with a color grading
tool or other software to the monitor and
then apply them to the input video.
Note
- The selected CAMERA LUT is applied to the
image which is currently displayed on the
screen.
- The CAMERA LUT function is supported in the
Single link video mode and the Quad linke
video mode.
In the Multi-View mode, this function is not
supported.
Note
- The selected 3D LUT is applied to the image
which is currently displayed on the screen.
- The Custom 3D LUT function is supported in
the Single link video mode and the Quad link
video mode.
In the Multi-View mode, this function is not
supported.
