06 FUNCTION DETAILS
49
4K/UHD 12G-Quad Multi View Monitor
[1] Multi-View Settings
The LXM series monitors oer an extremely
useful and advanced Quad-View Display
mode and Picture-by-Picture Display Mode.
If you push the [MULTI-VIEW] button, you can
select Quad-View mode or Picture-by-Picture
mode.

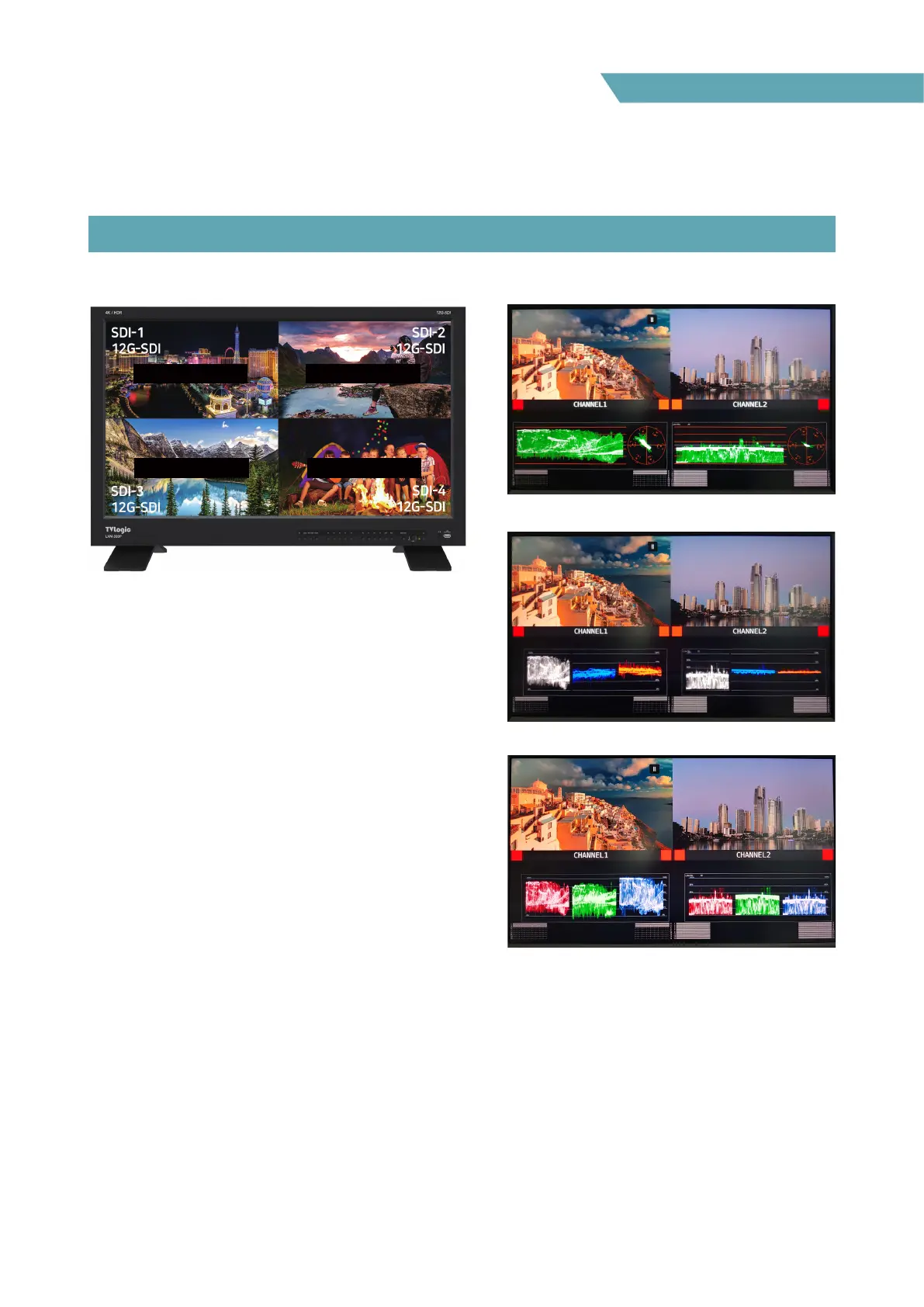

1. Quad-View Display mode
Any video input from SDI-1 to SDI-4, HDMI,
SFP-1, SFP-2 can be assigned to any quadrant.
Any video format from HD, 3G, 6G, 12G can
be displayed to each quadrant. So, four
dierent 12G-SDI videos can be displayed at
the same time.
*Functions which can be activated in Quad-
View Display mode: Audio Level Meter, UMD
*In Quad-View Display mode, the brightness
of the whole screen follows the setting of
Color Standard of SDI-1 input.
*The audio of the Channel 1 source only is
output from the speakers or the phone jack.
2. Picture-by-Picture Display mode
Any video input from SDI-1 to SDI-4, HDMI,
SFP-1, SFP-2 can be assigned to the left and
right screen. Any video format from HD, 3G,
6G, 12G can be displayed to each screen.
The two dierent 12G-SDI videos can be
displayed at the same time.
Waveform, Vector Scope, Audio Level Meter(16Ch), UMD
Waveform YCbCr, Audio Level Meter(16Ch), UMD
Waveform YCbCr, Audio Level Meter(16Ch), UMD
*Functions which can be activated in Picture-
by-Picture Display mode: Waveform, Vector
Scope, Audio Level Meter, UMD
*In Picture-by-Picture Display mode, the
brightness of the whole screen follows
the setting of Color Standard of SDI-1 input.
*The audio of the Channel 1 source only
is output from the speakers or the phone
jack.
CHANNEL 1 CHANNEL 2
CHANNEL 3 CHANNEL 4
