05 MENU OPERATIONS
37
4K/UHD 12G-Quad Multi View Monitor
[4] GPI
Bit 1
(Tally2)
Bit 0
(Tally1)
Operation
0 0
CHANNEL1
0 1
CHANNEL1
1 0
CHANNEL1
1 1
CHANNEL1
Bit 3
(Tally4)
Bit 2
(Tally3)
Operation
0 0
CHANNEL1
0 1
CHANNEL1
1 0
CHANNEL1
1 1
CHANNEL1

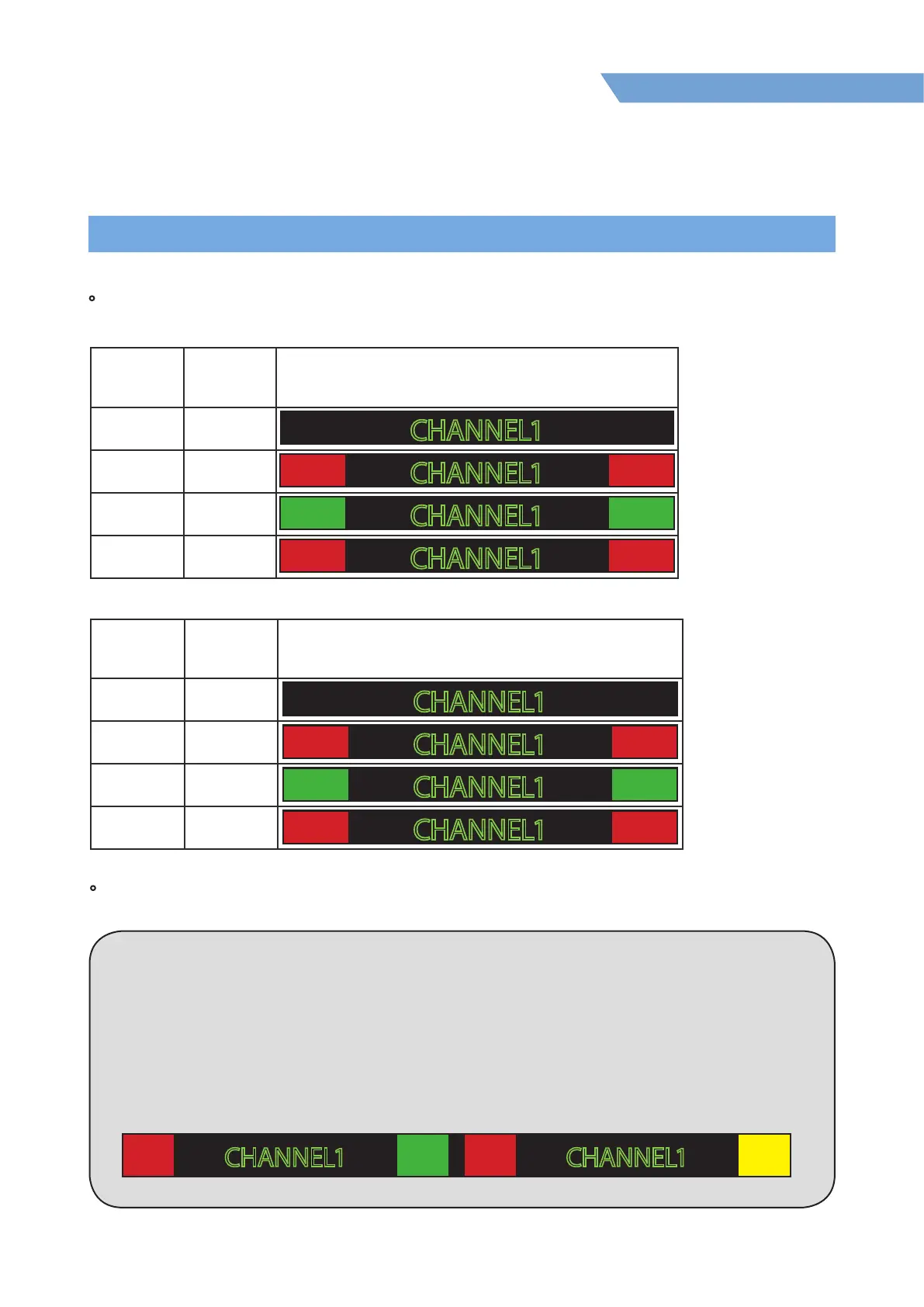

When [UMD DISPLAY] is set to [D-UMD(TSL-D8C) and [D-UMD TALLY TYPE] and [TALLY1 to
TALLY4 COLOR] are set as follows, tallies are displayed like the image below.
D-UMD TALLY TYPE USER COLOR
TALLY1 COLOR RED
TALLY2 COLOR GREEN
TALLY3 COLOR RED
TALLY4 COLOR YELLOW
CHANNEL1 CHANNEL1
• Tally Type - Default
- TSL_S8C(Single 8 Characters) & TSL_S16C(Single 16 Character)
- TSL_D8C(Dual 8 Character)
• D-UMD Tally Type - USER COLOR
- Allows to set the color of TALLY1 to TALLY4.
