68 tvONE

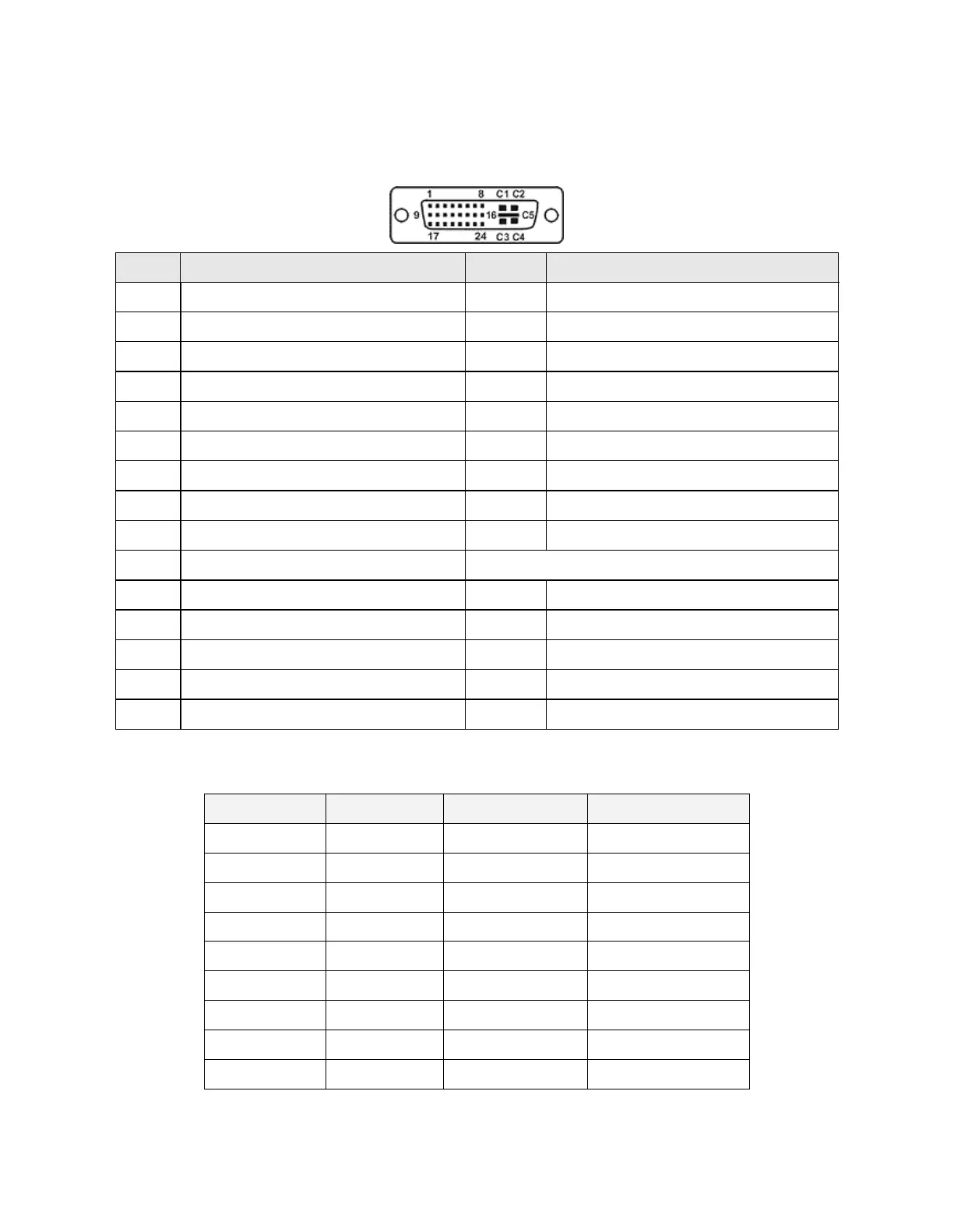

Connector pinouts
DVI-I connector
PIN#
SIGNAL
PIN#
SIGNAL
1
T.M.D.S DATA 2-
16
HOT PLUG DETECT
2
T.M.D.S DATA 2+
17
T.M.D.S DATA 0-
3
T.M.D.S DATA 2/4 SHIELD
18
T.M.D.S DATA 0+
4
Not used
19
T.M.D.S DATA 0/5 SHIELD
5
Not used
20
Not used
6
DDC CLOCK
21
Not used
7
DDC DATA
22
T.M.D.S CLOCK SHIELD
8
ANALOG VERT. SYNC
23
T.M.D.S CLOCK+
9
T.M.D.S DATA 1-
24
T.M.D.S CLOCK-
10
T.M.D.S DATA 1+
11
T.M.D.S DATA 1/3 SHIELD
C1
ANALOG RED
12
Not used
C2
ANALOG GREEN / CV
13
Not used
C3
ANALOG BLUE
14
+5V POWER
C4
ANALOG HORZ SYNC
15
GND
C5
ANALOG GROUND
RS232 / RS485 / RS422 D9 socket
Pin
RS-232
RS-422 Full duplex
RS-485 Half-duplex
1
-
TX- (from unit)
A (link to pin 9)
2
TX (from unit)
3
RX (to unit)
4
-
RX+ (to unit)
B (link to pin 6)
5
GND
GND
GND
6
-
TX+ (from unit)
B (link to pin 4)
7
CTS (to unit)
8
RTS (from unit)
9
-
RX- (to unit)
A (link to pin 1)
• ‘To unit’ means signals are coming from a controller and being received by the unit.
• ‘From unit’ means signals are coming from the unit and being sent to a controller.
• RS-422 may require termination across the RX+/- pins (usually 120 Ohm).
