MNL- C2-6204-V3.00 3

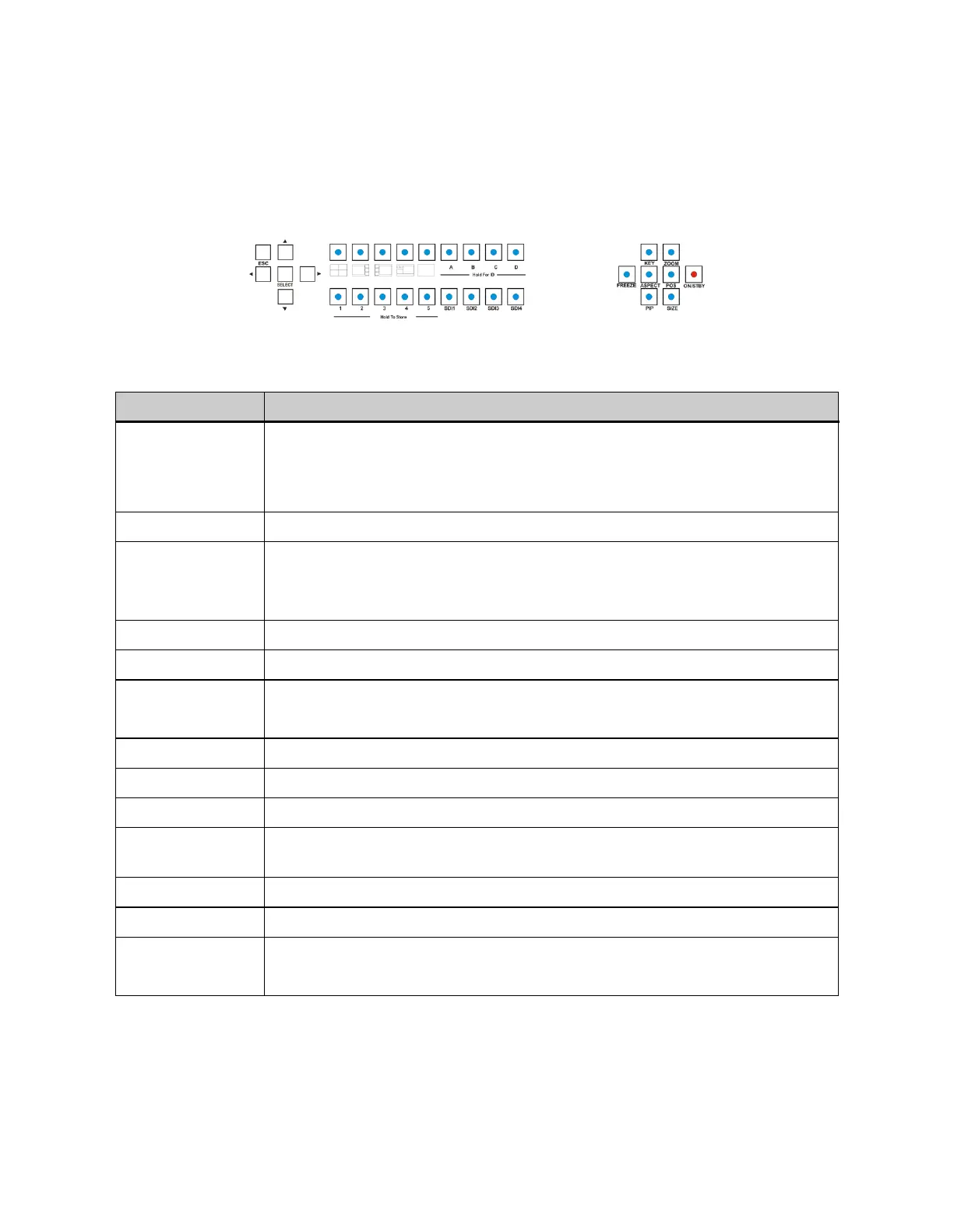

Front panel controls

The range of buttons on the front of the unit provides the user with quick access for selecting a variety of

inputs and features.

The cross-hair (up/down/left/right) buttons on the front panel provides the user with a way of navigating

the Liquid Crystal Display menus (LCD) which is detailed in a later section.

Button controls

The following buttons are available on the front of the unit:

Button

Button Function

Menu navigation &

adjustment

buttons.

Up / down / left / right / SELECT allow quick and easy access to various menu

settings. Press and hold SELECT to store current settings into memory. They will

then be restored on power-on, or when a Restore is done. See next section for

more information.

Presets 1 to 5

Recalls a preset. These start off blank, but are available to the user.

Presets 6 to 10

(shown with

default setups)

Recalls a pre-defined present, but can be overridden by the user.

A / B / C / D

Selects which of the 4 windows on the screen to adjust.

SDI1 to 4

Selects the input for the currently selected window.

KEY

Enables keying for currently selected window – see ‘Adjust keyers’ menu.

(Key color defaults to black, so black foreground will disappear.)

ZOOM

Jumps to the ‘Zoom’ menu item.

FREEZE

Freezes the currently selected window

CYCLE

Cycles the sources through the 4 windows.

POS

Jumps to the Pan or Pos menu item to allow immediate panning or positioning of

the image.

PIP

Activate picture-in-picture mode for the currently selected window.

SIZE

Jumps to the ‘Shrink’ menu item to allow the current window to be re-sized.

STANDBY

Hold in to put the unit into Standby (power-save) mode.

Press once to come out of Standby mode.

Menu navigation buttons

The LCD is controlled from the front panel by using these buttons. These functions let the user navigate

through the menu structure or change a parameter, and are detailed in a later section.
