MNL- C2-6204-V3.00 17
‘Aspect adjust’ = ‘Pixel’
These menu items work together to specify the exact co-ordinates and size of the source image (within
the video source) and the position and size of where this is placed in the output video signal – in other
words the ‘In’ and ‘Out’ positions and sizes.

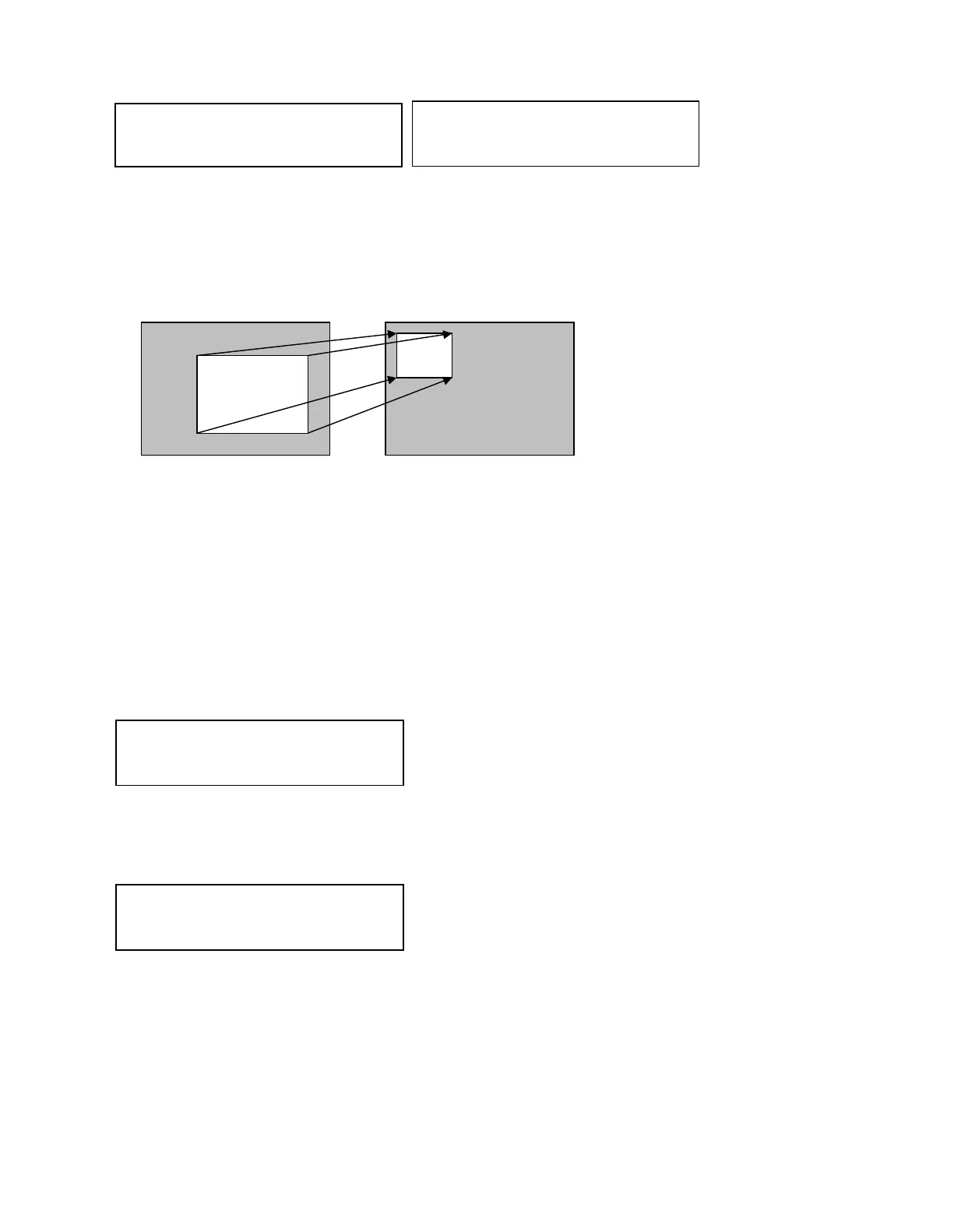

The diagram below should help to clarify the function of these values:
In the example above, ‘In’ has been set to 300,150 as its top-left source co-ordinate, with a size of 750,400.
‘Out’ has been set to 50,50 (i.e. close to the top left) with a size of 250,300.
The scaler will then ensure that the whole of the source (of size 750 by 400) is scaled to the required
output (of size 250 x 300).
The adjust keyers menu
Please note that not all units have this sub-menu – it is only present on units with overlaying abilities.
On page 64 is a section titled ‘COMMON OPERATIONS’ – this gives a step-by-step guide to keying out a
color.
This menu item turns keying On or Off for the current foreground. A keyed image is one image
superimposed over another – such that portions of the top image are made transparent (keyed out), so
that the background image can show through. The following settings allow you to vary the color(s) that
are keyed out.
This menu item is only present on single-channel scalers – dual and quad-channel scalers have the layer priority
set within the ‘Adjust Windows’ menu.
This menu item allows you to swap the foreground and background images when Lock mode is set to
Lock & Mix. It will have no effect in any other mode (since no background is present).
Normally, your foreground is the input (window) source and your background is the lock source. This
then allows you to superimpose any graphics or video input on top of the lock source by keying out a
certain color or range of colors in the input source. Swapping them means that the input source moves to
Adjust windows
In [ 300] , 150 750, 400
Adjust windows
Out [ 50] , 50 250, 300
Adjust keyers
Keyer enable [Off]
Adjust keyers
Swap fore/backgrnd [Off]
IN
OUT
0 1024
0 1024
0 768
0 768
