10 TQ Series Quick Start Guide 11

Lake Preset Overlays and ApplicationNotes

All TQ series loudspeakers exclusively use Lake XP pre-sets via Lab Gruppen PLM+ and D series L platforms and the forthcoming IPX FiR-X pre-sets.

No other amplier and DSP platforms are supported.

The TQ series has a powerful yet simple pre-set strategy utilizing the latest functionality of Lake software, along with new BLEQ overlays.

Pre-set data is found either via the Lake Load Library, or can be downloaded from www.turbosound.com

TQ12M and TQ14M loudspeakers each have individual 1 way passive and 2 way Bi-Amp FIR base pre-sets (1 channel DSP/AMP, Bi-Amp 2 channel DSP/AMP), full range

or with subwoofers.

CAUTION: Do not combine TQ12M or TQ14M loudspeakers on the same amplier / DSP circuit/s. Failure to follow these instructions may lead to damage to

the equipment.

CAUTION: Pay careful attention to output patching.

TQ12M and TQ14M modules are based on the XP module from Lake software.

This QSG refers to REV2.2 XP presets.

Lake software V8.1 or above must be used.

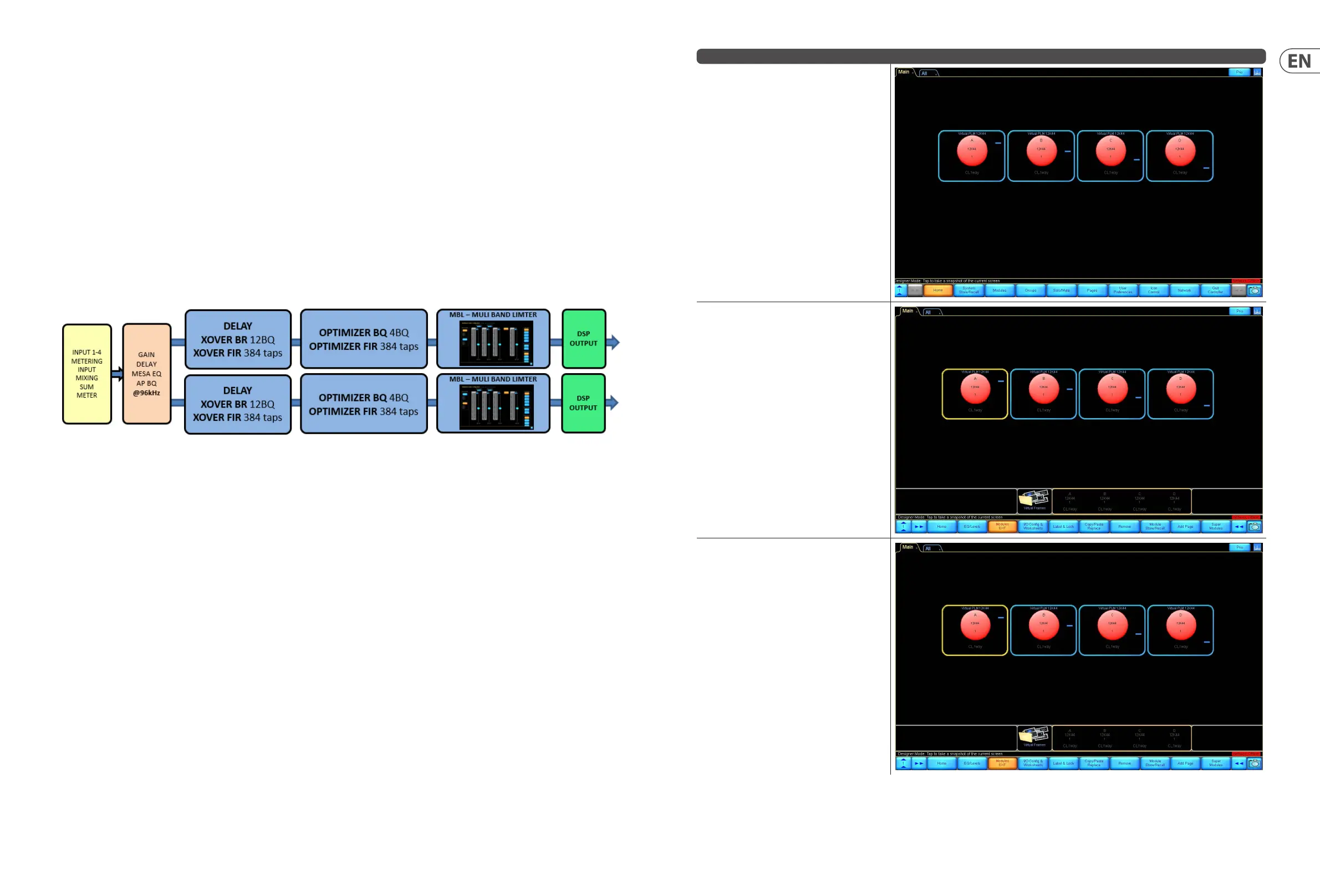

LakeXP signal ow:

The download of the Lake controller includes the Lake Controller Operation Manual, which is a full tutorial of the Lake Controller and compatible hardware such as

PLM+ series ampliers

Within this QSG, we focus on the Turbosound TQ series workow and pre-set strategy, and assume basic working knowledge of the Lake Controller.

DESCRIPTION OVERLAY

1.1: Frame (Amplier) is in the Main workspace page

Here we can see a default PLM12k44 frame with no

DSP pre-set modules loaded.

How to load a module from the Lake Load Library:

Left-click on Module A in the frame.

Module A is now outlined in yellow, and the buttons

at the bottom of the workspace show various module

options. The Modules button is also highlighted there.

To Load a module:

Click the ‘ Module Store/Recall’ button.
