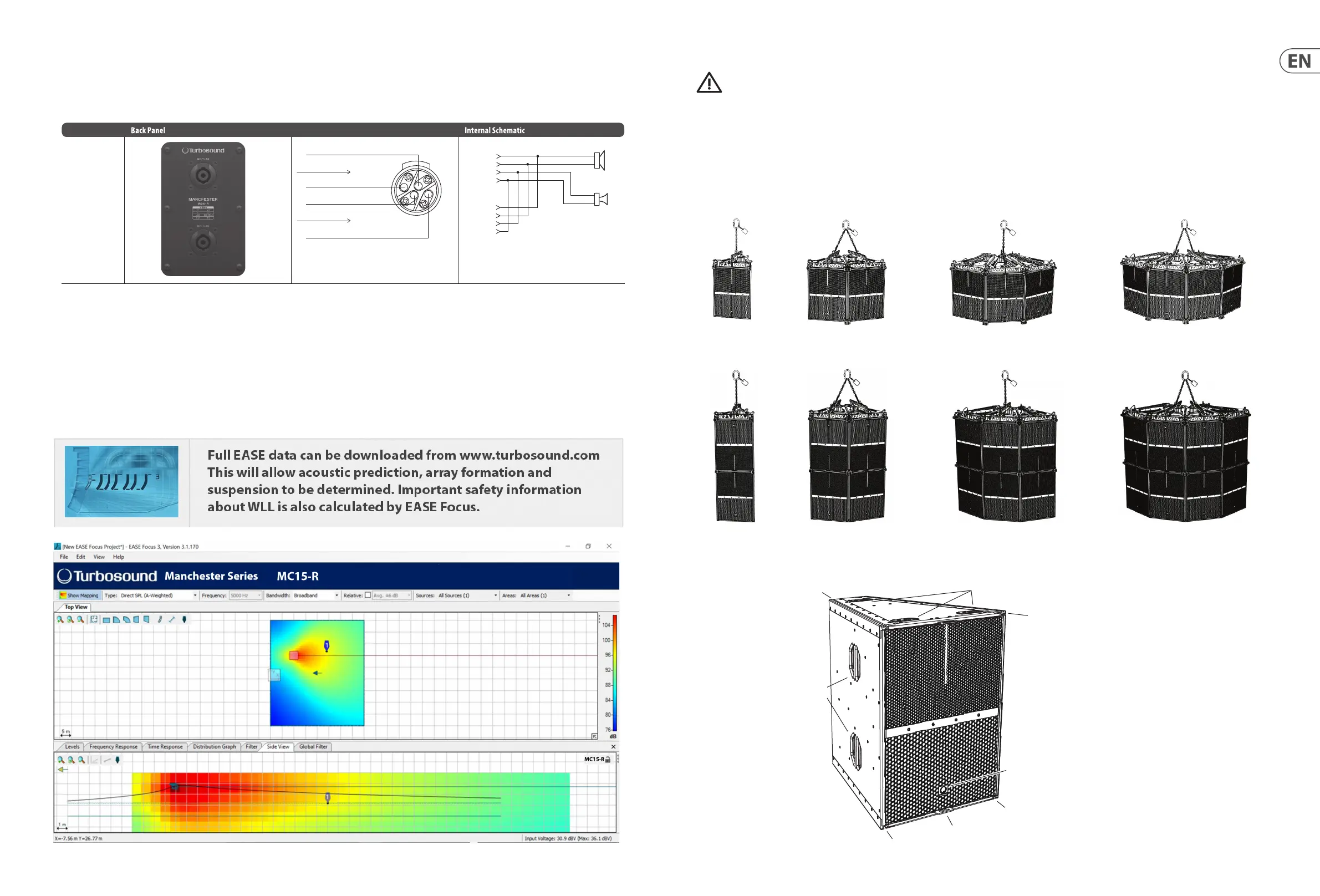

8 MANCHESTER MC15-R Quick Start Guide 9

Connections

Caution: It is mandatory to use the ocial factory Lake pre-set. Failure to do so will result in component failure of the MC15-R passive crossover and transducers.

No other 3rd party DSP or Ampliers are supported

Rigging and Acoustic SimulationSoftware

The MC15-R has 3 main rigging accessories: the MC15-FB (Fly Bar), the MC15-RS (Rigging Set) and the MC15-RC (Rigging Chain) these accessories comply with BGV-C1

rigging standards.

The MC15-R is an arrayable product, and it is supported in Ease Focus 3 for either stand alone use, with Manchester series subwoofers or as part of larger

Manchester series systems.

EASE Focus 3 is an acoustic simulation program, available as a free download from https://www.afmg.eu/en/ease-focus

Note: The graph below is typical of EASE Focus 3 data. Use the actual program for exact data for these speakers.

Connector

MC15-R

Input Low +

Amplier Channel 1

Amplier Channel 2

Input Low -

Input High +

Input High -

NL4

Input/

Link

NL4

Input/

Link

LF 1

MHF

MC15-R Installation

Safety Warning: Only authorised and certied personnel shall design and install suspended congurations. Incorrect installation may lead to death or

permanent injury.

The use of a secondary safety is a mandatory safety requirement.

The optional accessories include the MC15-FB y bar, the MC15-RS rigging set, and the MC15-RC rigging chain. These allow the MC15-R to be mounted in a number of

dierent congurations, as shown below.

WARNING: Only these accessories shall be used to suspend the MC15-R loudspeaker and to form the arrays as shown.

WARNING: Only the eight combinations shown below are allowable. No other combinations shall be used.

MC15-R Array Examples

1 x 1 1 x 2 1 x 3 1 x 4

2 x 1 2 x 2 2 x 3 2 x 4

Horn

Handles

Interlocking Feet

I-Bar

Channel

I-Bar

Channel

Woofer

Rotatable Badge

Lug

for wheel board

I-Bar

Channel

I-Bar

Channel
