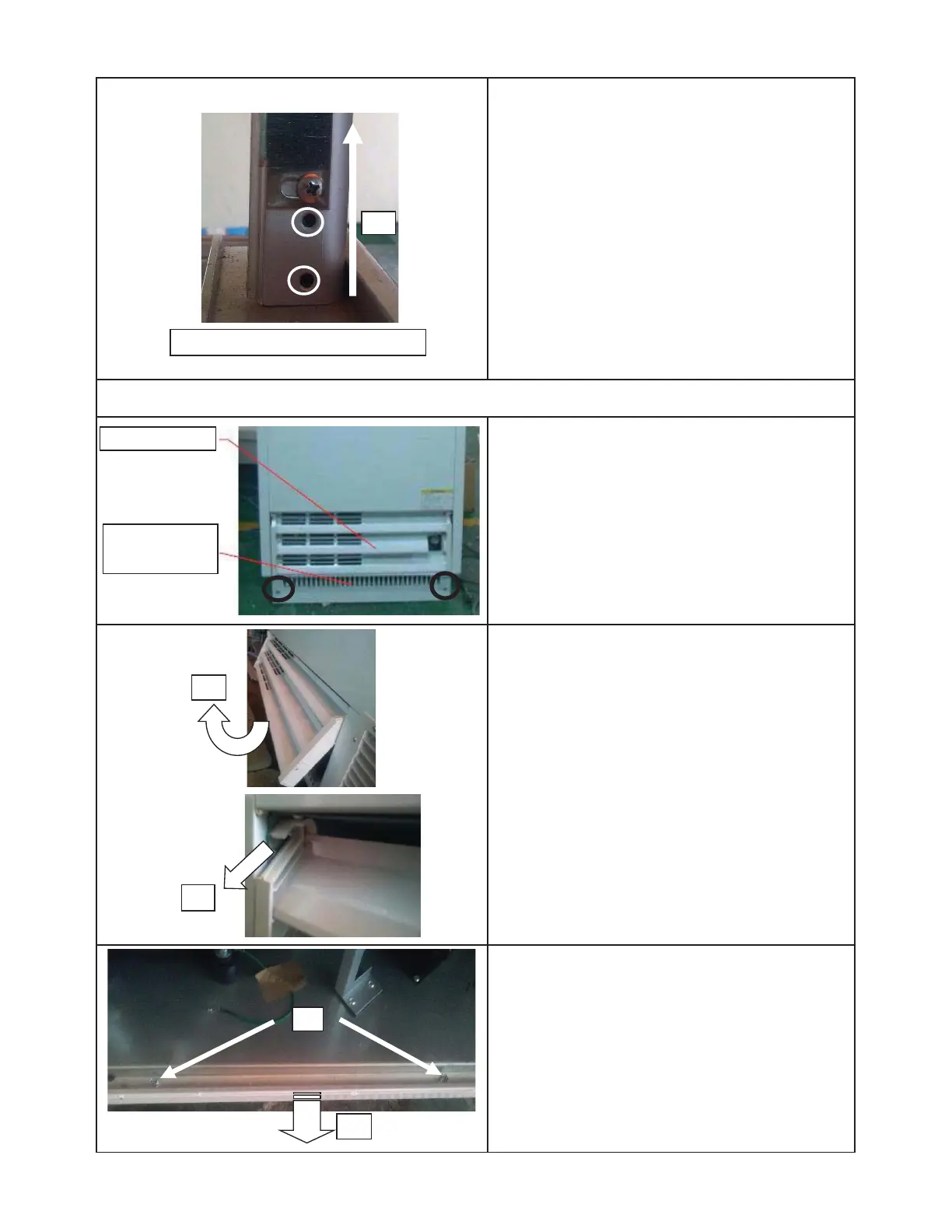

77. REPLACEMENT OF PARTS IN THE MACHINARY ROOM
7. INORDER TO DETACH WINDOW L/R FROM POLE
SUPPORT, RELEASE WRENCH BOLTS IN THE HOLE
BY 2.5 ㎜
WRENCH AND THEN PULL THE POLE UP
TO [6] IN THE VERTICAL WAY. (OR FRAME WILL BE
BROKE.)
8. IF WINDOW L/R CAN NOT BE DETACHED FROM
POLE SUPPORT, YOU SHOULD ORDER BOTH OF
WINDOW L/R AND POLE SUPPORT FOR
REPLACEMENT.
9. PLEASE FOLLOW REVERSE WAY TO ATTACH THE
WINDOW.
6
POLE SUPPORT
ASS'Y GRILL
BRACKET
COMP BASE
1. RELEASE SCREWS ON BOTH SIDE OF BOTTOM BY
(+) DRIVER AND THEN DETACH BRACKET COMP
BASE.
1
2
2. DETACH ASS'Y GRILL BY FOLLOWING THE STEP
AS BELOW;
1. PULL THE GRILL UP LIKE [1]
2. PULL THE JOINT OF GRILL TOWARD [2]
3. RELEASE TWO BOLTS ON [3] BY (+) DRIVER AND
PULL THE POLE TOWARD [4].
3
4
