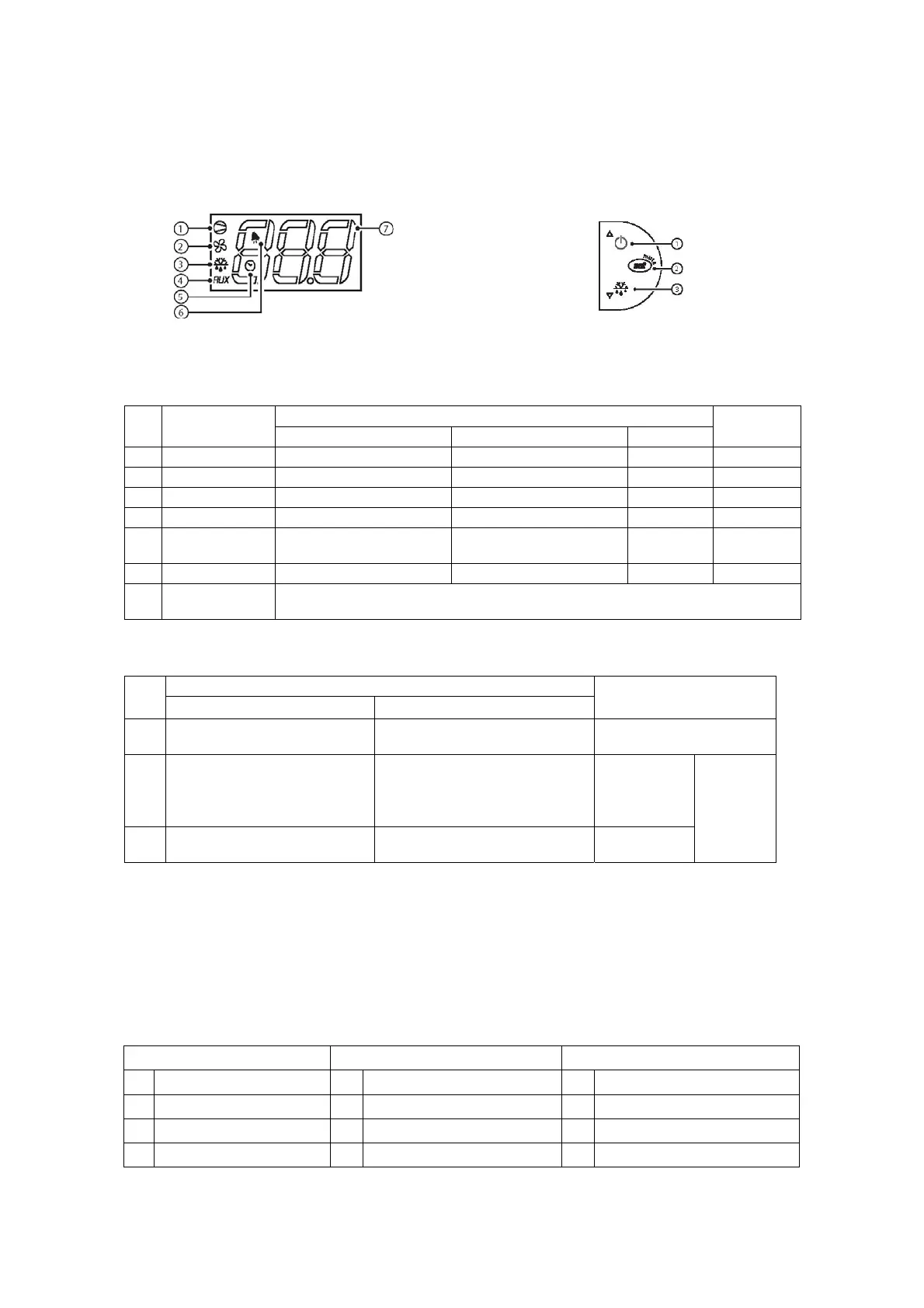

The buttons;
Figure 7. Display
Figure 6. Keypads
Display
BUT.
NO
FUNCTION
NORMAL OPERATION
START UP
ON OFF FLASH
1 COMPRESSOR ON OFF CALL ON
2 FAN ON OFF CALL ON
3 DEFROST ON OFF CALL ON
4 Auxiliary output (AUX) Output active Output not active - ON
5 Clock (RTC)
RTC available, enabled (tEN=1) and
at least one time band has been set
RTC not available or not enabled
(tEN=0) or no time band set
ON (if the clock
is fitted)
6 alarm alarm in progress no alarm in progress on
7 digits
three digits with decimal point and range -199 to 999. See parameters /4, /5, /6 for the type of probe displayed, values
in °C/°F and decimal point
Keypads
BUT
NO.
NORMAL OPERATION
START UP
pressing the button alone pressing with other buttons
1 more than 3 s: switch ON/OFF
pressed together with 3 activates / deactivates
the continuous cycle
2
- 1 s: displays/sets the set point
- more than 3 s: accesses the parameter
setting menu (enter password 22)
- mutes the audible alarm (buzzer)
for 1 s RESET
current EZY set
Pressed
together (2 and
3) activate
parameter
reset procedure
3
more than 3 s: activates / deactivates the
defrost
pressed together with 1 activates / deactivates
the continuous cycle
for 1 s displays
firmware version
Preliminary configurations
Once the electrical connections have been completed, simply power-up the controller to make it
operative.
Turbo air recommends to check that the display does not show any alarm signals (see par.
Table 7), and finally set the parameters as desired (see par. Table 5,6).
The main parameters are as follows:
Control parameters Defrost parameters Alarm parameters
st set point d0 type of defrost Ad temperature alarm delay
rd set point differential dI interval between two defrosts AL low temperature alarm threshold/deviation
dt end defrost temperature AH high temperature alarm threshold/deviation
dP maximum defrost duration
