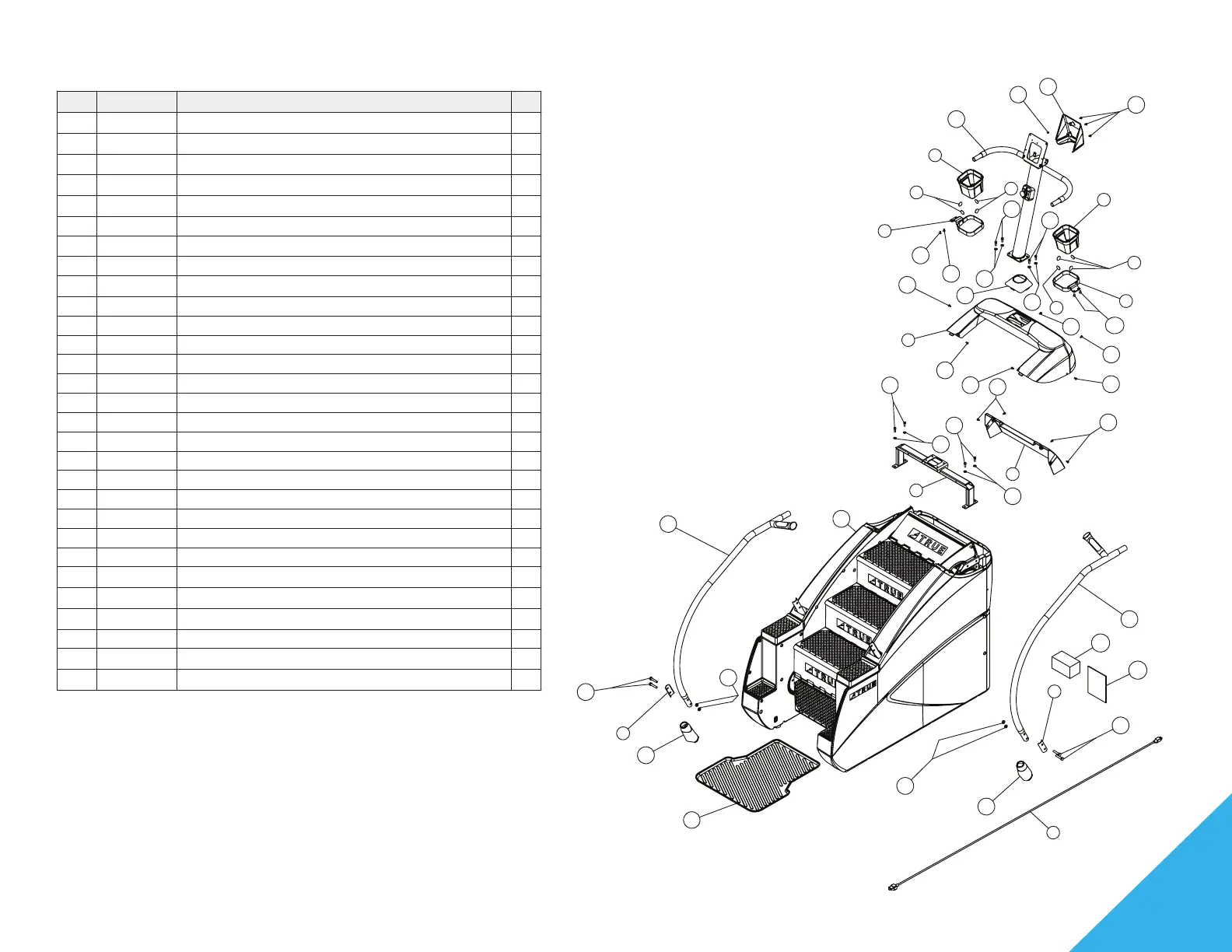

BOX CONTENTS
18
27
24
9
9
5
2
15
15
5
5
5
3
13
13
13
13
13
13
7
8
1
23
25
26
4
11
4
12
6
17
17
10
16
16
28
13
21
22
21
15
13
13
14
19
19
14
22
20
29
ITEM
PART
DESCRIPTION
QTY
1
VC90003-35
WELDMENT, UPPER FRAME
1
2
VC90009-35
WELDMENT, CUP HOLDER RING, LH
1
3
VC90010-35
WELDMENT, CUP HOLDER RING, RH
1
4
VC90019
BRACKET, HAND RAIL CLAMP
2
5
VC90030
INSERT, CUP HOLDER PAD
8
6
VC90080
CABLE, VC900 POWER
1
7
VC90090
SHROUD, TOP, WITH DECAL
1
8
VC90103
SHROUD, INNER GUARD
1
9
VC90111
PLASTIC, CUP HOLDER
2
10
VC90112
COVER, MAST BASE
1
11
VC90117
COVER, HANDRAIL BASE, LH
1
12
VC90118
COVER, HANDRAIL BASE, RH
1
13
VC90148
PHMS, M5-0.8 X 12MM, ZP
14
14
VC90151
WASHER, FLAT, M8 X 18 OD X 1.5, BLK, ZP
4
15
VC90167
BHCS, M8-1.25 X 12MM, SS
4
16
VC90168
HHS, M10-1.50 X 50MM, NYLOC, BLK ZP
4
17
VC90169
HEX NUT M10 X 1.5 X 8 BZ
4
18
VC90175
PHMS, M5-0.8 X 6MM, ZP
1
19
VC90176
SHCS, M8-1.25 X 20MM, BLK ZP
4
20
VC90271
ASSEMBLY, HARDWARE PACK
1
21
VC90205
SHCS, M8-1.25 X 20MM, SS
4
22
VC90206
WASHER, FLAT, M8 X 18 OD X 1.5, SS
4
23
VC90250-35
VC900 BASE ASSEMBLY
1
24
VC90251-35
SUBASSEMBLY, CONSOLE MAST, INTERNATIONAL
1
25
VC90254-35
ASSEMBLY, LEFT HANDRAIL & HR GRIP, FULL DIPPED
1
26
VC90255-35
ASSEMBLY, RIGHT HANDRAIL & HR GRIP, FULL DIPPED
1
27
VC90110
COVER, CONSOLE REAR
1
28
VC900-TRAY
COVER, SWEAT TRAY (OPTIONAL KIT)
1
29
MAN-VC1-0A-35
MANUAL, VC1-0A-35
1
*
*
*NOTE: These parts come
preassembled onto other parts.
**NOTE: These parts are included in
the hardware pack.
**
**
**
**
**
**
**
**
**
