17
© 2025 TRUE Fitness All Rights Reserved.

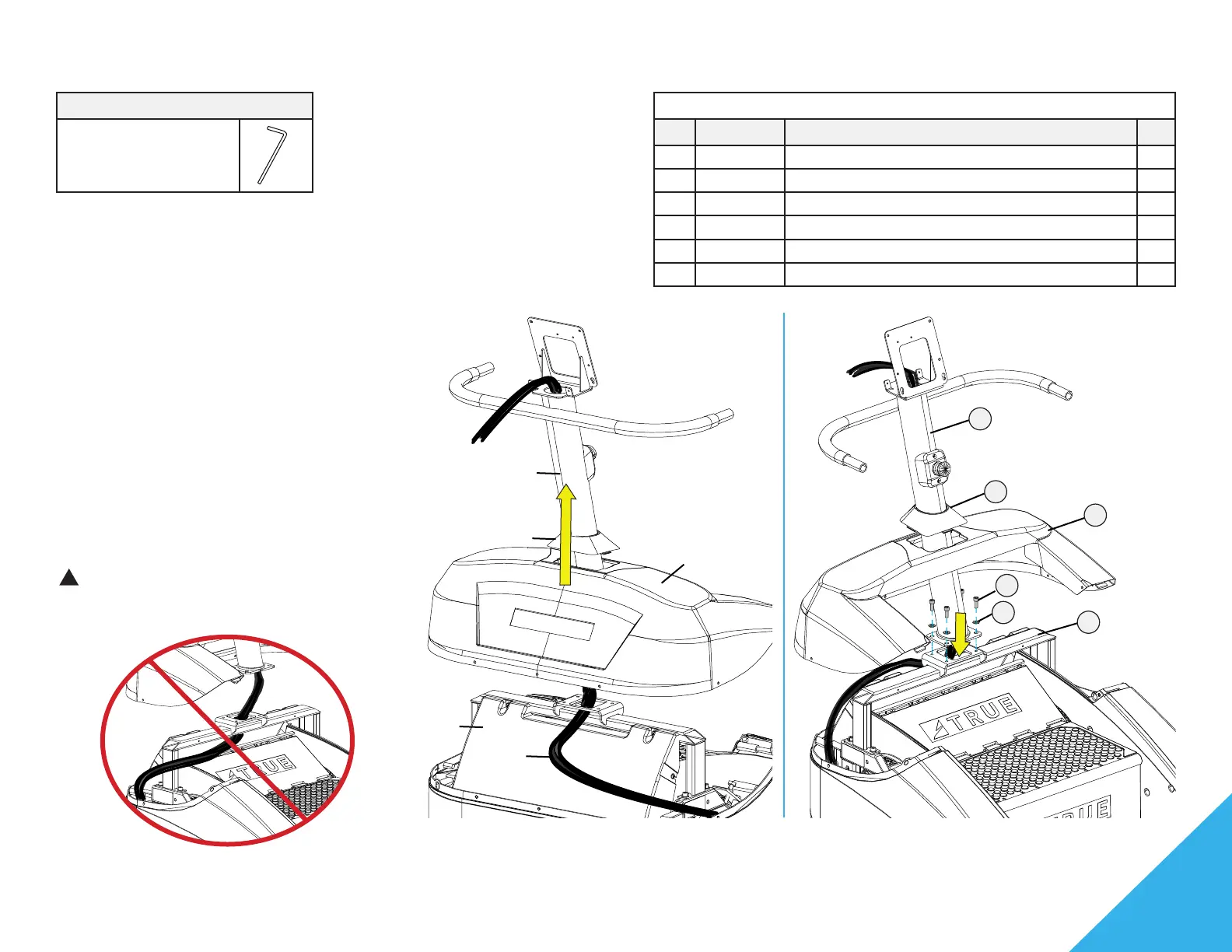

Step 3—Route Cables from Base up Console Mast and Attach Mast to Frame
Parts Used in this Step
Item Part Description Qty
1 VC90003-35 WELDMENT, UPPER FRAME 1
2 VC90090 SHROUD, TOP, WITH DECAL 1
3 VC90112 COVER, MAST BASE 1
4 VC90251-35 SUBASSEMBLY, CONSOLE MAST, INTERNATIONAL 1
5 VC90205 SHCS, M8-1.25 X 20MM, SS 4
6 VC90206 WASHER, FLAT, M8 X 18 OD X 1.5, SS 4
Tools Used in this Step
6mm Allen Wrench
A. Push the mast cover up and then slide the top
shroud onto the console mast.
B. Route the base cables around the inner guard
shroud, up through the hole of the upper
frame, and through the console mast. To pull
the cables through the console mast, use the
provided pull string to attach the base cables
to the inside of the console mast, and then
pull the string/base cables up through the
console mast.
C. Attach the console mast to the upper frame.
Finger tight the four M8 hex bolts, and then
using a 6mm allen wrench, fasten securely.
base
cables
inner
guard
shroud
mast cover
console mast
top shroud
2
1
4
5
6
3
!
CAUTION: Avoid damage to the cables.
NEVER route cables near the steps or by any
moving part of the machine.
NOTE: You will be securing the cables to the frame with zip ties and then fastening the top shroud in step 10.
