15 INCH & 24 INCH INSTALL GUIDE
23
7
/8"
34
1
/4"
21"
42
5
/8"
34
1
/4"
23
1
/8"
23
7
/8"
3
3
/4"
4
1
/8"

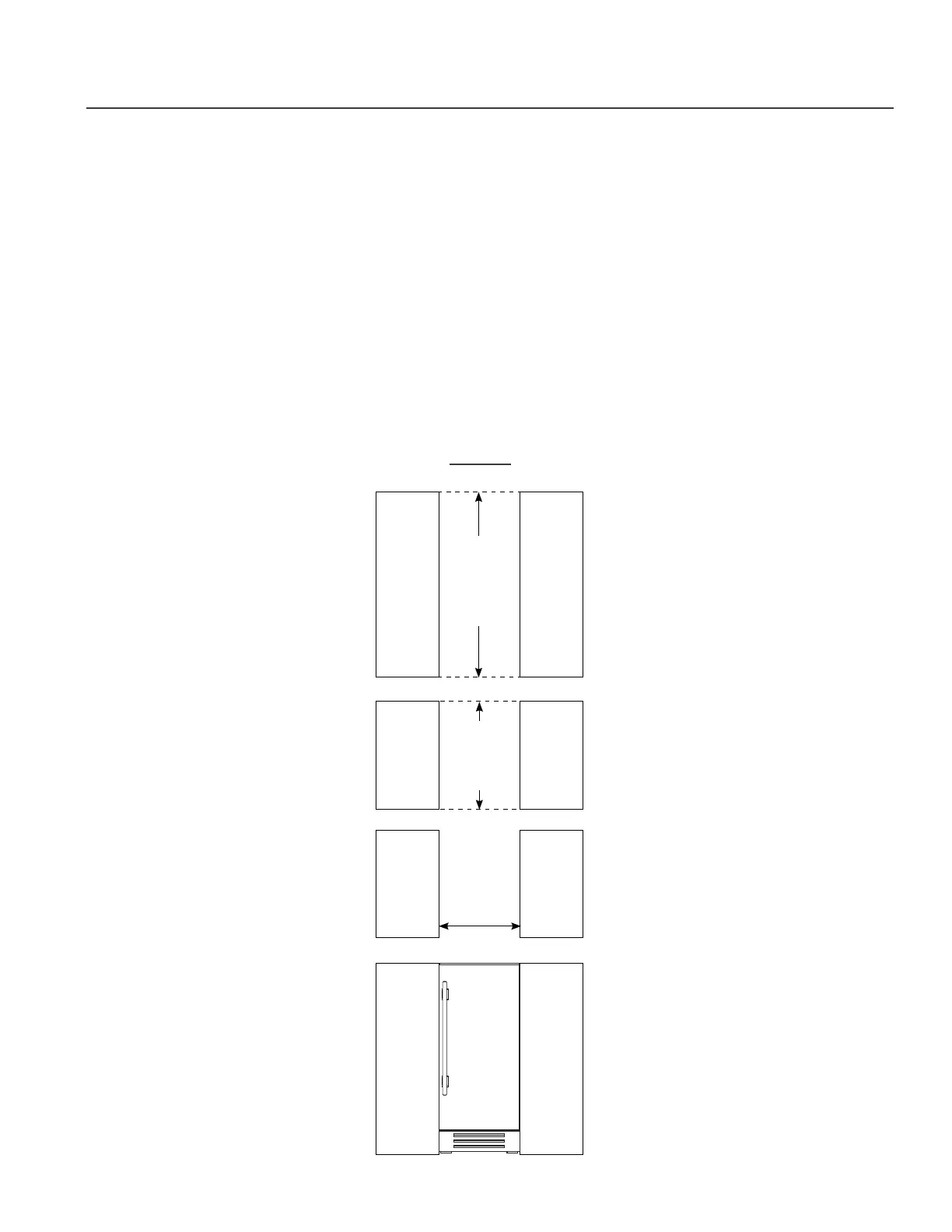

15 INCH INSTALLATION SPECIFICATIONS -
SOLID (OP) AND GLASS FRAMED PANEL (OG)
True’s 15 inch units with Solid and Glass Framed Panels are designed to be inserted into a cabinet opening
or free standing. Below are recommended dimensions for rough opening.
TRUE’S CABINETS ARE UL RATED FOR USE IN OUTDOOR SETTINGS.
IN OUTDOOR LOCATIONS WHERE THE AMBIENT TEMPERATURE REGULARLY EXCEEDS 95˚F, IT IS RECOMMENDED
TO VENT THE REAR OF THE CUT OUT OPENING IN THE AREA SHOWN BELOW FOR OPTIMUM PERFORMANCE.
THE RECOMMENDED CUT OUT SIZE IS 4" X 10".
WHEN INSTALLING TWO TRUE UNITS SIDE BY SIDE, IT IS RECOMMEND TO LEAVE A 5/8” GAP TO BETWEEN
CABINETS TO ENSURE MOISTURE DOES NOT DEVELOP ON AN INDOOR APPLICATION. FOAM PADS CAN BE
PURCHASED FROM OUR PARTS DEPARTMENT AT 844-849-6226 OR TRUERESIDENTIALPARTS@TRUEMFG.COM.
IF INSTALLING FOAM PADS WE RECOMMEND A PAD IS PUT ON EACH OF THE UNITS JOINED TOGETHER.
Rough
Opening
HEIGHT
34
1/2
"
Rough
Opening
DEPTH
24"
Front
view of
unit
between
cabinets
Rough
Opening
WIDTH
15"
15 INCH
