CHILLER HOSE (TSSU-27-12M-C MODELS ONLY)
KIT CONTENTS
• Hose Cleaning Brush
TOOLS REQUIRED
• Slotted Screwdriver
• Needle Nose Pliers
• Hex-Head Nut Driver
WARNING: POWER MUST BE DISCONNECTED
BEFORE BEGINNING THIS PROCEDURE.

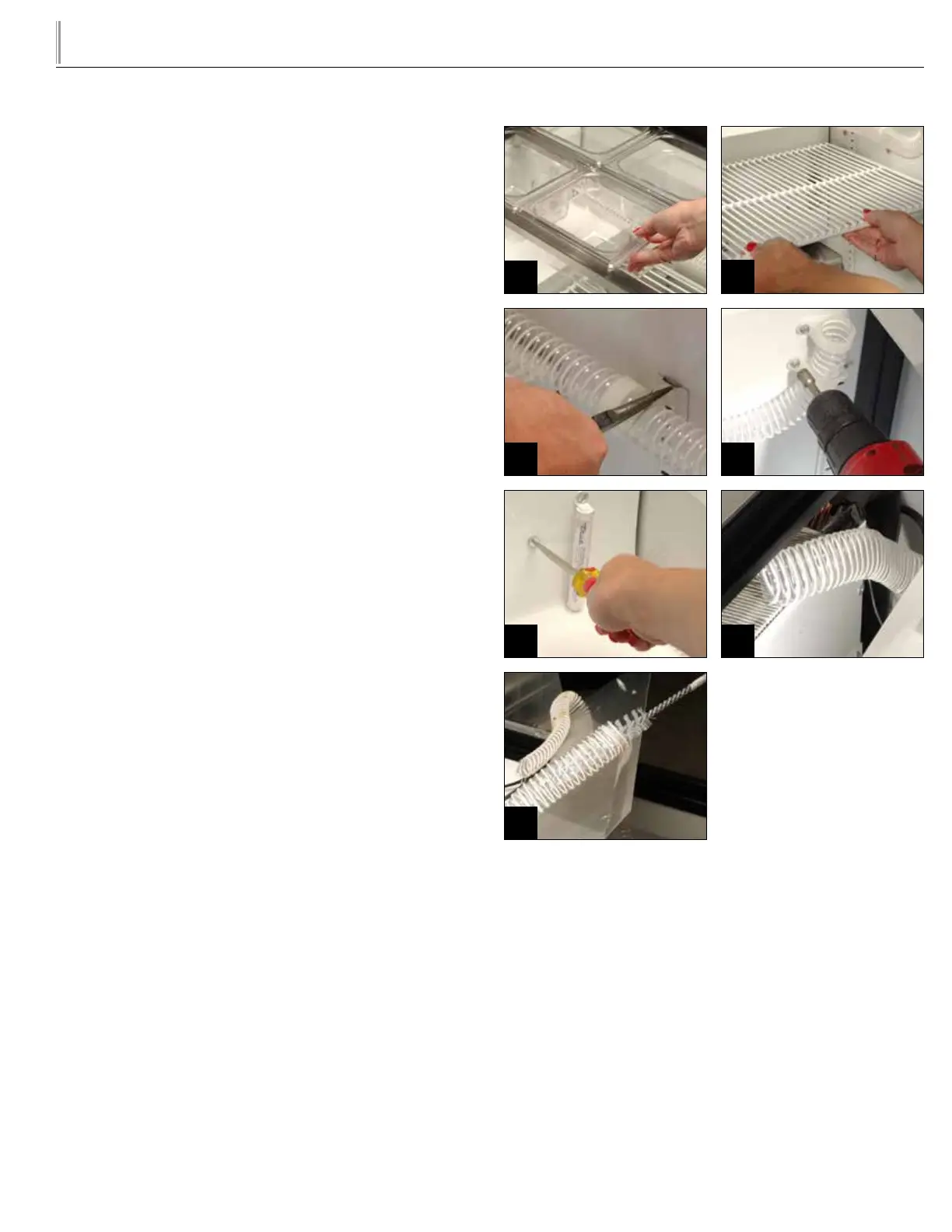

A. Remove the condiment pans. (Fig, 1)
B. Remove the shelving from the unit. (Fig 2)
C. Using needle-nosed pliers remove the right or left pilaster as
needed. (This will provide clearance to pull right or left housing
away from evaporator). (Fig. 3)
D. Using a hex-head nut remover, remove right or left C-clamps
as needed from chiller hose. (Remove clamps from both ends
of the assembly). (Fig. 4)
E. Back off four slotted thumb screws and remove evaporator
housing. (Fig. 5)
NOTE: Note the proper position of the flexible tubing on top of
evaporator. (See Fig. 6). Hose will need to be repositioned in the
same area to ensure proper conditioned air circulation.
F. Gently pull housing from the right or left side and work forward
in order to access the flexible hose. (Fig.6)
CAUTION: Gloves are recommended to avoid contact with pos-
sible sharp edges.
G. Rout the bottle brush through the rear of the flexible hose and
push contents forward. (Fig. 7)
H. Reverse the procedures as outlined above.
NOTE: Replace flexible hose in the original position as indicated
in Fig. 6. Failure to replace properly will result in compromised unit
operation.
