6. Rotate the hinge bracket (see fig. 6), and then secure the
cartridge hinge assembly to the opposite side of the door
NOTICE ›
Required socket varies by model size. See the
required tools list for details. Take care to not snap the upper
hinge bushing (fig. 2). See fig. 7 Always angle the hinge bracket
towards the center of the cabinet to keep tension on the
spring. See fig. 8.
7. With a putty knife, pry the cap and plastic bushing from the
top of the door and swap their positions.
8. With a 1/4” socket, move the top hinge to the opposite side of
the cabinet. See fig. 9
NOTICE ›
Do not forget the hinge's washers.
9. Install the Door
a. Position the door.
NOTICE ›
Take care to not snap the upper hinge bushing.
See fig. 10.
b. Secure the lower hinge bracket to the unit.
NOTICE ›
Do not forget the hinge’s washers. See fig. 11.
Check the door alignment while securing the hinge. Adjust
the hinges as needed. To adjust the upper hinge, True
recommends using a 1/4" combo wrench.
Maintenance & Servicing (cont.)
Reversing Door
(TUC/TWT-24/24F & TSSU/TUC/TWT-27/27F) (cont.)

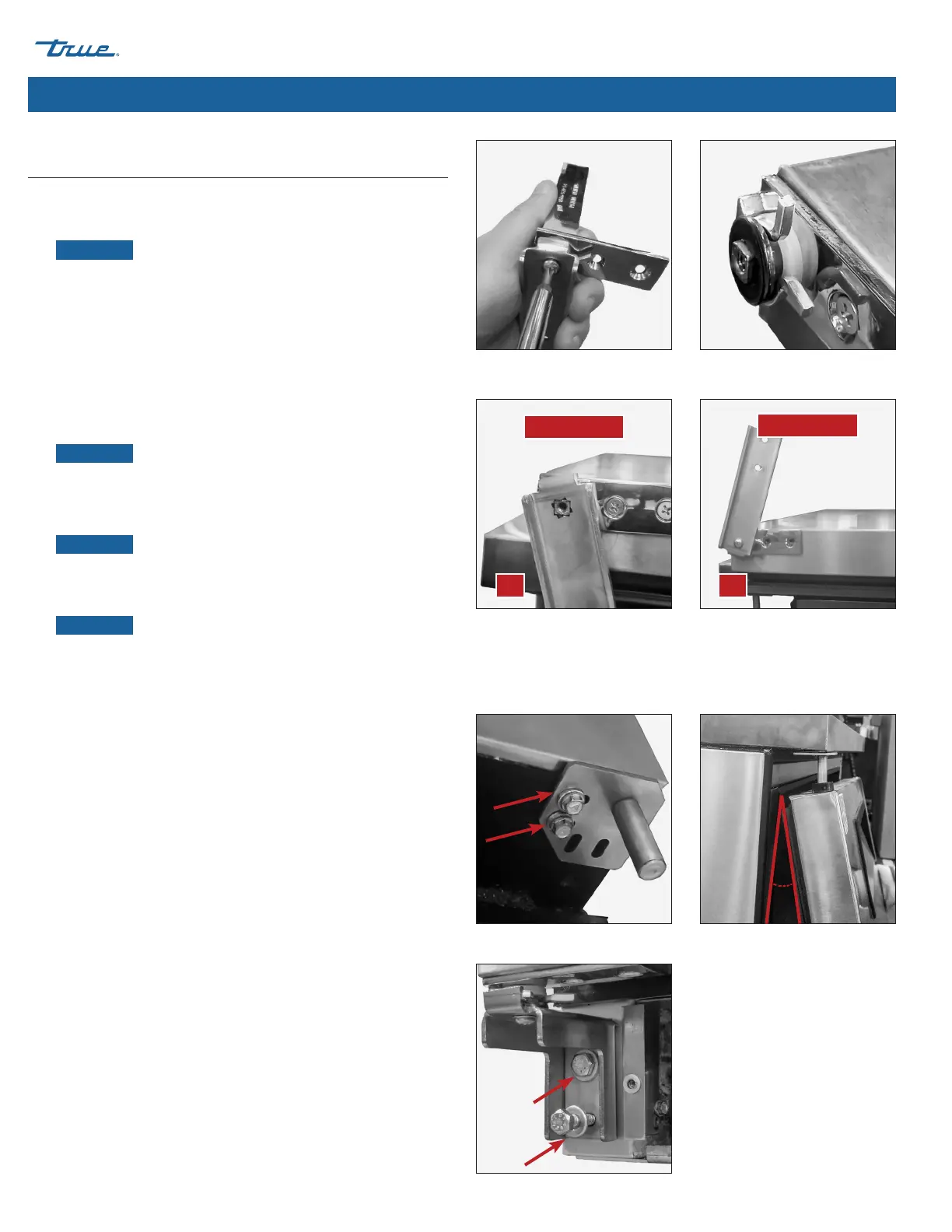

Fig. 6. Remove the hinge bracket from
the cartridge spring and then rotate it.
Fig. 8. Images show the front of the door facing up.
A: Correct; hinge bracket has been rotated and angles inward towards the cabinet
center; star-shaped hole keeps the correct spring tension.
B: Incorrect; hinge bracket has not been rotated and angles outward.
Fig. 7. Keep the washers in their
original order.
Fig. 9. Do not forget the washers.
Fig. 10. If needed, only use shallow
angles when positioning the door.
Fig. 11. Do not forget the washers.
Incorrect
Correct
B
A
