Cabinet Adjustments, Servicing & Component Replacement (cont.)

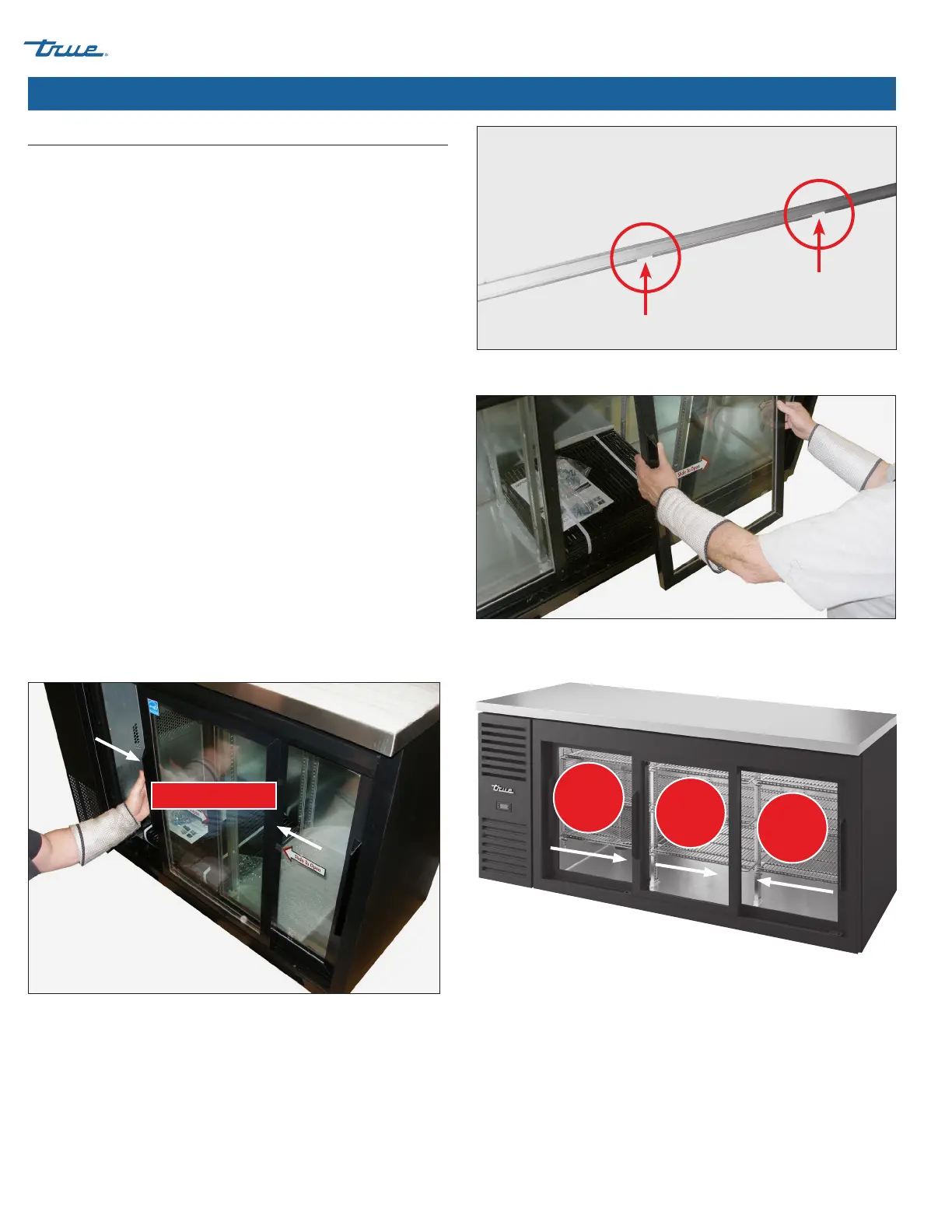

CENTERED DOOR
Fig. 1. Door channel openings.
Fig. 3. Two-Door Units: Position the front door at the center of the cabinet.
Fig. 4. Three-Door Units: Move the doors as directed to remove doors from channel.
Fig. 2. Carefully remove the door.
Slide Door Removal
DO NOT use the side latch before removing the slide door. The
tension on the door cord is needed to execute these operation
instructions.
The doors cannot be removed unless they are positioned as
described in the instructions below.
Procedure
1. Position the doors as described below. To remove, lift the
positioned door. Then, tilt the top of the door back until the
rollers exit the door channel. Then, swing the bottom of the
door out of the bottom channel. See figs. 1 and 2.
Two-Door Units
Center the front door on the cabinet opening. See fig. 3.
Three-Door Units See fig. 4
• Center Door: Slide 9” (228.6 mm) right
• Right Door: Slide 14” (355.6 mm) left
• Left Door: Slide 9-1/2” (241.3 mm) right
LEFT
9-1/2"
241.3
mm
CENTER
9"
228.6
mm
RIGHT
14"
355.6
mm
