TBR
|
TDR SERIES www.truemfg.com
TEC_TM_043 | REV. F | EN03/2/2023 Page 36 of 40 P#803294
Cabinet Adjustments, Servicing & Component Replacement (cont.)
Swing Door Lock & Cam Replacement
The door must be open prior to proceeding.
Procedure: Removing Components
1. Insert the master key (included with the replacement lock kit)
into the lock cylinder.
2. Turn the key and pull to remove the cylinder from the lock
barrel.
3. Slide the lock cam/bar out of the bottom of the lock barrel.
Procedure: Installing Components
1. Slide the lock cam/bar into the bottom of the lock barrel.
2. Push the lock cylinder with master key into the lock barrel.
NOTE: Ensure the pin of the back of the lock cylinder aligns
with the notch in the lock cam/bar. See fig. 3.

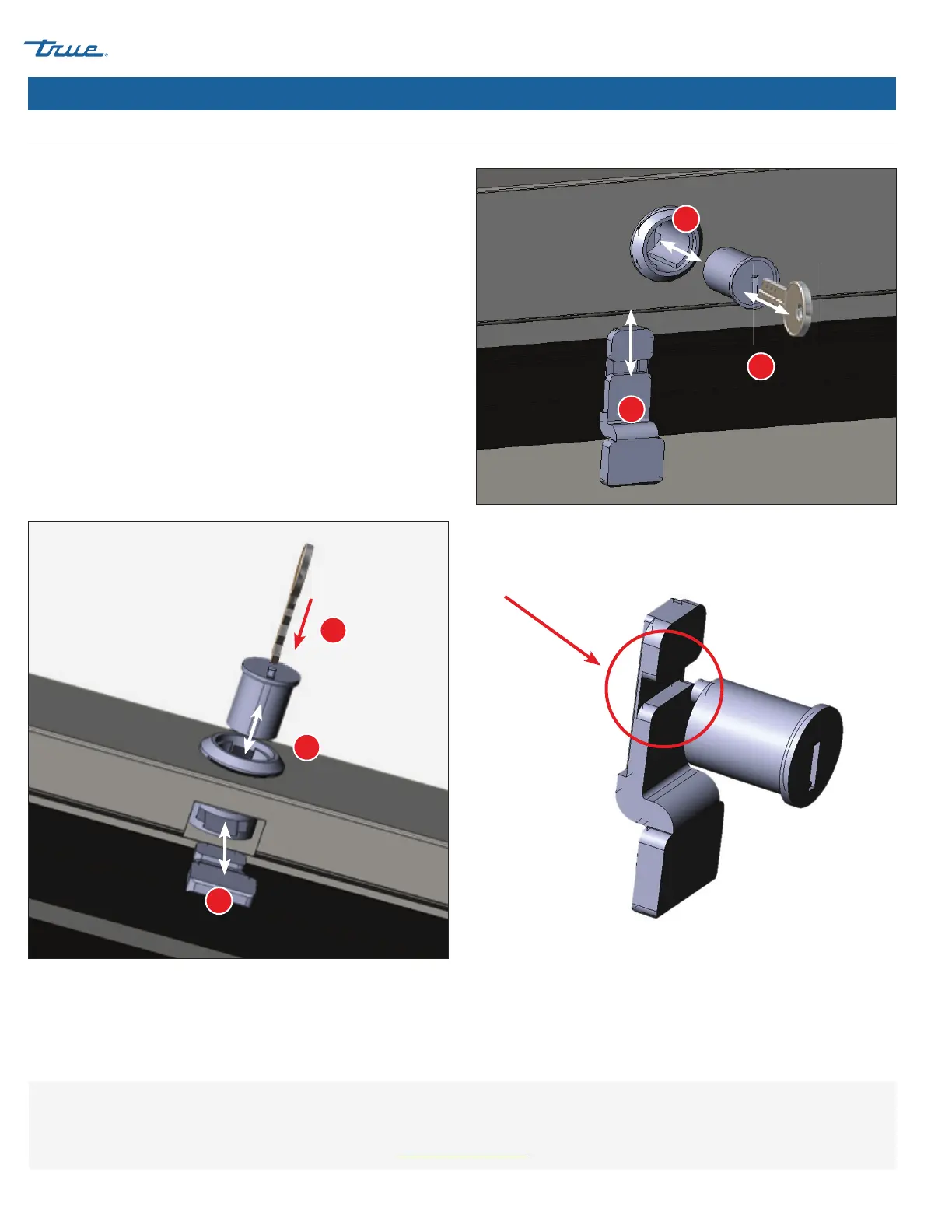

Fig. 1. Front view of removing/installing components.
Fig. 2. Bottom view of removing/installing components. Fig. 3. Lock cam/bar notch
1
1
3
3
2
2
FOR MORE INFORMATION
For additional maintenance instruction, please visit the media center at
www.truemfg.com
