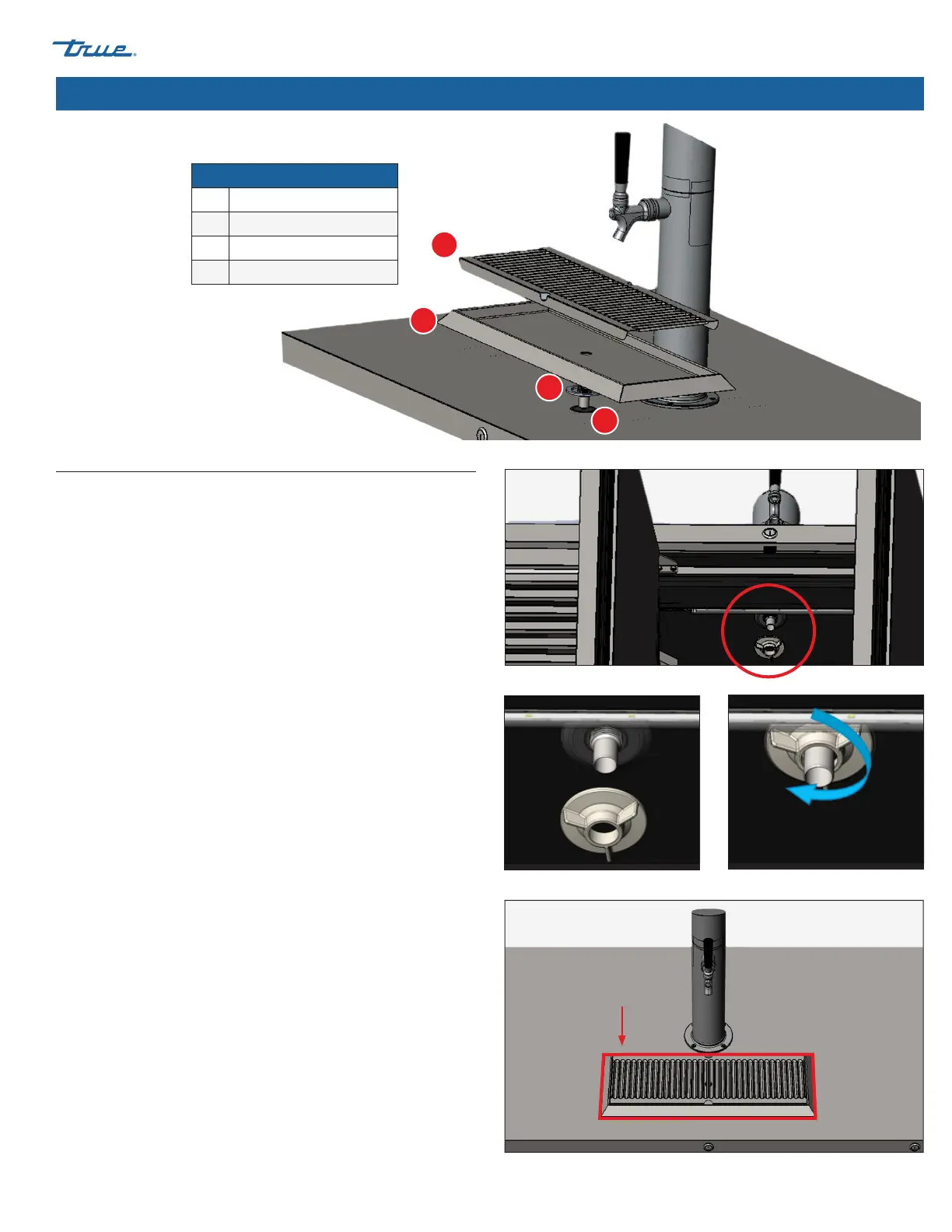

Cabinet Setup (cont.)
Draft Spill Tray
Procedure
1. Place the tray gasket over the spill tray tube.
2. Slide the spill tray tube into the spill tray access port.
3. Carefully position the spill tray on the countertop.
4. From the inside of the cabinet, thread the spill tray tube nut
onto the tube securing the spill tray to the countertop. See
figs. 1–3.
NOTE: Hand tighten only.
5. Place the spill tray grate into the spill tray.
6. Place a 3/4" (19 mm) i.d. hose onto the spill tray tube.
7. With the draft spill tray positioned and secured, apply a
bead of RTV Silicone (provided) to seal the spill tray to the
countertop. See fig. 4.
Parts Key
A Spill Tray Grate
B Spill Tray
C Tray Gasket
D Spill Tray Access Port
Fig. 1. Spill tray tube nut installation location.
Fig. 2. Thread the spill tray tube nut.
Fig. 3. Hand-tighten only.
Fig. 4. Apply silicone around the spill tray.
A
B
C
D
