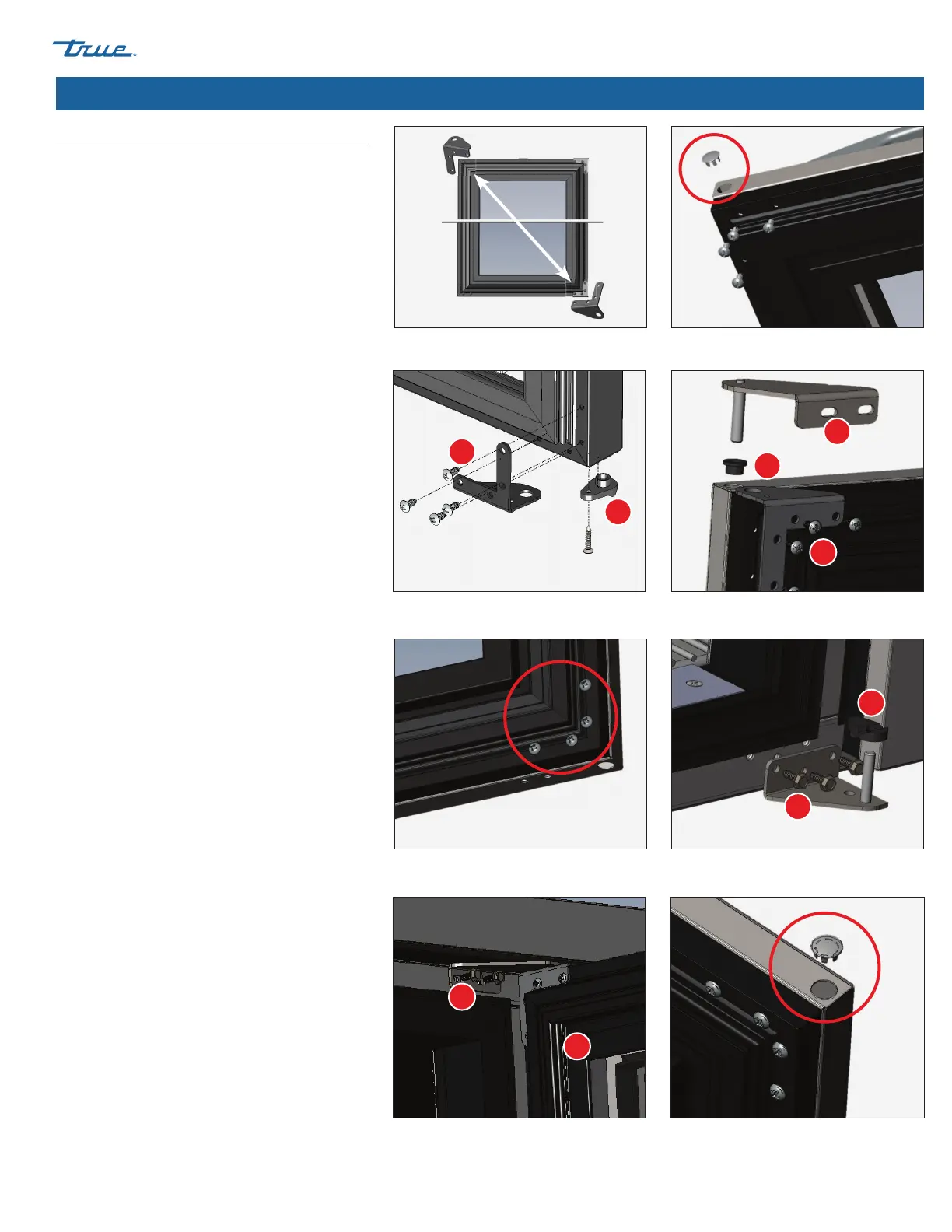

Cabinet Adjustments, Servicing & Component Replacement (cont.)
4. Remove all door hardware except the door
handle (see figs. 4a and 4b). Set the door
brackets aside.
NOTE: The door brackets are the only
hardware that will be relocated. All other
hardware is new and included in the kit.
Door brackets are reversible to the opposite
diagonal corner of the door. See fig. 5.
5. Remove any door plugs and all screws on
the opposite side of the original door hinge
placement. See fig. 6.
6. Install all hardware into the door's new
component locations.
Door Bottom (see fig. 7a)
a. Install the bottom door bracket.
b. Install the door cam riser.
Door Top (see fig. 7b)
a. Install the top door bracket.
b. Install the top hinge bushing.
c. Install top hinge bracket and shaft.
7. Insert the screws into the holes opposite their
original location. See fig. 8.
8. Install the bottom hinge bracket and shaft to
the cabinet. See fig. 9.
a. Install the door cam base to hinge shaft.
b. Lift door onto bottom door hinge bracket
and shaft.
9. Secure the top hinge bracket to the cabinet.
See fig. 10.
NOTE: Top hinge bracket is slotted for door
alignment.
10. Install plug in door in top of door (see fig. 11).
Verify correct door operation.
Fig. 6. The current bottom door bracket will be
the new top door bracket.
Fig. 5. Remove the door plugs and remaining
screws.
Fig. 7a. Bottom hinge component assembly. Fig. 7b. Top hinge component assembly.
Fig. 8. Move the hardware from step 5 to the side
opposite its original location.
Fig. 9. Install the bottom hinge pin in its new
location.
Fig. 10. Install the top hinge and the door. Fi g. 11. Install the plug.
1
1
1
1
3
2
2
2
2
Reverse Door Swing (cont.)
