TBR
|
TDR SERIES
TEC_TM_043 | REV. F | EN
03/2/2023
Page 19 of 40
www.truemfg.com

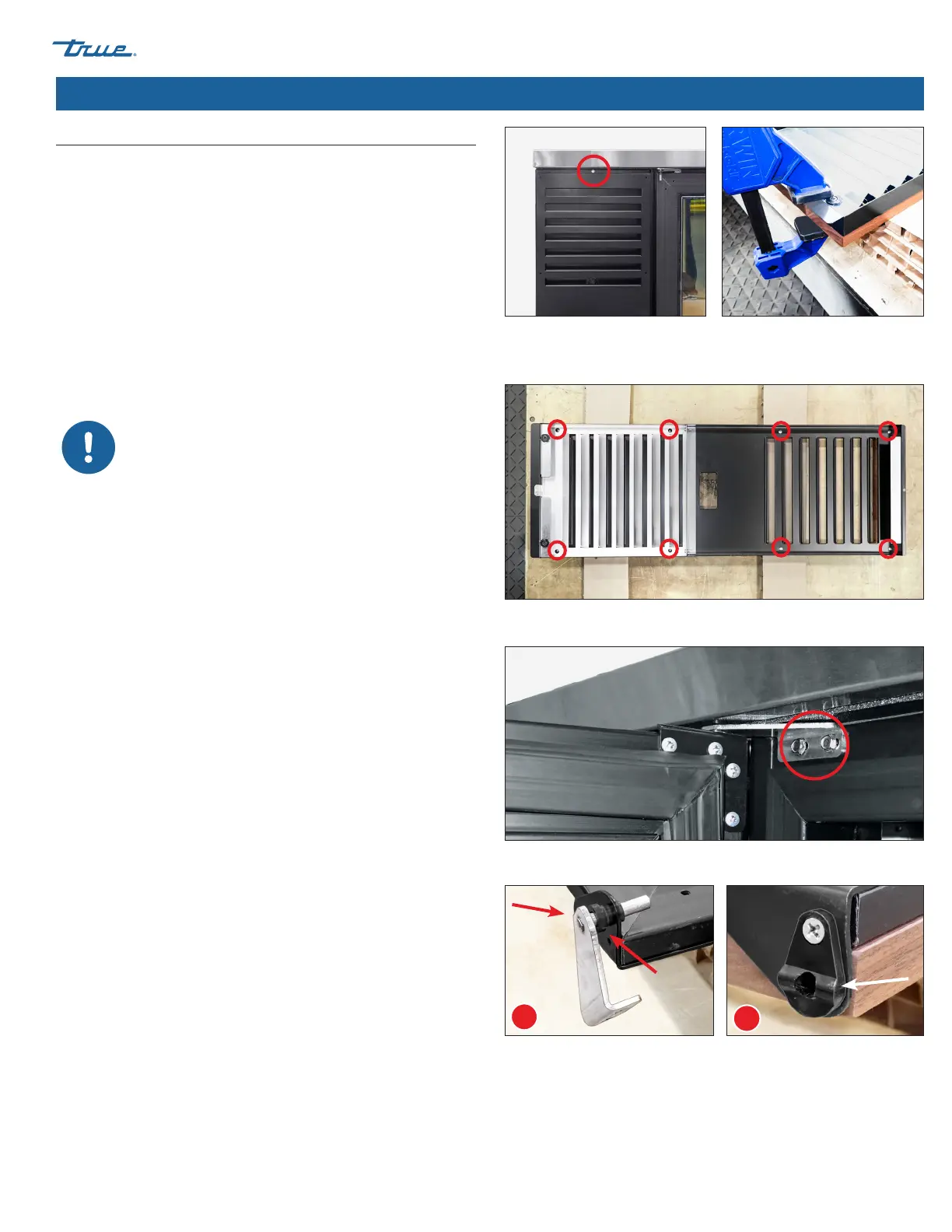

Cabinet Setup (cont.)
Required Tool(s)
• Surface Protection*
• Phillips Screwdriver
• 2+ Clamps [≥2” (50.8 mm)]
• 5/16" Socketwrench
• 5/8" (15.8751 mm) Screws**
• Tape Measure
• Marking Utensil
• Tape
• 3/8" Drill Bit
• 17/64" Drill Bit
• Drill
TAKE CARE TO NOT DAMAGE THE PANEL FINISH!
This instruction demonstrates using cardboard from the
unit’s exterior packaging for surface protection.
Recommended panel thickness is 3/4" (19.05 mm).
Fig. 1. Pull the top of the cover forward
and then lift.
Grill Overlay Installation
Procedure
1. Carefully lay the grill overlay panel facedown on a protected
surface.
2. With a Phillips screwdriver, remove the cabinet grill. See fig. 1.
3. Place the grill facedown on the overlay panel. Then, center the
grill and overlay. See fig. 2.
NOTE: Center the cabinet grill and overlay panel at the
corners.
4. Clamp the grill and overlay. See fig. 2.
NOTE: If the clamp jaws are not padded, insert padding
between the clamp and the overlay to protect the panel’s
finish.
5. Fasten the overlay to the grill. See fig. 3.
NOTE: Be sure the mounting screws are shorter than the
overlay panel thickness.
6. Remove the clamps, and then reinstall the grill.
Fig. 2. Center the overlay and grill at the
corners. The panel is slightly larger than
the grill.
Fig. 3. Cabinet grill predrilled hole locations.
Fig. 4. Carefully remove the door from the unit.
*Cardboard, moving blanket, foam padding, etc.
** Required quantities vary by application. Be sure the screws are shorter
than the panel thickness.
Fig. 5. Remove the top hinge pin & bushing (A) and the door cam riser (B) from the
hinge brackets. Do not remove the hinge brackets.
A
B
Overlay Panel Installation
Overlay units are custom order.
Glass & Solid Door Overlay Installation
Procedure
1. Carefully lay the door overlay panel facedown on a protected
surface.
2. With a 5/16" socketwrench, remove the cabinet door. See fig. 4.
3. Remove the door gasket, top hinge pin & bushing (fig. 5a), and
door cam riser (fig. 5b).
4. Place the door facedown on the overlay. Then, center the door
and overlay. See fig. 6.
NOTE: Center the door and overlay panel at the corners.
