7
TRUE
underbar refrigeration
www
.truemfg.com
HORIZONTAL BOTTLE COOLER BIN DIVIDER
INSTALLATION:
Horizontal bottle coolers are shipped with bin dividers in place. If it is
necessary to adjust spacing the following procedure is recommended.
A. Dividers are spring loaded - push divider towards rear of the
cooler to release from front grommeted holes.
B. Lineup divider front pegs with desired holes and punch through
interior tape lining of both top and bottom holes - bottom peg
first (front holes are taped over to improve insulation values).
C. Remove divider from the front holes and line up regular and
spring loaded rear pegs with holes in line with those desired in
front. Insert as far as possible and maneuver front pegs in place.

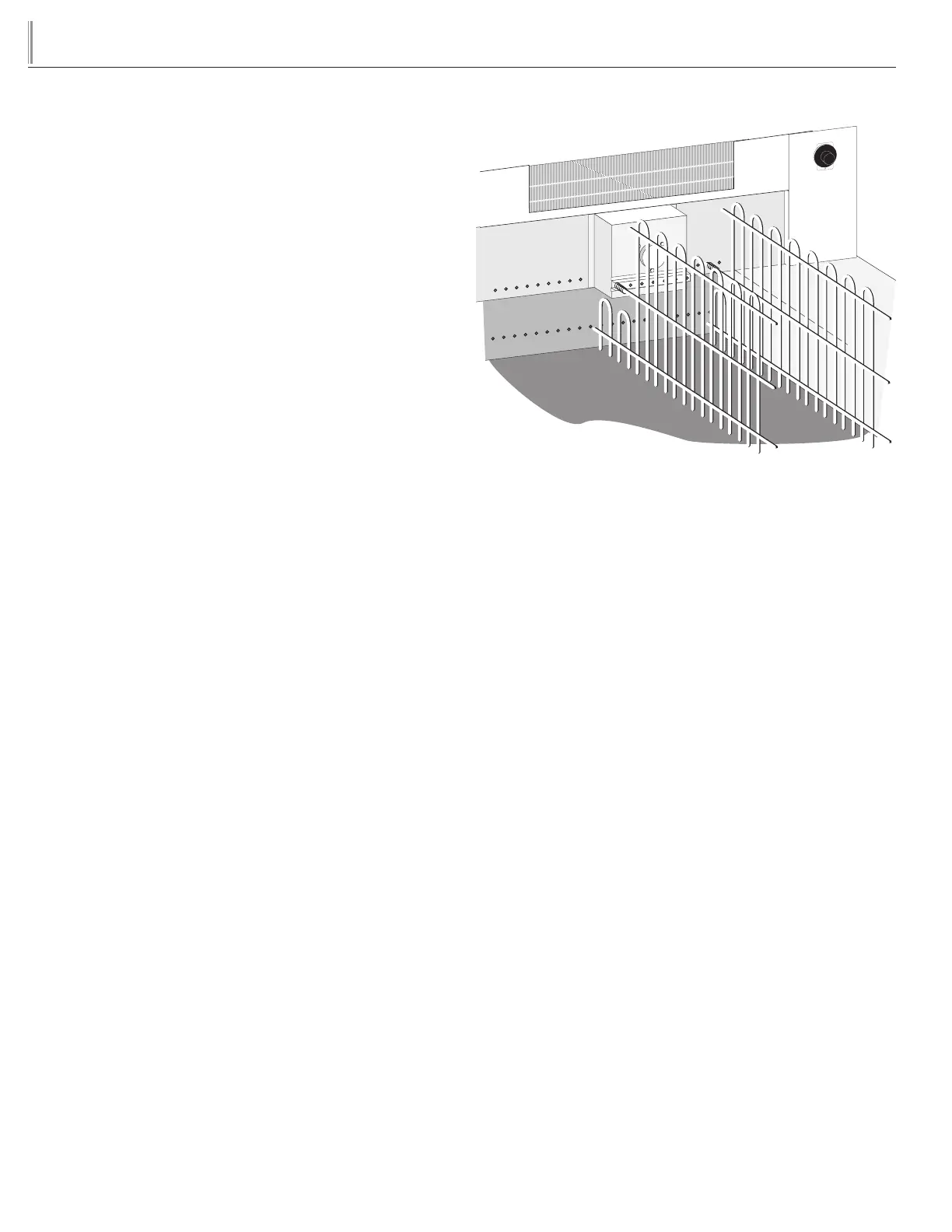

BIN DIVIDER INSTALLATION
NOTE: Divider positioned in front of mechanical box requires
specific notch cut out.
O
F
F
9
8
7
6
5
4
3
2
1
